#1
09-08-2006, 03:39 PM
|
|||
|
|||
Needed - Speedo Adapter P/N 6476736
I am looking for an AC Speedo Adapter P/N 6476736 for my 69 Camaro w/4.10 gears, Muncie and F70-14 tires. Any out there? Thanks,
Paul
__________________
70 Camaro LA Z-28 03B Citrus Green LT-1 M-40 3.73's 69 Camaro X-77 Z-28 10C Cortez Silver M-21 3.73's Deluxe Project X - SOLD 69 Camaro X-77 Z-28 01B Garnet Red w/Black top, M-20 3.73 Deluxe Houndstooth
|
|
#2
09-08-2006, 06:35 PM
|
||||
|
||||
|
Re: Needed - Speedo Adapter P/N 6476736
Paul... were they made by A/C or Stewart Warner?
I have seen many stewart warner ones on ebay... sometimes they are sold at a more than fair price.
__________________
~JAG~ NCRS#65120 68 GTO HO 4 spd Alpine Blue /Parchment 2 owner car #21783 71 Corvette LT1 45k miles Orig paint - Brandshatch Green - National Top Flight - last known 71 LT1 built. 71 Corvette LT1 42k miles Original paint - Black - black leather - only black LT1 known to exist. NUMEROUS Lemans blue Camaros, Monza Red and Daytona Yellow Corvettes & a Chevelle or two... Survivors, restored cars, & other photos https://picasaweb.google.com/lh/myphotos
|
|
#3
09-08-2006, 08:29 PM
|
|||
|
|||
|
Re: Needed - Speedo Adapter P/N 6476736
I think this one is made by AC and is the 90 degree design. The Stewart Warner box is an inline offset design.
Paul
__________________
70 Camaro LA Z-28 03B Citrus Green LT-1 M-40 3.73's 69 Camaro X-77 Z-28 10C Cortez Silver M-21 3.73's Deluxe Project X - SOLD 69 Camaro X-77 Z-28 01B Garnet Red w/Black top, M-20 3.73 Deluxe Houndstooth
|
|
#4
09-09-2006, 01:36 AM
|
|||
|
|||
|
Re: Needed - Speedo Adapter P/N 6476736
Are you looking for a 90* adaptor or straight thru????

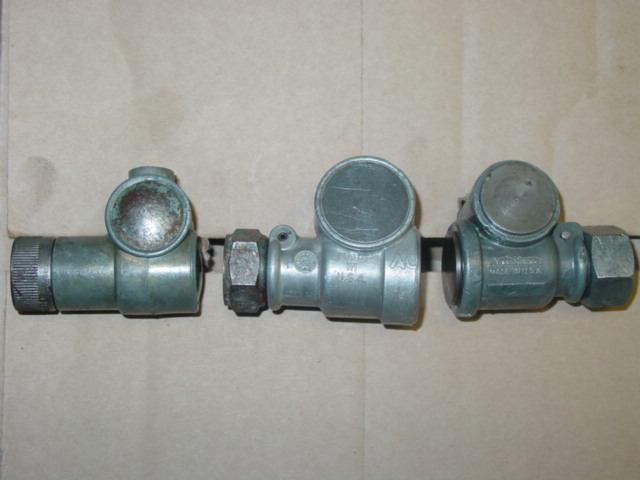

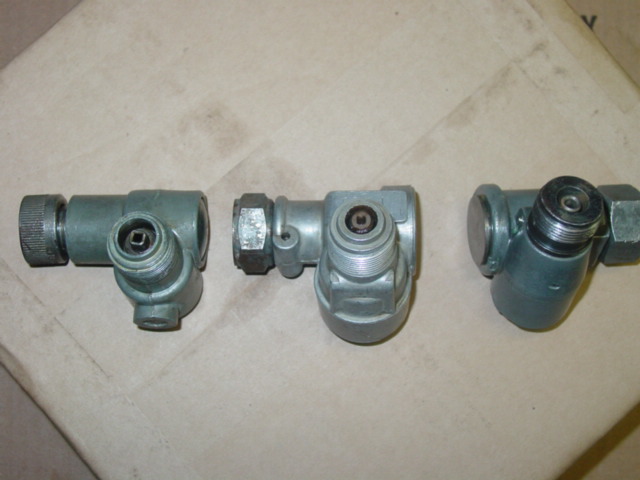

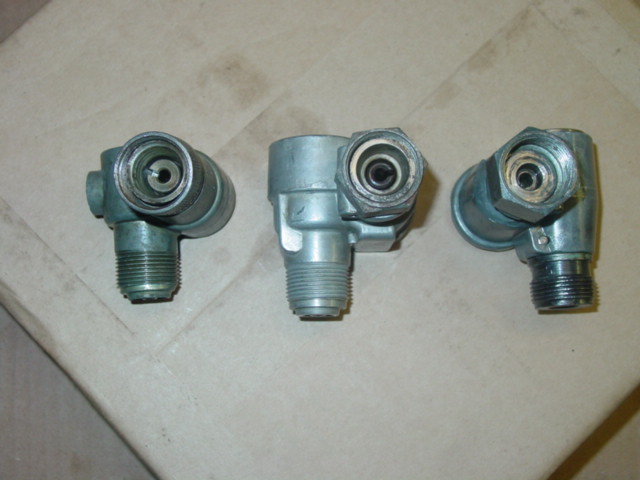

Are you looking for one that changes speedo ratio or is 1.000 to 1.000???? Are you looking for AC or Stuart-Warner??? I have several of each that I just thru in the solvent tank to clean up, will get some pictures later tonight or tomorrow... Crash
|
|
#5
09-09-2006, 06:28 AM
|
|||
|
|||
|
Re: Needed - Speedo Adapter P/N 6476736
I believe it is the 90 degree AC adapter stamped with P/N 6476736. The ratio is something like .844 or .744:1 reducing the speed from the driven gear on the tranny to the speedo cable.
Paul
__________________
70 Camaro LA Z-28 03B Citrus Green LT-1 M-40 3.73's 69 Camaro X-77 Z-28 10C Cortez Silver M-21 3.73's Deluxe Project X - SOLD 69 Camaro X-77 Z-28 01B Garnet Red w/Black top, M-20 3.73 Deluxe Houndstooth
|
|
#6
09-09-2006, 06:07 PM
|
|||
|
|||
|
Re: Needed - Speedo Adapter P/N 6476736
This is the exact one I need. Thanks,
 Paul
__________________
70 Camaro LA Z-28 03B Citrus Green LT-1 M-40 3.73's 69 Camaro X-77 Z-28 10C Cortez Silver M-21 3.73's Deluxe Project X - SOLD 69 Camaro X-77 Z-28 01B Garnet Red w/Black top, M-20 3.73 Deluxe Houndstooth
|
|
#7
09-09-2006, 08:51 PM
|
|||
|
|||
|
Re: Needed - Speedo Adapter P/N 6476736
Paul, I have 3 of that style, but the closest I get is 6476735 with a ratio of 1: .824 ...
I don't believe these are AC parts, I have AC ones with AC cast into the aluminum housing,,, but I could be wrong... Crash
|
|
#8
09-09-2006, 08:57 PM
|
|||
|
|||
|
Re: Needed - Speedo Adapter P/N 6476736
Check with this seller "bad_._juju" on eBay -- he's got a couple of speedo adapters listed and probably has more "in the back". His real name is Roger Kennedy from Puyallup WA, has tons of neat stuff, mostly Camaro and vintage speed.
COPO Yenko Stewart Warner Speedo Gear Reduction Box
|
|
|
|
