For sale: One Each GM Restored-Factory installed Camaro Rear License Plate Bumper Light assembly.

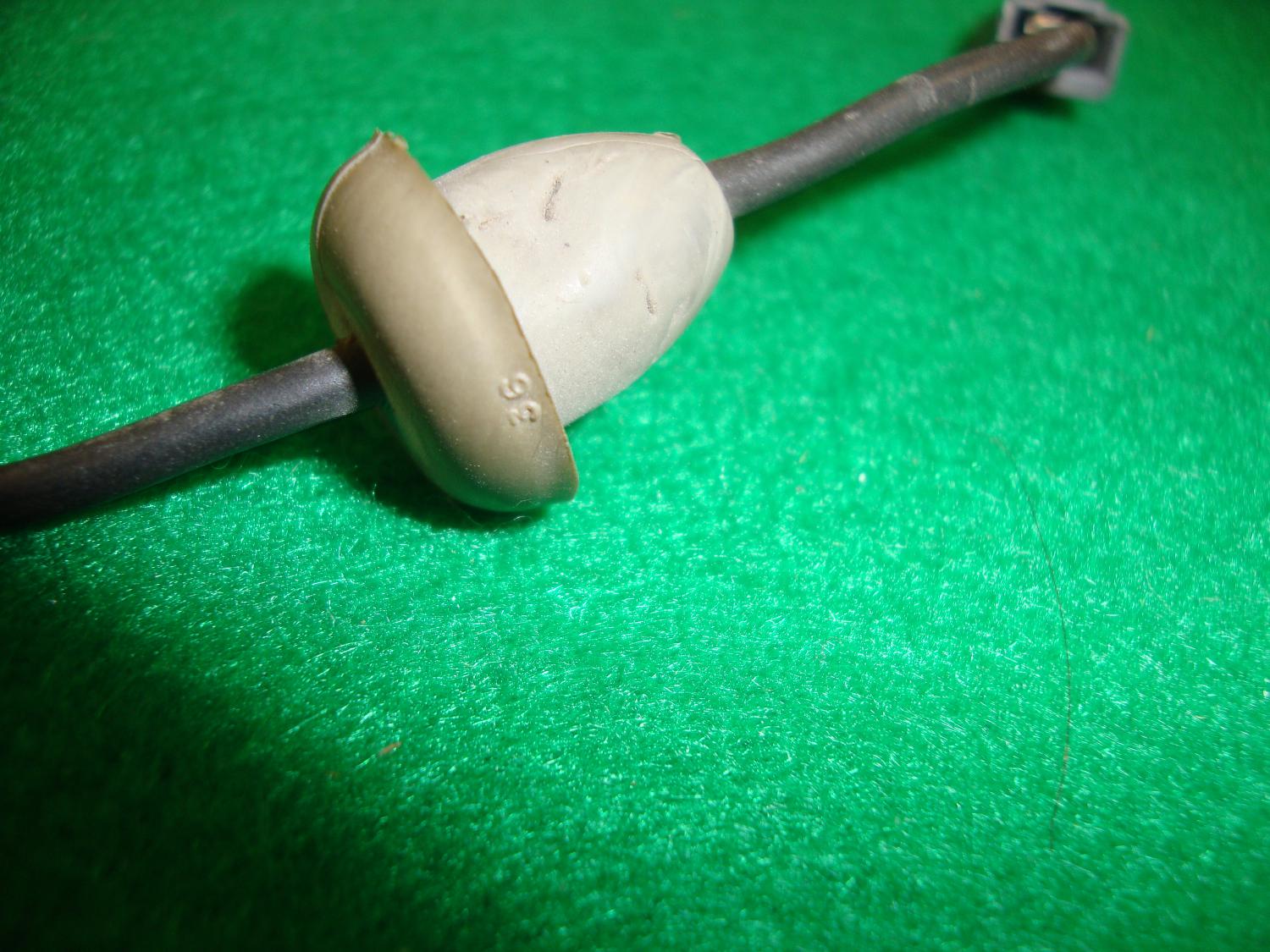

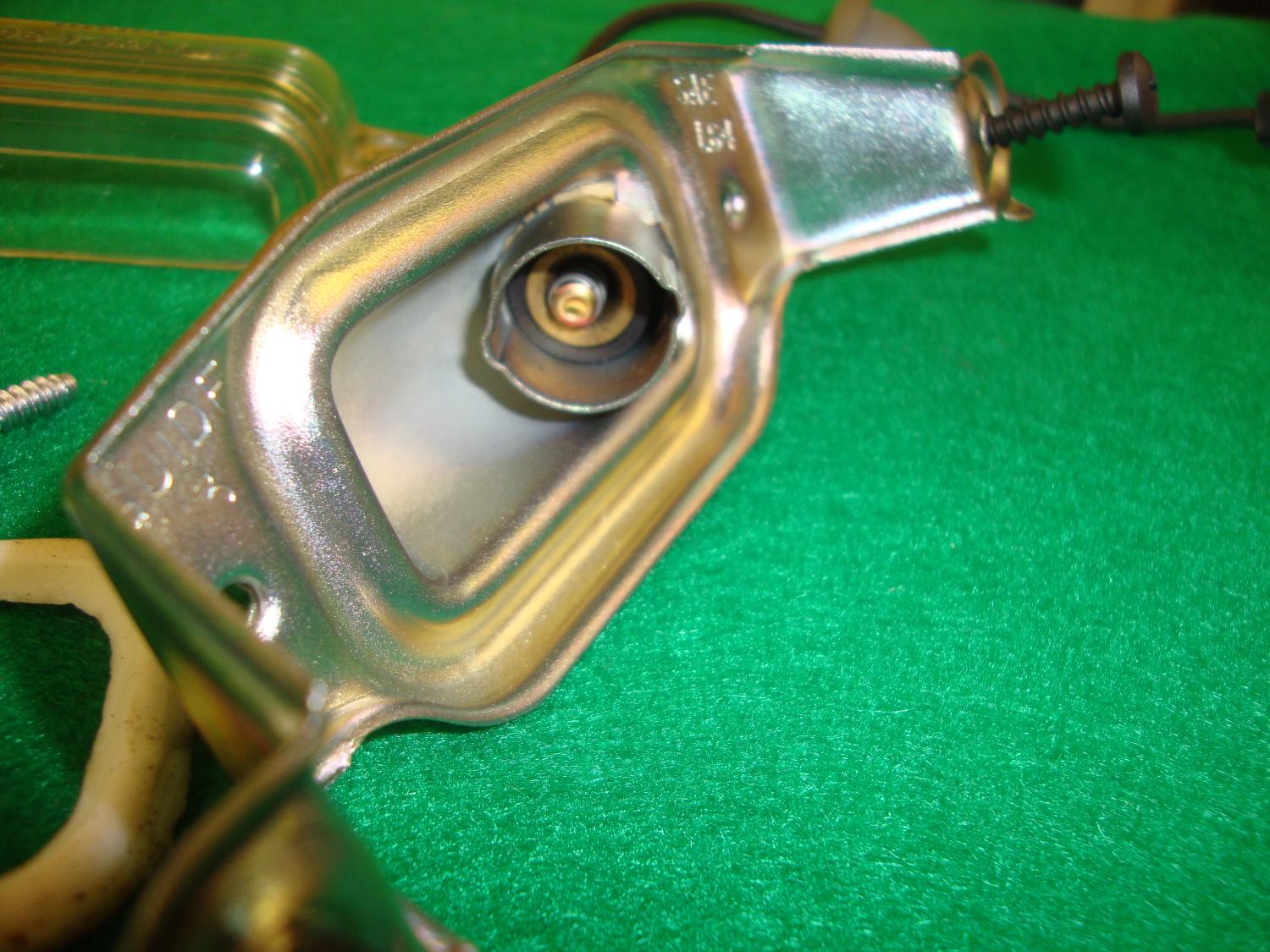

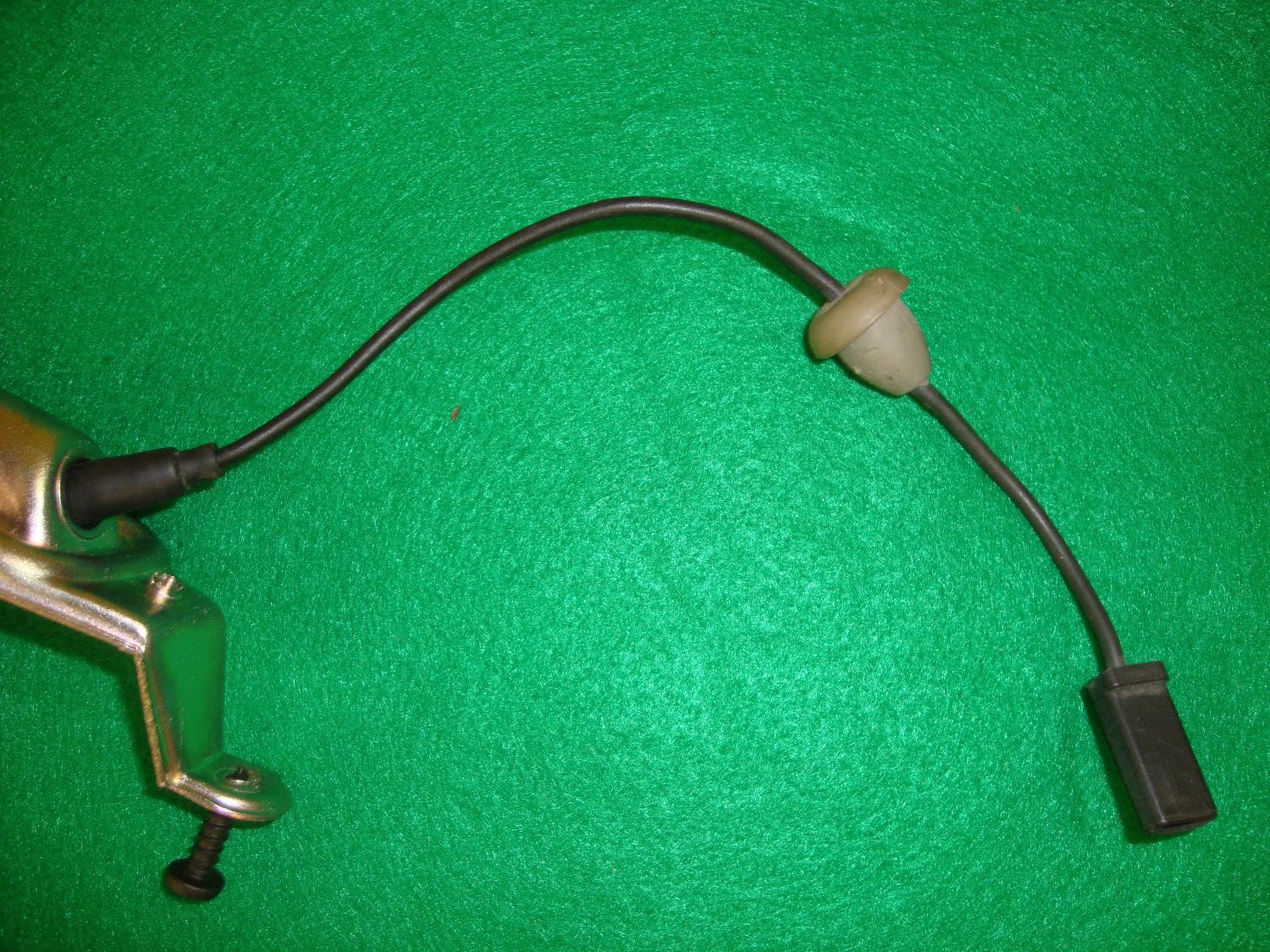

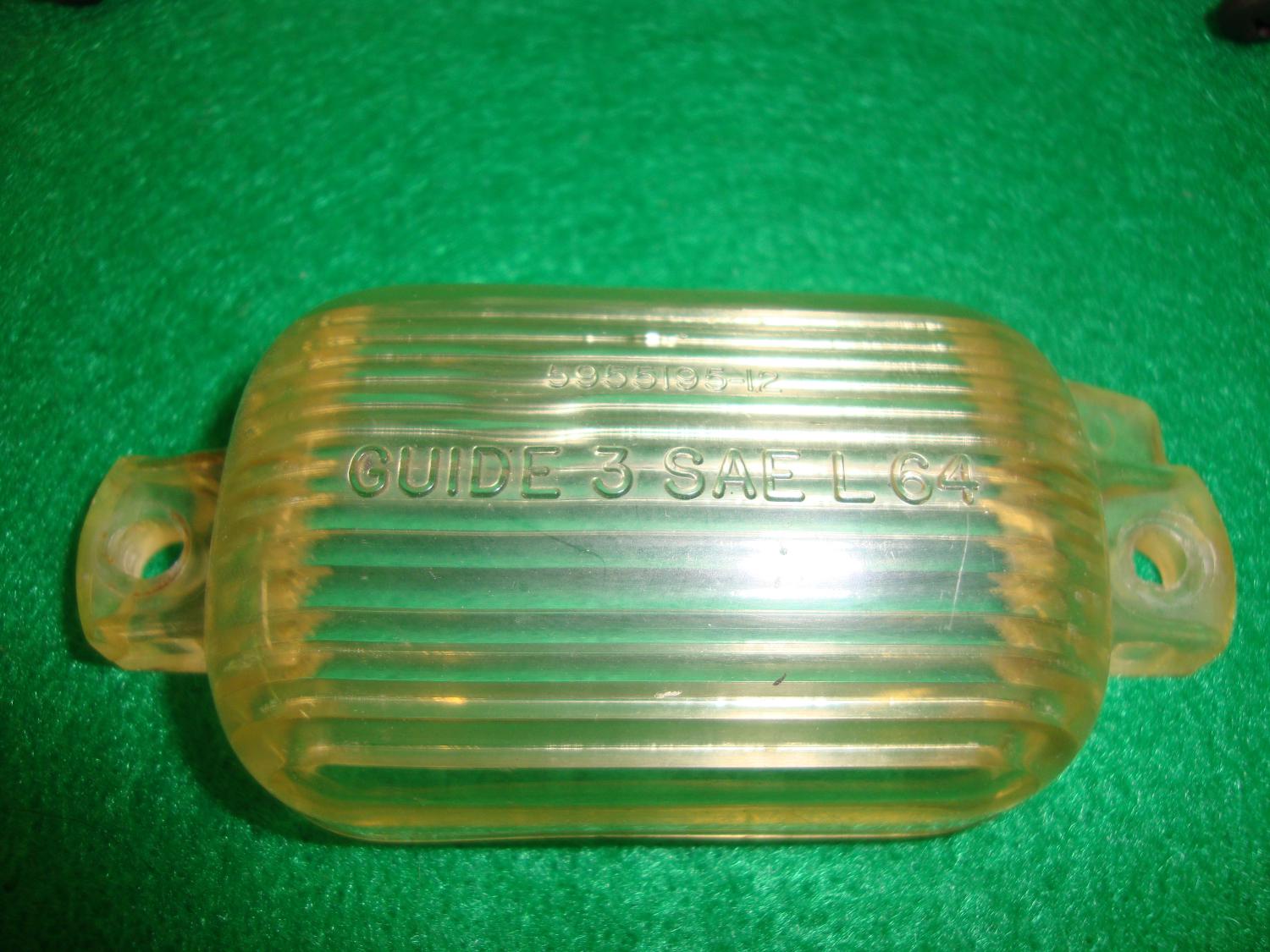

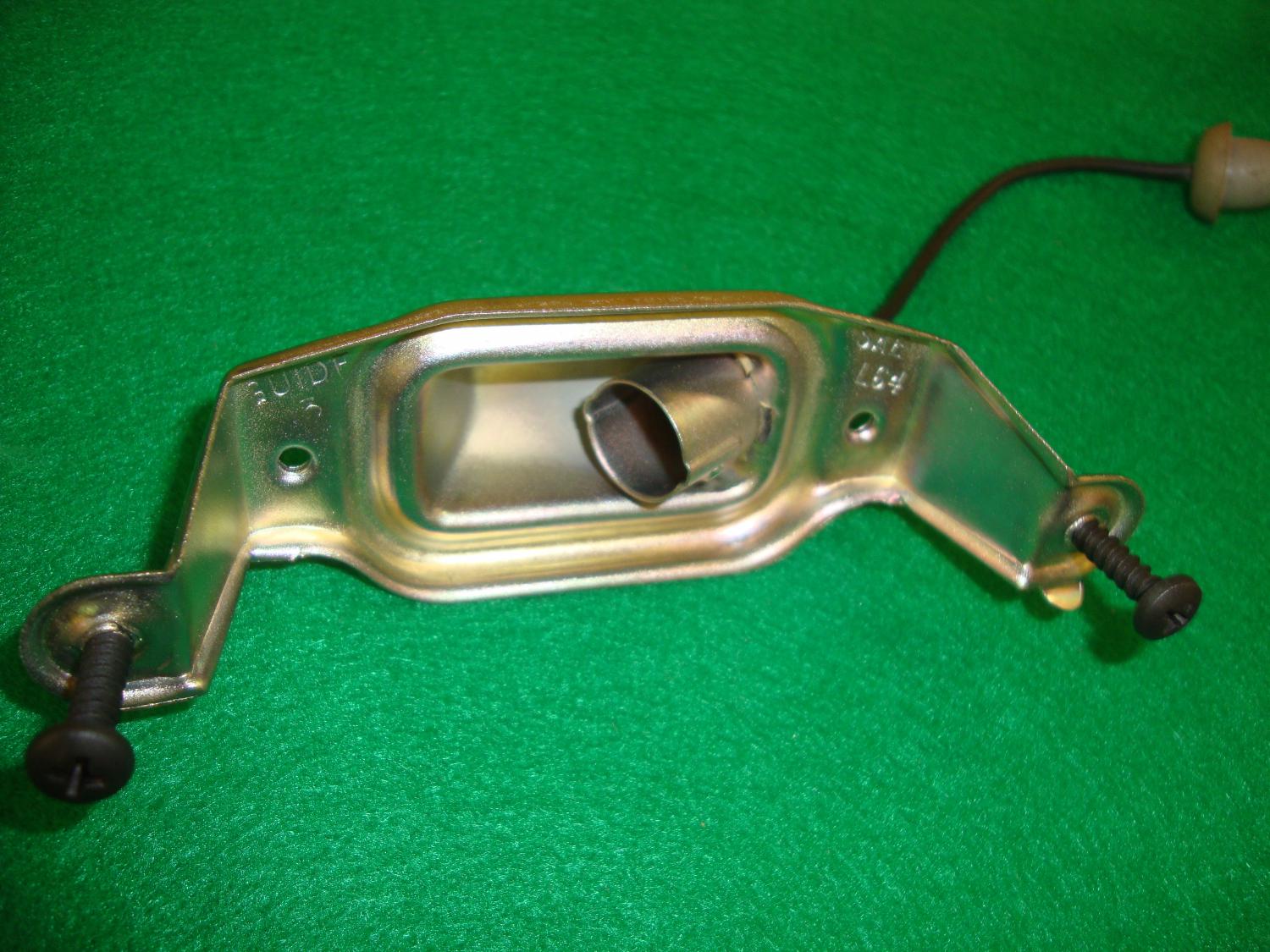

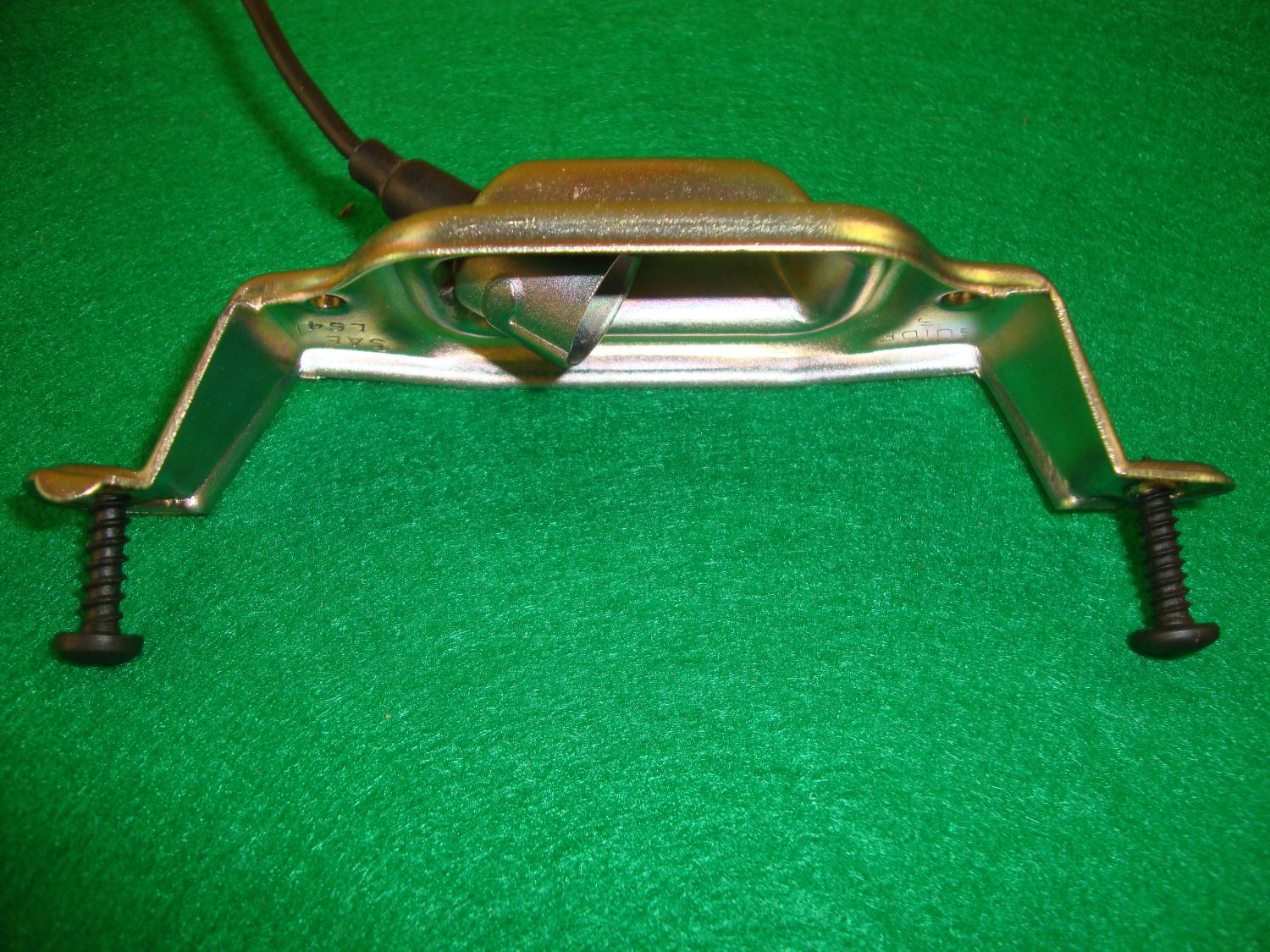

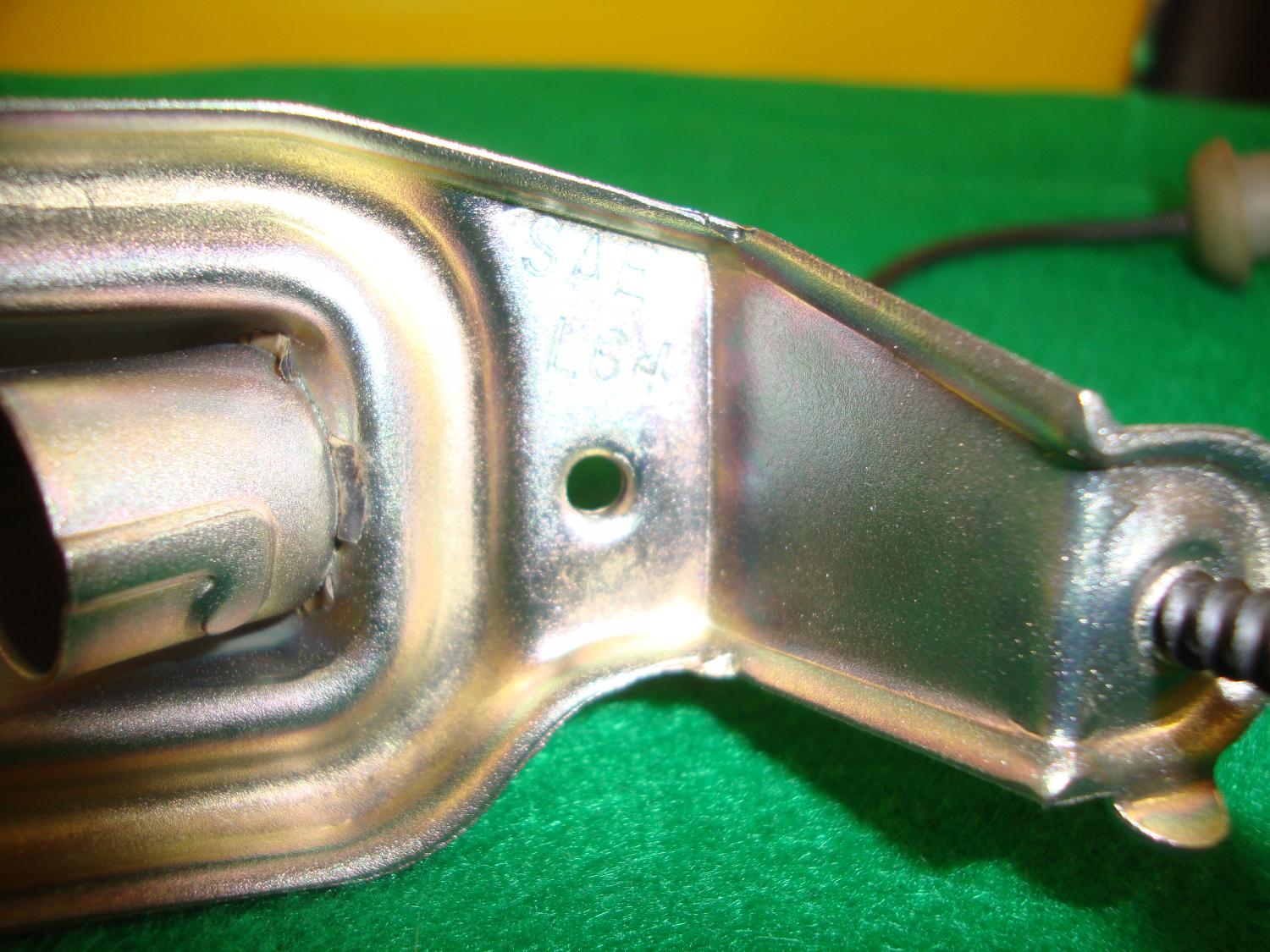

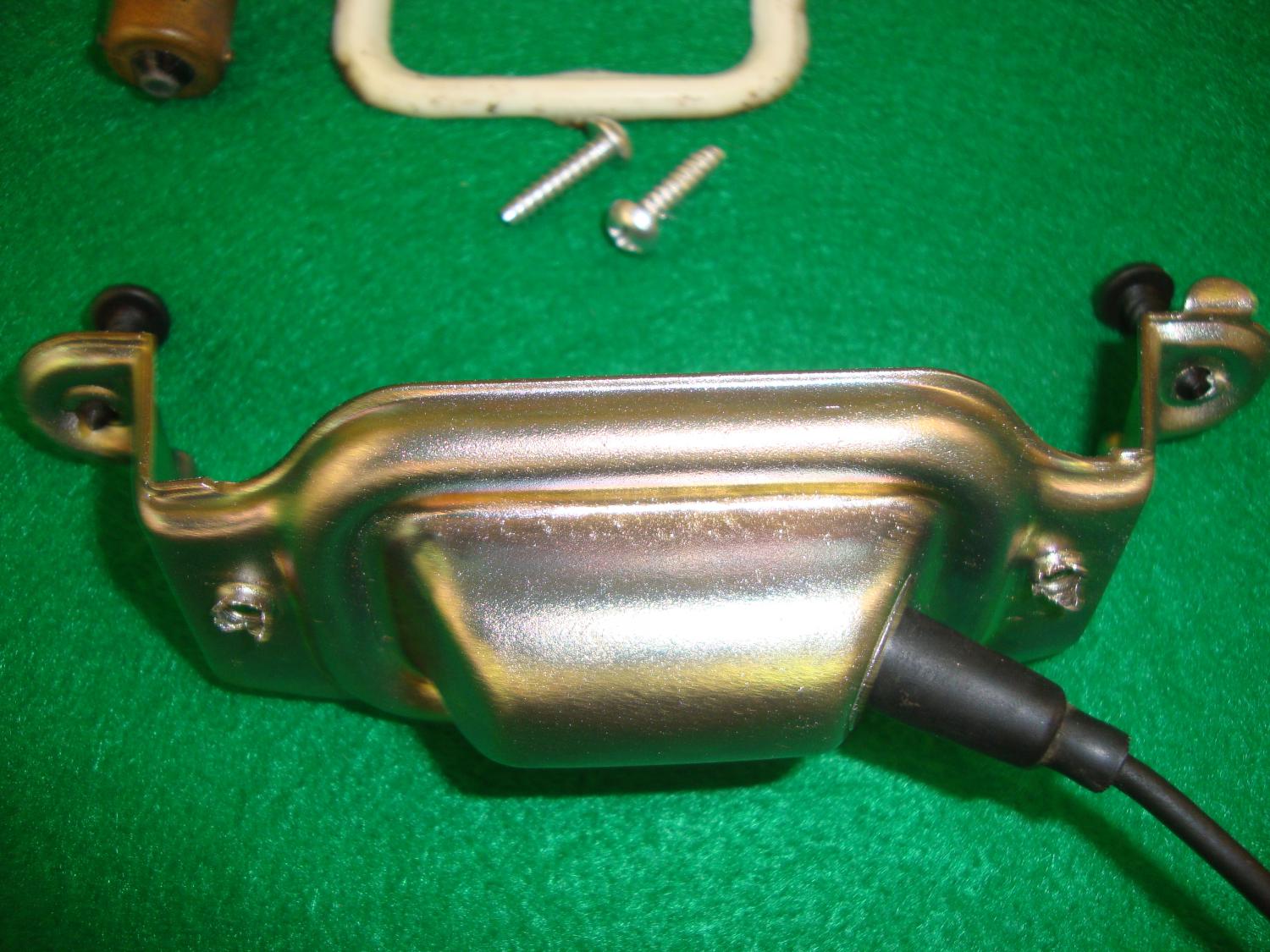

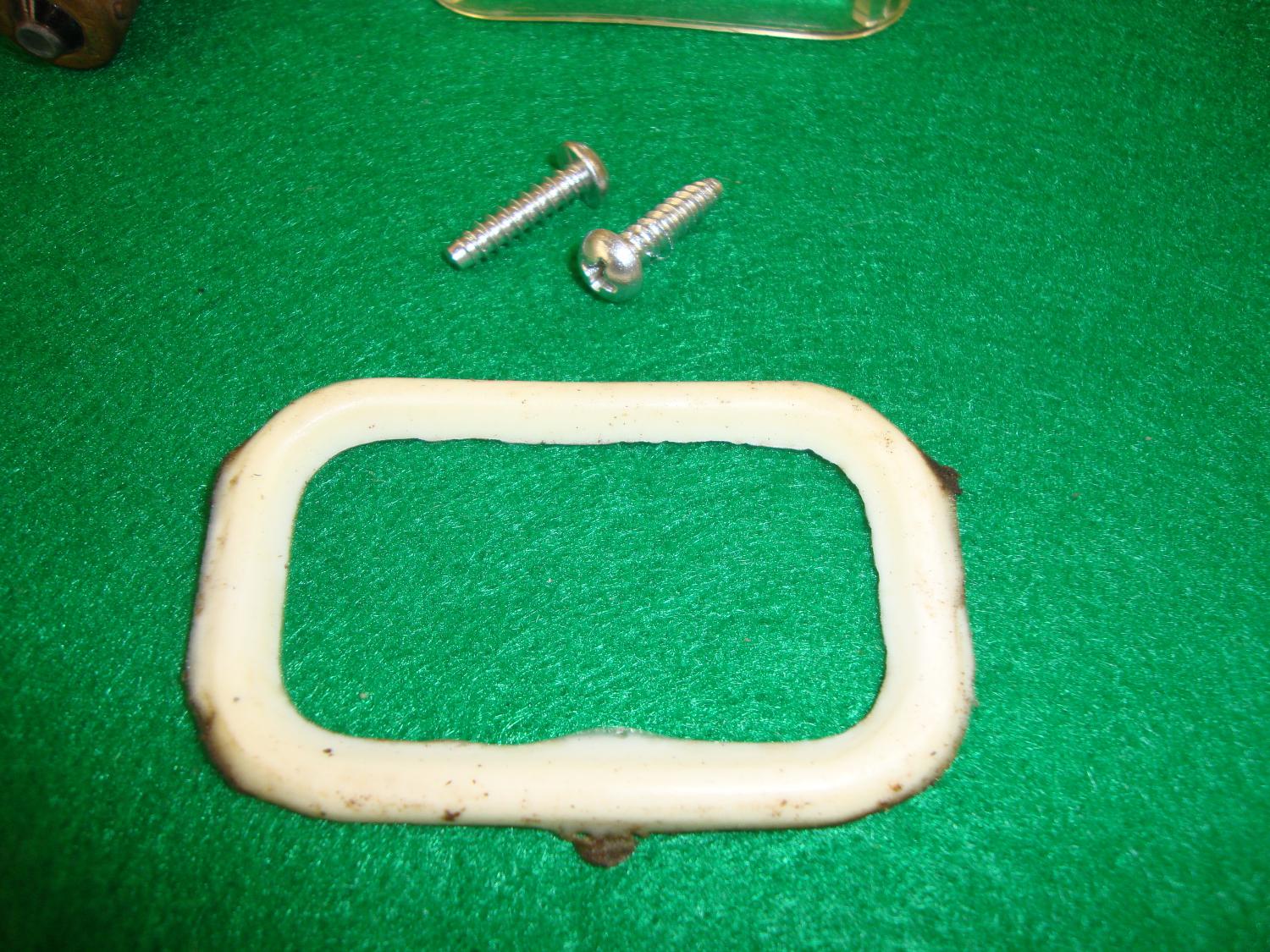

(LAMP ASSEMBLY) UPC 12 /C1 (1967) Piece # 1, PN 911242 UPC 12 /C4 (1968) Piece # 1, PN 911242 This assembly has been thoroughly disassembled and refurbished. The Lamp sheet metal housing was glass beaded, polished and replated Zinc Dichromate [ATSM B38 Zinc Type II yellow chromated]. The wire Boot, Thimble, Spring and Center contact have been removed and refurbished. The Center Positive Contact has been replaced with a New Both Crimped & Soldered. The Factory Wire (BLACK) <*Note I have NOT found ANY other color But Black on Factory 67/68 assemblies> Wire refurbed or replaced. The Packard Series 56 Female metal terminal has been replaced & the Plastic Connector is replaced with New connector. The Tailpan Sheetmetal Body Grommet was groomed and is in two colors Brown or Tan-Gray as found on these original assemblies. Note the Light fixture mounting feet Tang is unique to the 1967/1968 Bumper mounting. Housings have Factory Delco Metal stamping “ SAE 64 & GUIDE 3” on Underside. Original (Piece #3 PN 9414724) Phillips Head #10 Bumper Mounting Screws Supplied in Black Oxide / Manganese Phosphate coating, Original Plastic Lenses ‘plastic-polished’ to remove haze or debris, These are the Small Font PN 5955195 dash (Mold #), Slightly aged Yellowed from Heat, but original. (NOS) GE # 67, 8 watt Bulb Supplied. Housing Tested using 12VDC power Supply and Proof of operation photo tag attached. GM original WAX (White) Lens Gasket retained and cleaned with Some staining & debris. Why use offshore repop replacements or Incorrect GM service lamps when the Hard work has been done and ready to bolt on for the Correct as built factory installation. 175.00 Shipped USPS Paypal or M/O.
