Brake line diagram...
Need a diagram showing the proper routing for brake lines on a 1969 Chevelle SS96...especially interested in all the lines from the master cylinder to the front and rear wheels. Trying to help a car buddy make sure he has all the plumbing correct.
thanks
__________________
02 Berger 380hp #95 Lots of L78 Novas Join National Nostalgic Nova! 70 Orange Cooler 69 Camaro
|
|
#2
04-05-2023, 02:27 AM
|
||||
|
||||
|

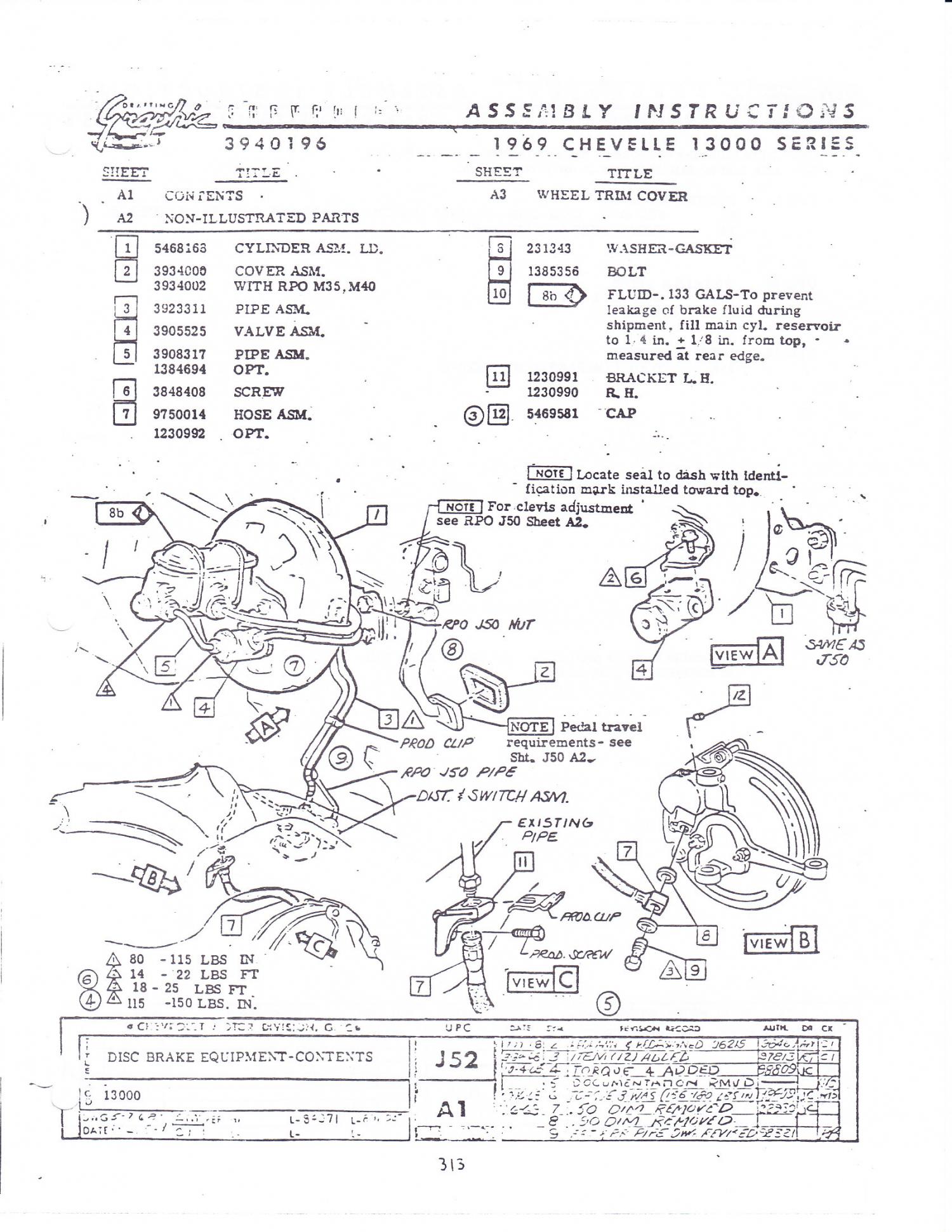

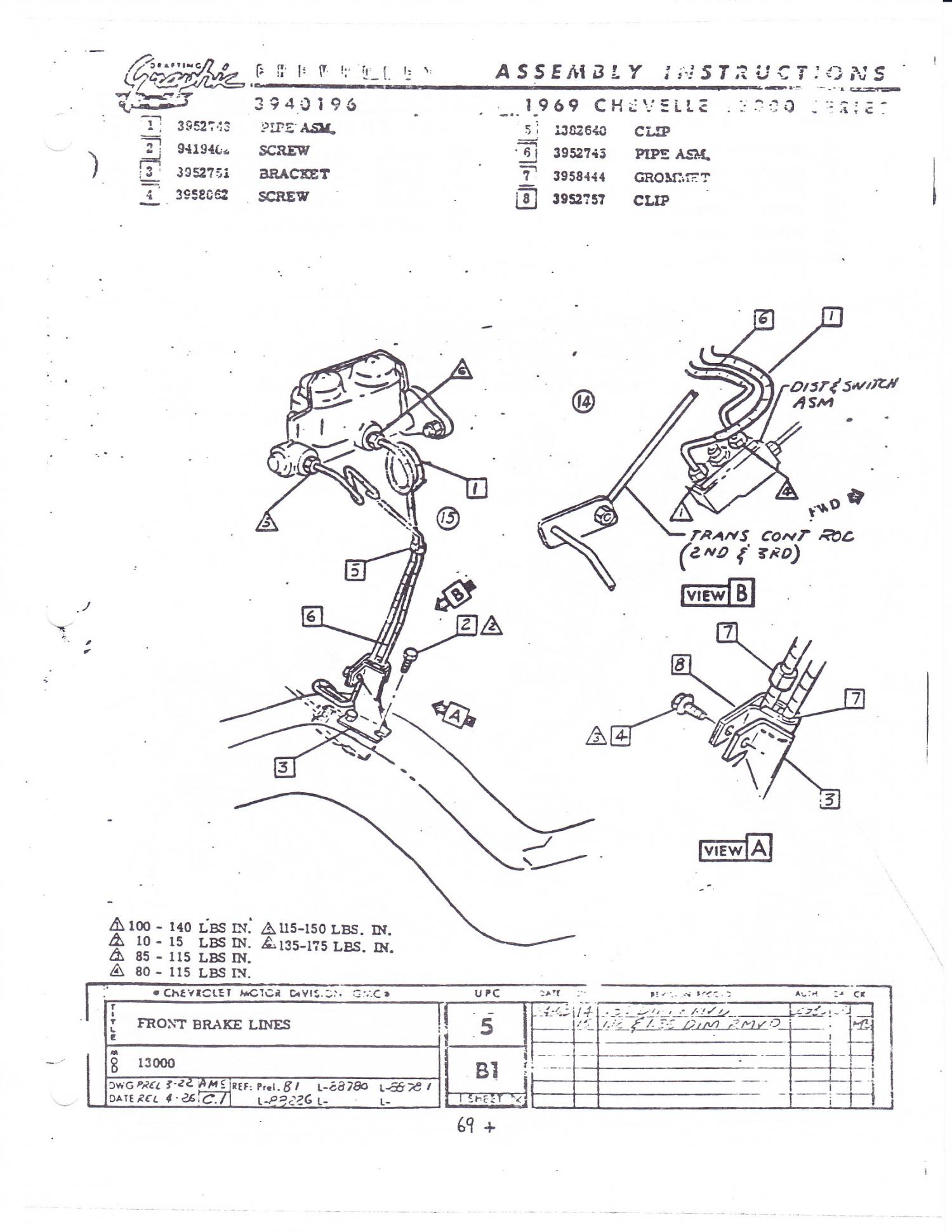

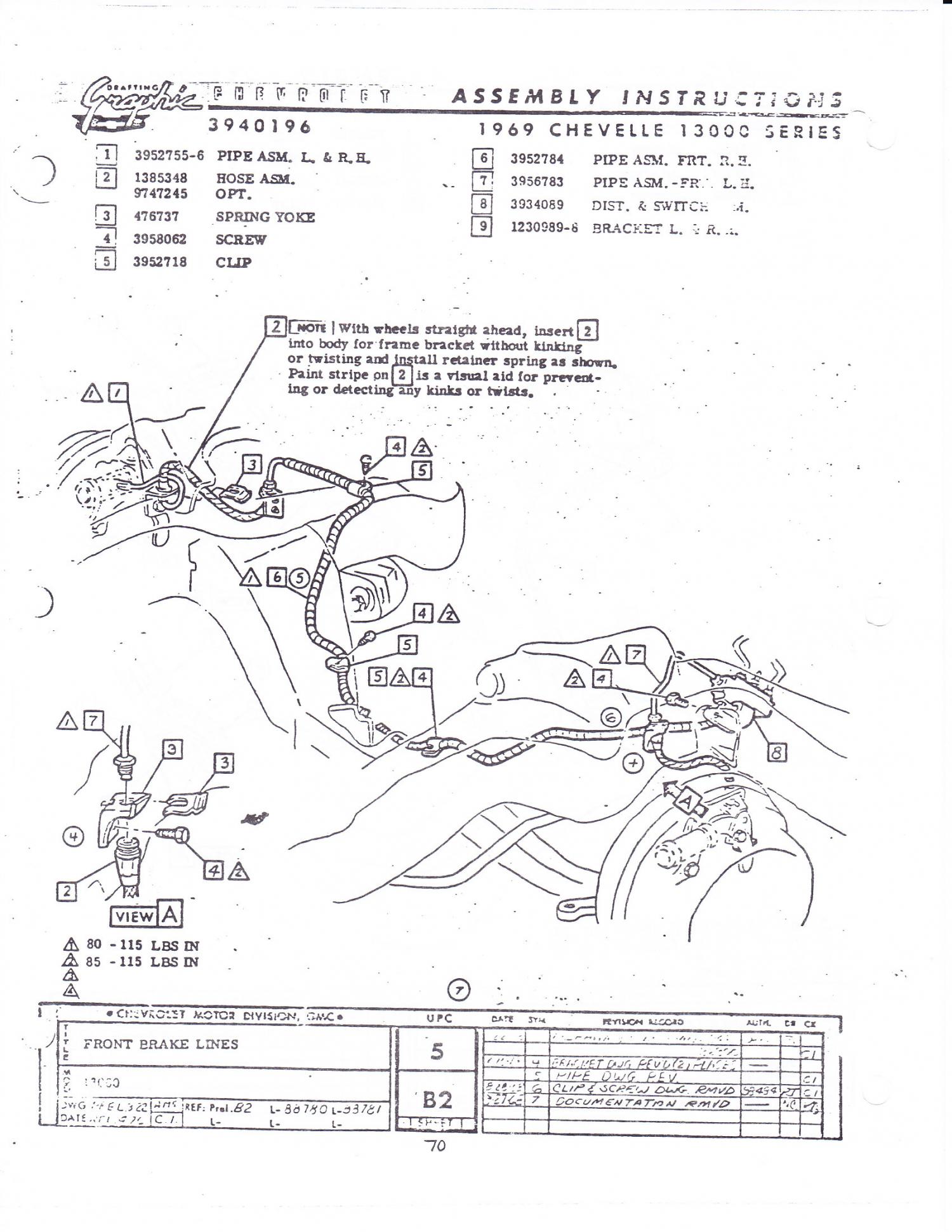

Is this what you want?
__________________
Robert _______________ 1969 Chevelle SS396 L78 M21 4.10 2023 Stingray Coupe Z51 Last edited by tunes; 04-05-2023 at 02:32 AM.
|
| The Following User Says Thank You to tunes For This Useful Post: | ||
69M22Z (04-05-2023) | ||
|
|
|
