#1
11-25-2020, 10:22 PM
|
||||
|
||||
Winters Z/28 Intake w/ Odd Looking Filler Tube???

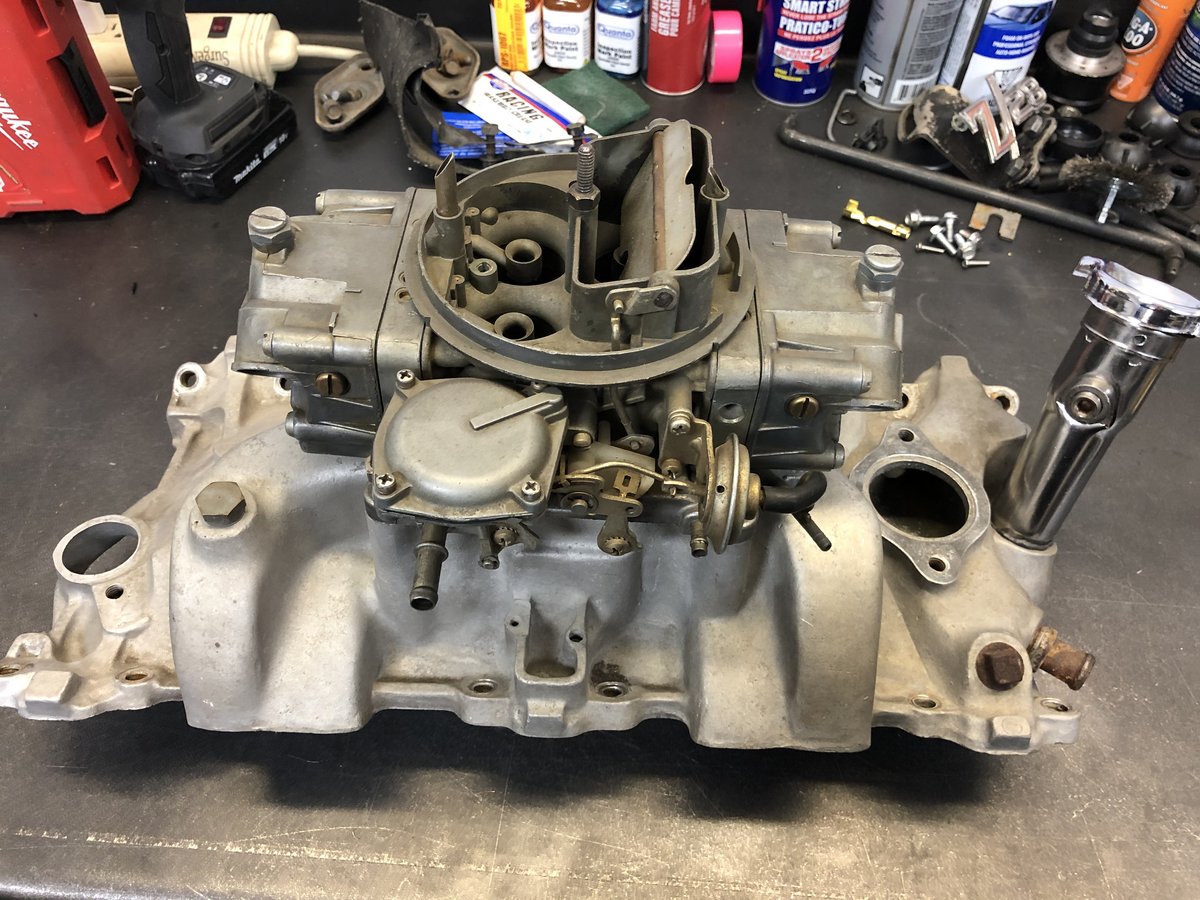

Picked up a nice survivor 3932472 Intake and DZ4053 carburetor today. The intake and carb appear to have never been molested and the intake still has original carb studs in it. What stands out to me is this filler tube with the tapped PCV outlet. Guy thought it was an original GM part but I have never seen one like it? Does anybody know anything about this filler neck or who might have made it?

__________________
I like solid lifter cars, big cams and cars w/ 3 pedals in them.
Last edited by NorCam; 11-25-2020 at 10:38 PM.
|
| The Following User Says Thank You to NorCam For This Useful Post: | ||
X66 714 (11-25-2020) | ||
|
#2
11-25-2020, 10:30 PM
|
||||
|
||||
|
Looks like a GM 67 z or SS350 chrome filler tube to me.
__________________
1969 Camaro RS/SS Azure Turquoise 1969 Camaro Z/28 Azure Turquoise 1984 Camaro z/28 L69 HO 5 speed 1984 Camaro z/28 zz4 conversion 1987 Monte Carlo SS original owner Last edited by Jonesy; 11-25-2020 at 10:33 PM.
|
|
#3
11-25-2020, 11:41 PM
|
||||
|
||||
 1966 L79 327/350HP Last edited by Lee Stewart; 11-25-2020 at 11:45 PM.
|
| The Following User Says Thank You to Lee Stewart For This Useful Post: | ||
NorCam (11-26-2020) | ||
|
#4
11-25-2020, 11:45 PM
|
|||
|
|||
|
YUP.
got one with the same type tube a few years ago. Sold the tube to someone on this site.
__________________
Don't believe everything you read on the internet ... Ben Franklin
|
| The Following User Says Thank You to Lynn For This Useful Post: | ||
NorCam (11-26-2020) | ||
|
#5
11-26-2020, 12:15 AM
|
||||
|
||||
|

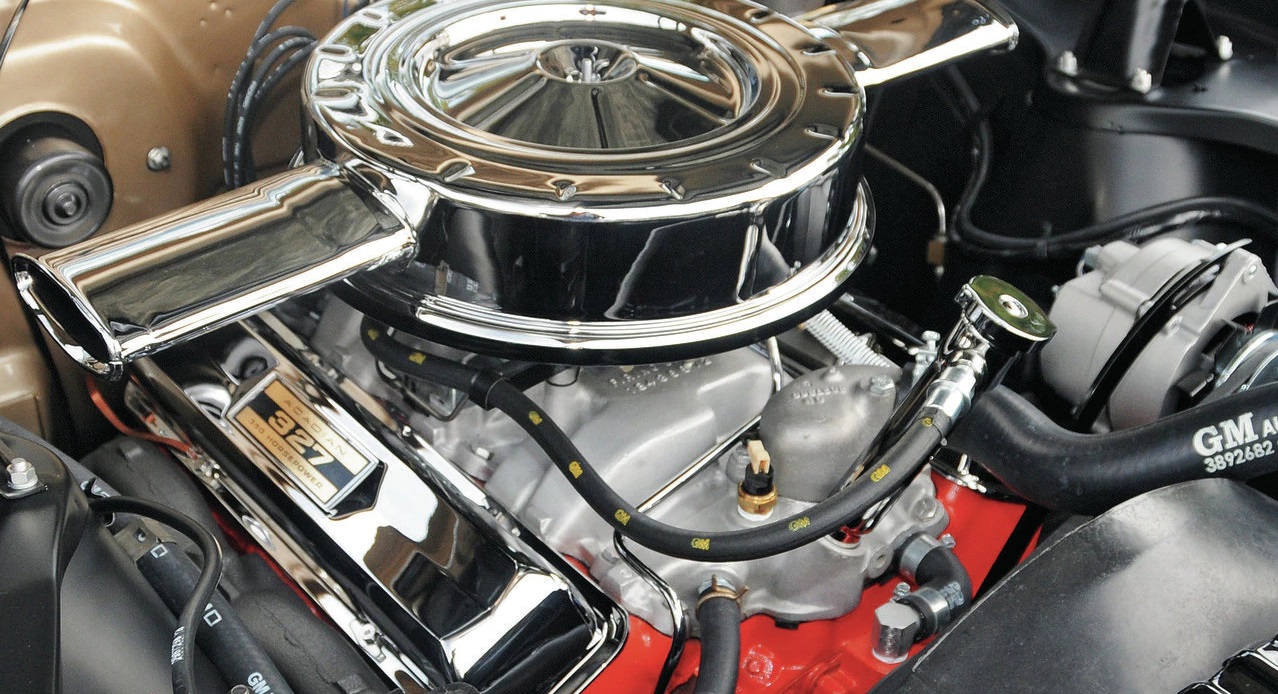

PCV valve screws in, just like the pic above. My California smog '67 Camaro 350 has the same tube.
__________________
Mitch 1970 Chevelle SS 1966 Chevelle SS 1967 Camaro ss/rs 1938 Business coupe, street rod 2000 FXSTS, original owner, 13k miles
|
| The Following User Says Thank You to Too Many Projects For This Useful Post: | ||
NorCam (11-26-2020) | ||
|
#6
11-26-2020, 12:17 AM
|
||||
|
||||
|
Yup, a convenient way to plumb a PCV if you’re running early valve covers and don’t want to drill them.
|
| The Following User Says Thank You to scuncio For This Useful Post: | ||
NorCam (11-26-2020) | ||
|
#7
11-26-2020, 12:22 AM
|
||||
|
||||
|
Thanks, everyone. Never seen one with the fitting before and didn't think it was a GM part. I'll be taking it off and will offer it up at a later date in case someone needs one.
__________________
I like solid lifter cars, big cams and cars w/ 3 pedals in them.
|
| The Following User Says Thank You to NorCam For This Useful Post: | ||
thomam (11-26-2020) | ||
|
#8
11-26-2020, 03:24 AM
|
||||
|
||||
|
If I may add,

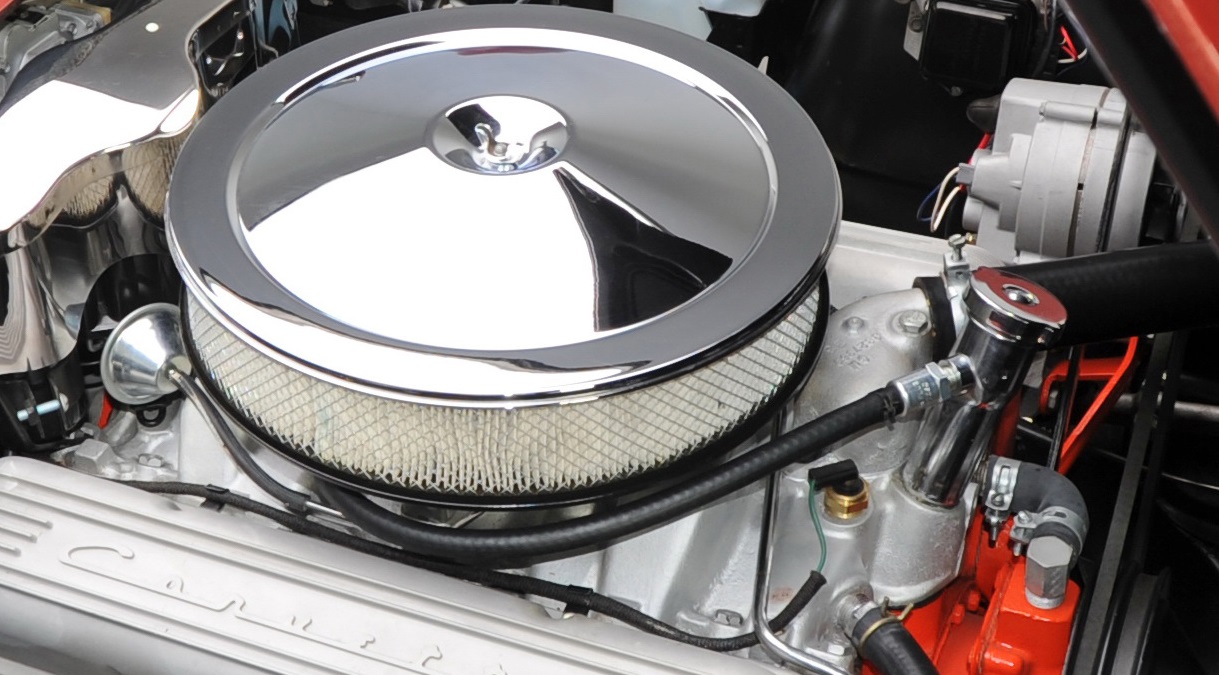

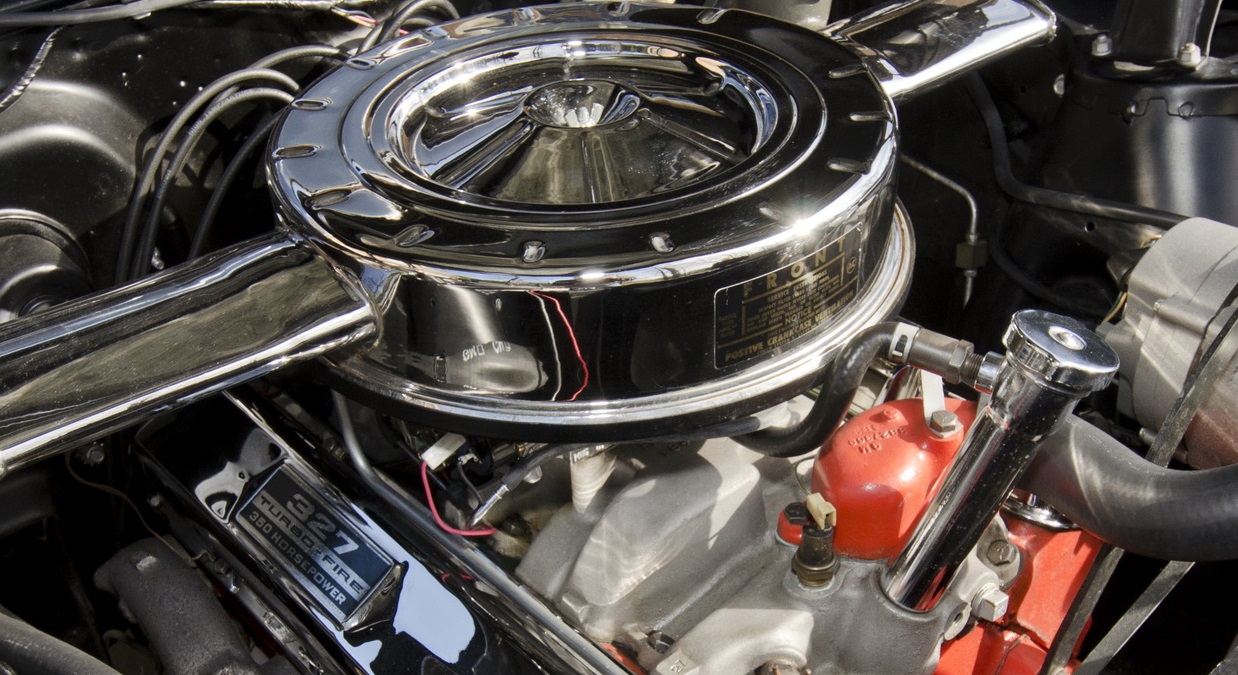

There are two versions of this tube. The tube in question that Graeme posted, appears to be the Corvette version, a bit shorter (4 3/4" above the intake surface), and the, I believe, all other applications version which rises 6 1/2" above the intake, as seen in the second pic. There is a common non-chrome, painted version, and a couple versions of the cap also. Bill W
|
| The Following User Says Thank You to 67since67 For This Useful Post: | ||
NorCam (11-26-2020) | ||
|
#10
11-26-2020, 01:10 PM
|
|||
|
|||
|
Quote:
|
| The Following User Says Thank You to RALLY For This Useful Post: | ||
NorCam (11-26-2020) | ||
|
|
|
