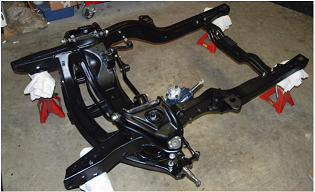

Stunning 67-69 camaro/ 68-72 nova sub frame

[madden]

FOR SALE FULLY RESTORED
SHOW CAR OR CONCOURS BUILD
READY TO JUST BOLT ON!!

For BBC or SBC, 4-speed, Disc Brakes, Manual Steering
(Could also be used for automatic car)

Fits: 1967-1969 Camaro and 1968-1972 Nova

Subframe came from a low mileage car and has been exquisitely detailed. All of the original welding splatter debris has been carefully removed. All sharp edges radiused. Subframe was then completely ground with a wire wheel and finally media blasted. The same process was performed on the upper and lower a-arms and other chassis components. Basic subframe as well as upper and lower a-arms are powder coated in semi-gloss black. New McQuay-Norris ball joints, McQuay-Norris tie rod ends, Moog upper and lower a-arm bushings (offset HD Moog setup used on upper a-arms to improve positive camber curve).
Steering relay rod powder, disc brake spindles, steering arms, stabilizer bar, stabilizer bar brackets, tie rod clamps, big block motor mounts, big block four speed transmission crossmember, springs and small hardware detailed and powder coated 60% gloss black.
All fasteners replaced with new GM hardware or A-N (aircraft) components. Transmission crossmember mounted with B&B Performance “long” shoulder bolts. Shocks are new adjustable Koni classic (vintage) models. New upper and lower a-arm snubbers. Steering box is a fresh blueprinted manual 525 setup from Borgenson. New pitman arm. New stabilizer bar end links with cadmium plated hardware, transmission mount for Muncie or Super T-10 and clutch cross shaft mount included in the build.

EXTREMELY NICE restoration/ concours/ show car piece and a must need for that prestigious build
$4000 plus shipping

HAVE MORE PICS
E-MAIL ME AT FOR MORE PICS

[email protected]

thx
chris
