Default Re: 1970 Nova SS 396 Help

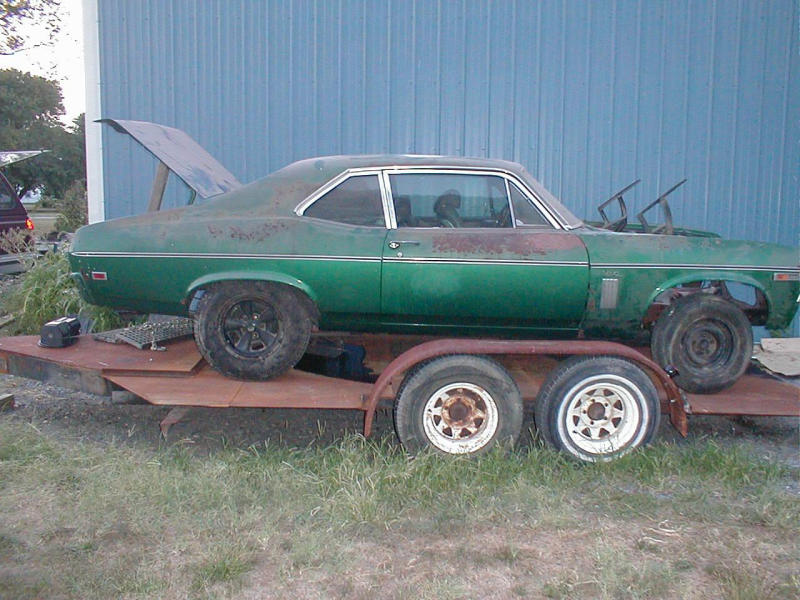

RP; Yes, SS's could certainly get these moldings - my car included since I have a 3 on my trim tag. (See pic b4 I bought it!). Body side moldings are the ones I was asking about previously.

Chi-The molding around the windshields is standard on all Novas. This number on the trim tag only relates to the moldings referenced above.
Attached Images

__________________
Marlin
70 Yenko Nova-350/360, 4speed M21, 4.10 Posi (Daddy's Ride)
69 SS Nova-396/375hp, 4speed M20, 3.55 Posi (Benjamin's Ride)
67 RS Camaro-327/250hp, 2speed Glide, & 3.08 Open (Danny's Ride)
Reply With Quote
  #12
Old 02-17-2006, 09:43 PM
YENKO DEUCE REGISTRY's Avatar
YENKO DEUCE REGISTRY YENKO DEUCE REGISTRY is offline
Yenko Contributing Member

Join Date: Apr 2000
Location: PA
Posts: 13,097
Thanks: 720
Thanked 358 Times in 142 Posts
Default Re: 1970 Nova SS 396 Help

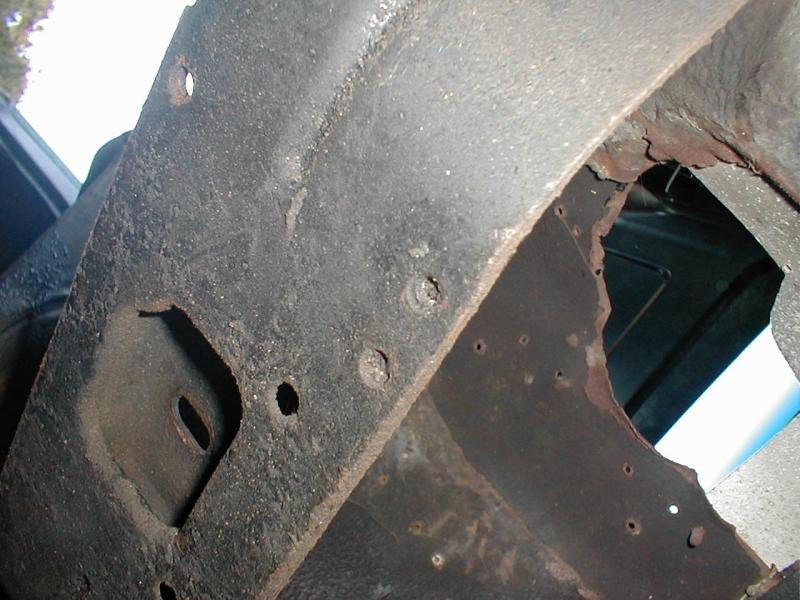

Hole in crossmember should look like this:
Attached Images

__________________
Marlin
70 Yenko Nova-350/360, 4speed M21, 4.10 Posi (Daddy's Ride)
69 SS Nova-396/375hp, 4speed M20, 3.55 Posi (Benjamin's Ride)
67 RS Camaro-327/250hp, 2speed Glide, & 3.08 Open (Danny's Ride)
Reply With Quote
  #13
Old 02-17-2006, 09:44 PM
YENKO DEUCE REGISTRY's Avatar
YENKO DEUCE REGISTRY YENKO DEUCE REGISTRY is offline
Yenko Contributing Member

Join Date: Apr 2000
Location: PA
Posts: 13,097
Thanks: 720
Thanked 358 Times in 142 Posts
Default Re: 1970 Nova SS 396 Help

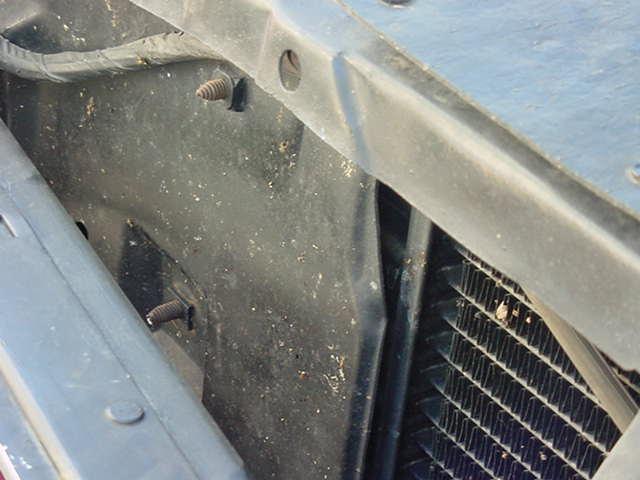

Special nut on front of rad support:
Attached Images

__________________
Marlin
70 Yenko Nova-350/360, 4speed M21, 4.10 Posi (Daddy's Ride)
69 SS Nova-396/375hp, 4speed M20, 3.55 Posi (Benjamin's Ride)
67 RS Camaro-327/250hp, 2speed Glide, & 3.08 Open (Danny's Ride)
Reply With Quote
  #14
Old 02-17-2006, 09:45 PM
John Brown's Avatar
John Brown John Brown is offline
Yenko Contributing Member

Join Date: Mar 2002
Location: South Bend, Indiana
Posts: 2,820
Thanks: 455
Thanked 510 Times in 243 Posts
Default Re: 1970 Nova SS 396 Help

Isn't A2 the Custom Exterior Trim package? Fake louvers, double lower trim, bright trim around the door and rear quarter window and the cast pot metal panel between the tail lights?
__________________
......................
John Brown

This isn't rocket surgery.....
Reply With Quote
  #15
Old 02-17-2006, 11:36 PM
chitown chitown is offline
Junior Member

Join Date: Feb 2006
Location: illinois
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: 1970 Nova SS 396 Help

Heres what was under the rear seat..
Attached Images

Reply With Quote
  #16
Old 02-18-2006, 12:21 AM
Nova Research Project's Avatar
Nova Research Project Nova Research Project is offline
Senior Member

Join Date: Jun 2002
Location: Chesapeake, Virginia
Posts: 655
Thanks: 1
Thanked 6 Times in 5 Posts
Default Re: 1970 Nova SS 396 Help

John Brown,

There were no RPO codes on the trim tag for Novas. That is the correct decode for the trim tag. RPO numbers are on the Fisher Body Buildsheet. See below.

Greg R.
__________________
Nova Research Project at chevynova.org
Reply With Quote
  #17
Old 02-18-2006, 12:25 AM
Nova Research Project's Avatar
Nova Research Project Nova Research Project is offline
Senior Member

Join Date: Jun 2002
Location: Chesapeake, Virginia
Posts: 655
Thanks: 1
Thanked 6 Times in 5 Posts
Default Re: 1970 Nova SS 396 Help

chitown;

Welcome to the site. Here is what this decodes to:

SEQ 364 = The order the car went down the Fisher Body line the day it was on the trim line.
MO 04 = April
DAY 10 = 10. This car went down the Fisher Body line Friday April 10th or 100 Julian.
Style 11427 = 2 Door Nova only has nothing to do with engine. See VIN for that.
PLT WRN = Willow Run Fisher Body Assembly Plant
Body Number 273514 = The 273514th body assigned to Fisher Body at Willow Run in the 1970 model year. As noted on the trim tag.
Trim 732 = Black Bench seat as noted on trim tag
Upper Color 58 = Autumn Gold as noted on trim tag
Lower Color 58 = Autumn Gold as noted on trim tag
PP 4 = Unknown at this time
Box 1 A02 = Tinted Glass - windshield only
Box 2 A04 = Tinted Glass - Side windows
Box 3 A05 = Tinted Glass - Rear window
Box 4 Blank
Box 5 Blank
Box 6 B84 = Body side molding with black insert
Box 7 B90 = Bright door and window frame molding
Box 8 Blank
Box 9 Blank
Box 10 M20 = One of the flavors of 4-speed manual transmission (M20, M21, or M22)
Box 11 Zl3 = SS Body Conversion Deluxe (taillight panel with S.S. and Black SS Steering wheel) remember that Fisher did not do the front clip Chevy did. The rest of the SS badging was done by Chevy.
Box 12 ZJ = Should be ZJ1 Custom interior package (because of the buckets)
Box 13 ZJ5 = Exterior Decor Package
Box 14 1 = Is the first of a 4 number work order number used internally by Fisher Body
Box 15 041 = the rest of the work order number 1041

Interesting to note is the blanks in Boxes 4, 5, 8, and 9.

Greg R.

PS can you post the code from the passenger side rear axle tube?
__________________
Nova Research Project at chevynova.org
Reply With Quote
  #18
Old 02-18-2006, 12:46 AM
YENKO DEUCE REGISTRY's Avatar
YENKO DEUCE REGISTRY YENKO DEUCE REGISTRY is offline
Yenko Contributing Member

Join Date: Apr 2000
Location: PA
Posts: 13,097
Thanks: 720
Thanked 358 Times in 142 Posts
Default Re: 1970 Nova SS 396 Help

A side note, the combination of numbers in boxes 14 & 15 equal the number on the bottom row of the trim tag.
__________________
Marlin
70 Yenko Nova-350/360, 4speed M21, 4.10 Posi (Daddy's Ride)
69 SS Nova-396/375hp, 4speed M20, 3.55 Posi (Benjamin's Ride)
67 RS Camaro-327/250hp, 2speed Glide, & 3.08 Open (Danny's Ride)
Reply With Quote
  #19
Old 02-18-2006, 09:15 AM
nuch_ss396 nuch_ss396 is offline
Senior Member

Join Date: Oct 2004
Location: Western North Carolina
Posts: 1,713
Thanks: 0
Thanked 0 Times in 0 Posts
Default Re: 1970 Nova SS 396 Help

[ QUOTE ]


Check for the single 3/8" fuel line, but several L34 cars have been found with only one line - primarily early cars built b4 the end of '68.



[/ QUOTE ]

How could an L/34 ( Rochester carb ) not have a return
fuel line? Did the fuel filter have a block-off for the
return? I like to know more about this.

Steve
__________________
Reply With Quote
  #20
Old 02-20-2006, 04:58 PM
YENKO DEUCE REGISTRY's Avatar
YENKO DEUCE REGISTRY YENKO DEUCE REGISTRY is offline
Yenko Contributing Member

Join Date: Apr 2000
Location: PA
Posts: 13,097
Thanks: 720
Thanked 358 Times in 142 Posts
Default Re: 1970 Nova SS 396 Help

Allen???
