70 Chevelle TCS Harness

[ssbrewskyaz]

I hate wiring ! Can someone give me an idea where the TCS lead breaks out of the main harness and heads for the front of the intake manifold? Now that I’ve got all these parts reinstalled, the same ones that 35 years ago we immediately removed upon purchase, I’d like to be able to plug it in and make it work.

Regards, …SWB…

[Pantera]

Get a '70 Chevelle Shop manual and read the schematic that is usually in the back. perhaps someone on here has one that they could scan for you? All I have is for Vettes.

[P.J.]

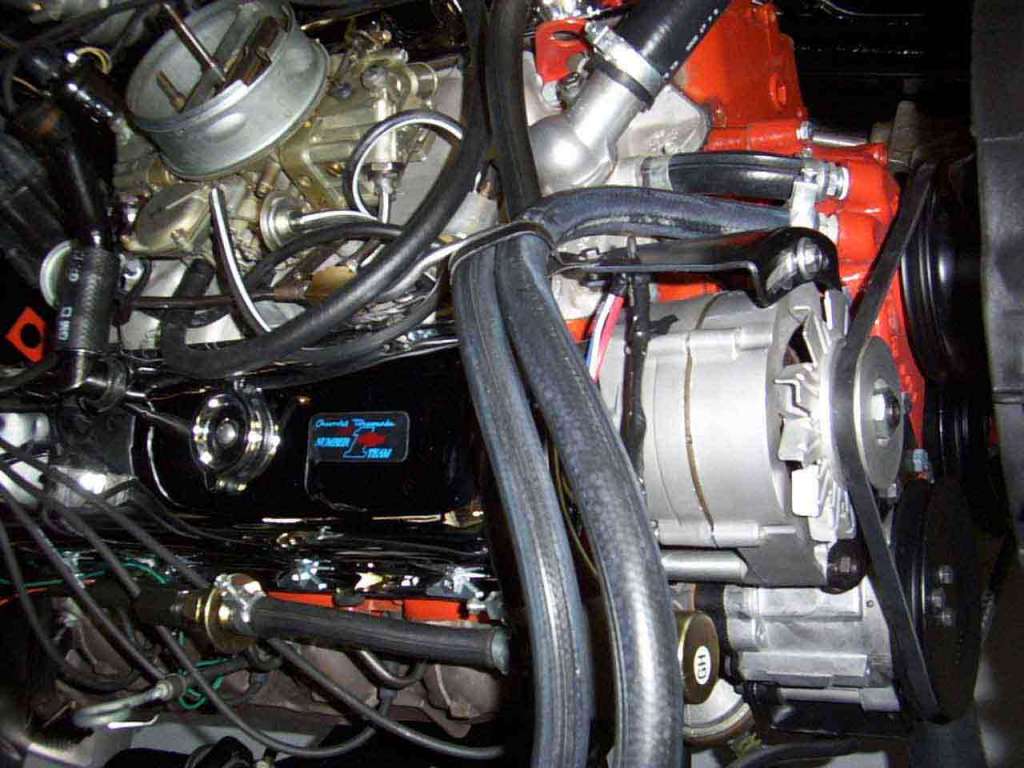

try this, if you need more will take another pic.
Peter

[P.J.]

Sory i cant post the other one that shows the wiring I tried several times
Peter

[NCGuy68]

A 70 Chevelle assembly manual will show all of the wiring diagrams including many of the RPOS. It will also show where each wire (or connector) is landed. If your car has original and/or correct repop wiring, its not hard to trace. Match color-to-color wires and use a simple 12 volt test light to cofirm voltage is to the component in question.

[ORIGLS6]

Scott,

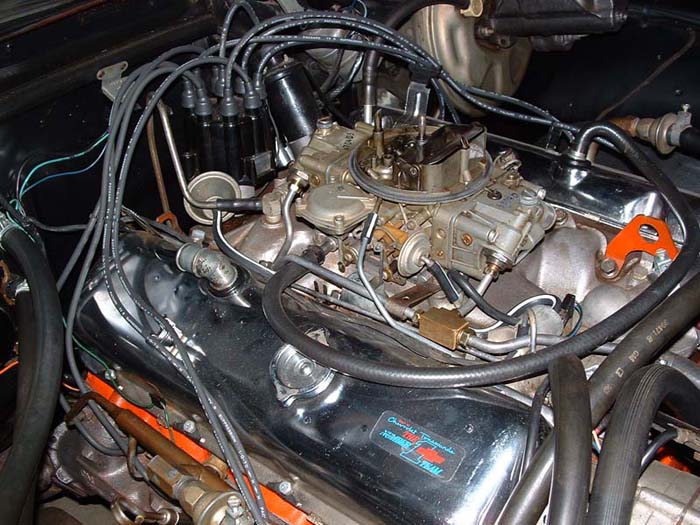

See if these pix answer your question.

Dennis

[ORIGLS6]

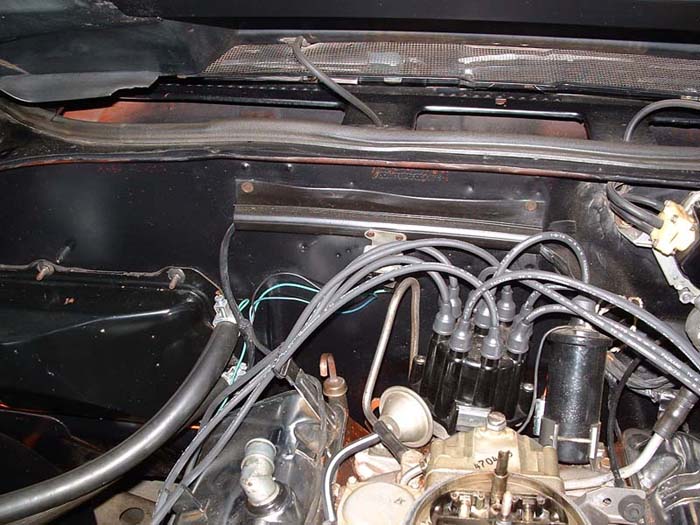

Another view

[ORIGLS6]

And a third

[Mr70]

You still have that old thing.......

[ORIGLS6]

It was still there when I last checked, although I was told it embarrassed a Phase III '02 ZL-1 over the week-end while I was in Chicago! Maybe I'd better check to see if it was returned in one piece!
