Default Accel Ignition Amplifier wiring 35355

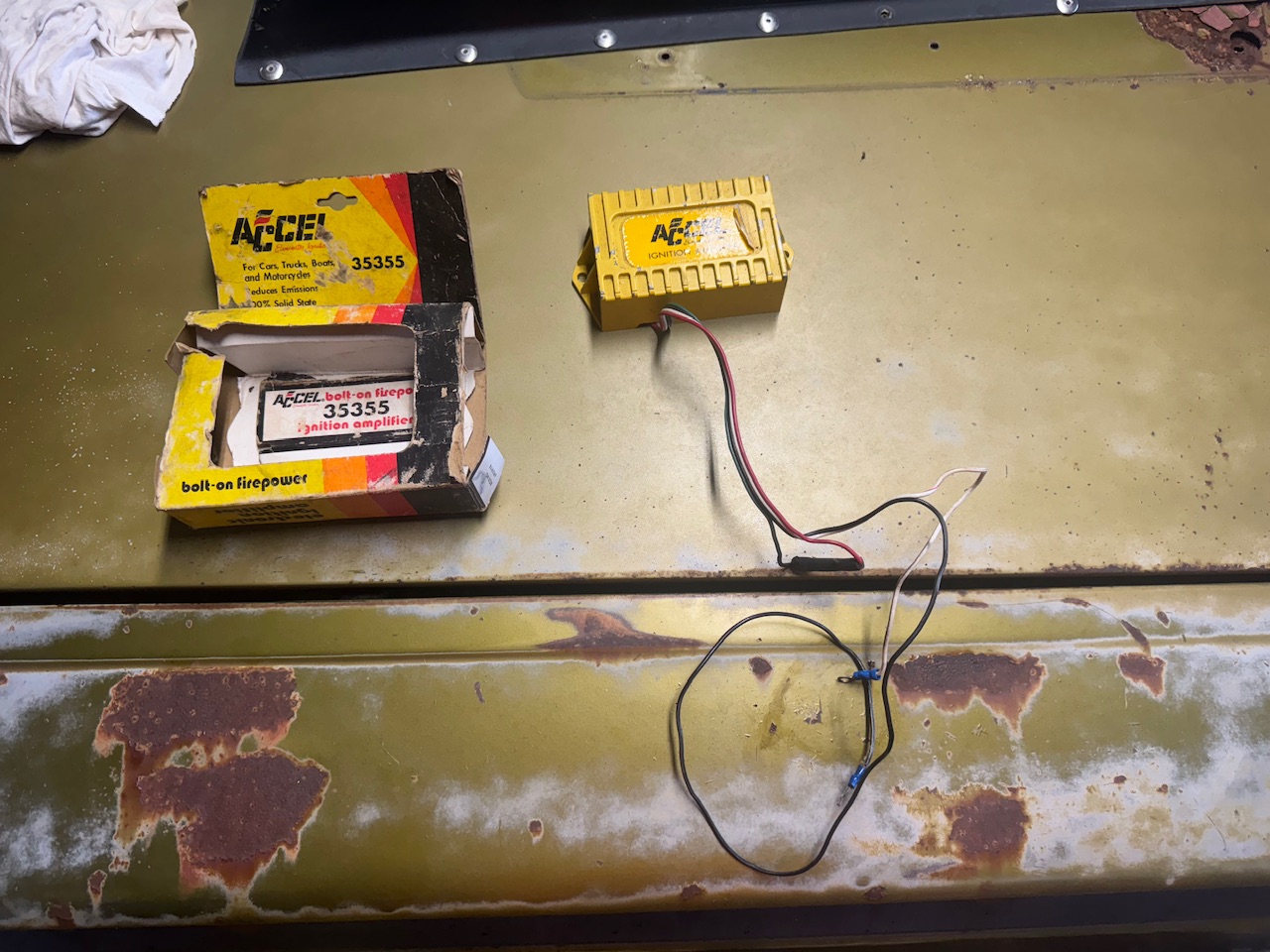

I was recently going through a box of stuff a friend gave me of old performance stuff his in laws had laying around in their garage taking up room, and one of the parts he gave me is an Accel ignition amplifier part 35355. I’m assuming it keeps amperage from the points to help lengthen their life. I’m assuming it’s barely used. The box is pretty tore up and the instructions are missing.

It has 4 wires:
Red
Green
White with a red tracer
Black
Red and Green are connected together with a bullet style connector, and I’m assuming one goes to the positive and 1 to the negative side of the coil. But before I hook it up wrong and burn it up, does anyone have a set of old instructions for this so I can do it right?
Thanks
Attached Images

__________________
AMC weirdo
Always on the lookout for neat vintage AMC performance parts.
Reply With Quote
Attachments - The Supercar Registry IMG_9442.jpeg
O Garage vBulletin Plugins by Drive Thru Online, Inc.
Click here to view all the pictures posted in this thread...
  #2
Old Today, 01:02 PM
mhm1966 mhm1966 is offline
Yenko Contributing Member

Join Date: Apr 2012
Location: Gillette, New Jersey
Posts: 477
Thanks: 536
Thanked 112 Times in 54 Posts
Default

I sold a Accel Amplifier kit to a member on this site by the name of Claton Cartozian that lives in El Verano, CA. The kit had the instructions when I sold it to him.
__________________
1966 Corvette Coupe L79 Mossport Green
1969 Camaro Z/28 Hugger Orange
NCRS #22211
