Saginaw smog pump rebuild

[Edgemontvillage]

Originally Posted by 169indy

I have a Pair Devaning in progress.

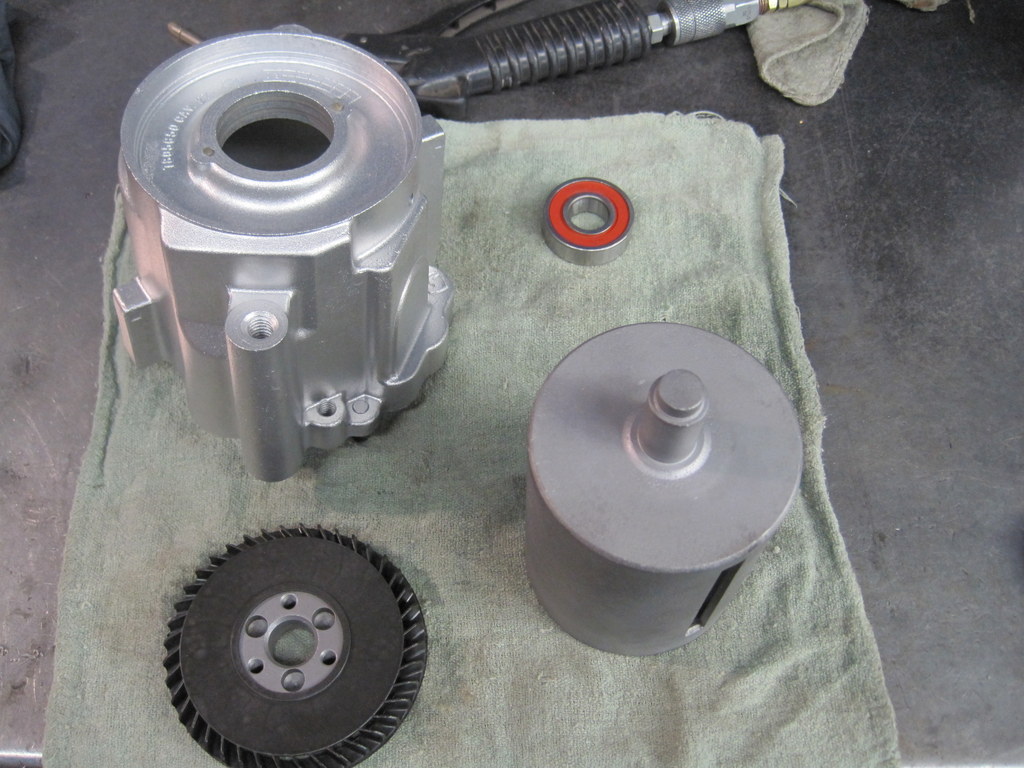

The Large Torrington Bearing is mounted in an ENDPALTE that is then pressed into the open end of the rotor barrel. I used a three-jaw puller with the legs rotated and pressed against a solid piece of round stock placed inside the rotor cavity, to Pull the endplate with Bearing. Another option is to press the bearing down inside the rotor barrel and pull it out, but often the rotor blades and internal bearings are a source of interference. I ONLY work on De Vaneing them, Not interested in a working pump.

Llyods instructions over at Camaros.net were very very helpful

Joe, check my build thread on TC, Page 37 Post 607, its all there. Here is the link:
https://www.camaros.net/threads/1969...337897/page-31
