69 Z/28 Day II Project (Air Force Brat)

[NorCam]

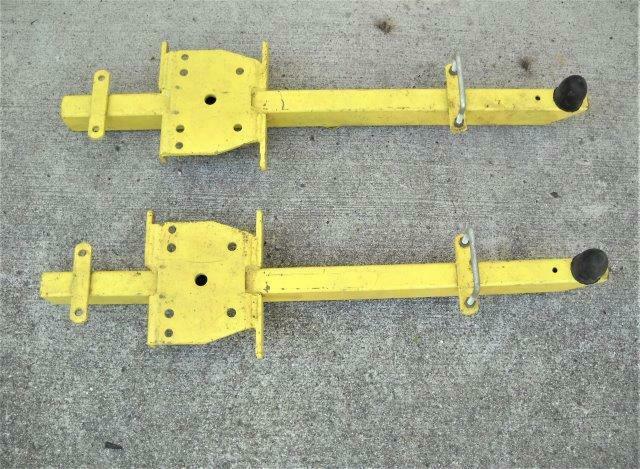

I did measure the distance from the inner holes for the u-bolts to the outer holes for the j-bolt and each of the j-bolt holes is 1.150" further outward. That's why there are such angles on the front legs of the j-bolts as they really turn in a lot to meet the eye holes on the front stirrups. I also tried mounting up an older set of original stirrups and they were tighter to fit and harder to align with the bolts than the NOS set I have here, so the NOS ones were used and they actually fit like a glove.

After welding extensions onto the Lakewood shock mount tabs, the new shock mounts move the eye upward by 2.5" and the shocks will now be well clear of the front legs of the j-bolt on the passenger side. When the car is positioned at the desired ride height for these tires, the rear shocks will be extended at 17" so there is plenty of room to extended or collapse within the shocks 13.14"-21.62" travel. As far as I am concerned, the bars are now finished and I am moving on to fit the rear brake lines as well as install the other Air Lift bag. It's gonna be sweet.
