'70 Camaro caliper part# help

[Kim_Howie]

I still think they are 54 not 64, enclosed pic. 5470126

[Kim_Howie]

This one is dated B12 & the disc is dated B17 0

[Mr70]

BarnFind
No,the "70" in the box number does not denote the year.That's just a coincedence.
I'm with Kim..that's the number 5.

[JHS]

[ QUOTE ]
I still think they are 54 not 64, enclosed pic. 5470126

[/ QUOTE ]

Kim,

I agree that your pic looks like a 5, I will post a pic of the number on the calipers I bought when I get them. I really have no clue which is correct but am at the point that I will just go with what I have. I appreciate everyone's input and it's not like this is a life or death issue, unless they don't stop the car when I need them to!

[Kim_Howie]

Joe,

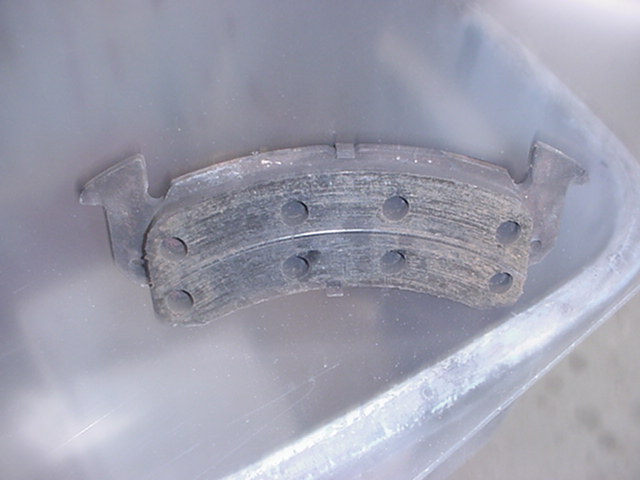

I have no idea either, here is pics of the brake pads.
They look new and GM

[Kim_Howie]

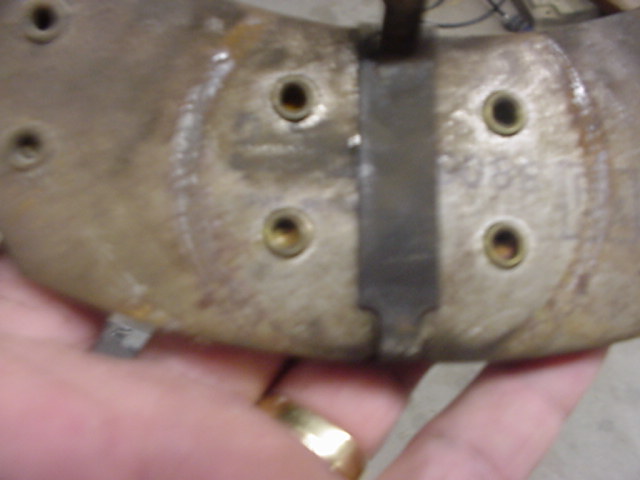

#2

[Kim_Howie]

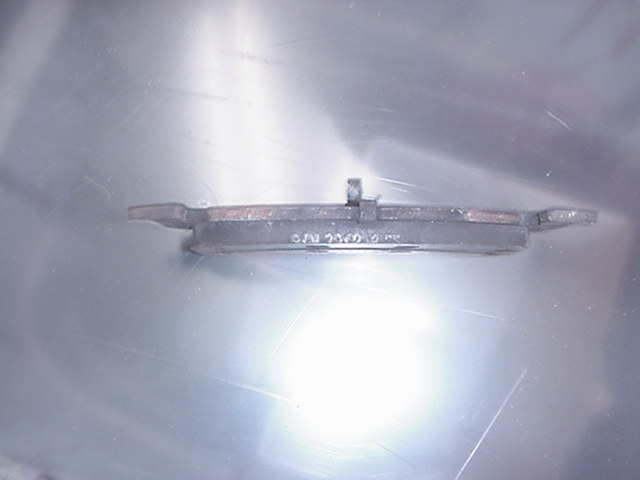

#3

[USER-3965175]

The correct casting numbers for 1970 Camaro calipers are 5470125 for the left side and 5470128 for the right side as shown in the pics below

The casting numbers on many 1970 Camaro calipers are very difficult to read. The first and last digit of the 5470125 casting number can look like the number 6 when in fact they are the number 5 as shown in the pics below

The first digit number 5 of the 5470128 casting number can look like the number 6 with a really bad casting but with a more crisp casting the actual number is 5 as shown in the pic below

The big problem with the number 5 is the bottom curls around almost to the point of connecting and on some they do connect which makes it look like the number 6, however a 6 is curved at the top and the number 5 is straight across the top

I have included pics of 1970 Camaro calipers with the best looking casting numbers to show they are in fact 5470125 L and 5470128 R

USER-3965175

[Mr70]

Very good pictures.
I think the right side is actually 5470126.
