Silly Nova question

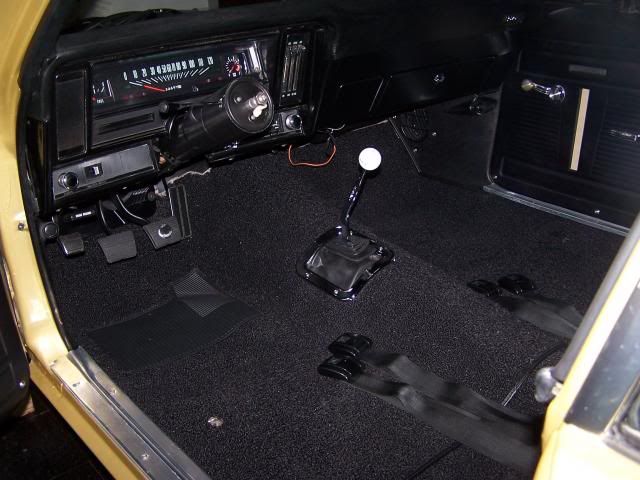

I went from an automatic to a 4 speed, with the 69 Nova. Had to change the pedals of course. They came from a 72 Nova, I was told. The brake and clutch pedals are at the same height. My Chevelle and ElCamino both have the brake pedal lower than the clutch, which makes it easier to drive, because my foot doesn't hit the brake when I push the clutch. Maybe my feet are too big?..

Question: Are the Nova clutch and brake pedals all the same height, or do I have a unique issue here. The adjustment in the brake pedal is all the way in, so I can't lower the brake pedal any more, unless I pull the brake booster out, and thread the rod more.......but then the brake light switch wouldn't reach the pedal arm.

Are all Camaros and Novas like this?

http://i533.photobucket.com/albums/e...psb3ab3fd3.jpg

Re: Silly Nova question


Bill You BigFoot Sasquatch [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]

Isn`t there two clevis pin holes on the brake pedal arm....if not, could you drill another hole in the pedal....therefore changing the pedal height ever so slightly.

Just look at your El Camino, and measure the hole distance and duplicate.
Are you sure these pedals are not repops?

Dan

Re: Silly Nova question


I always thought 68-72 Nova shared the pedal assy with the first gen Camaro.

My clutch pedal is definitely higher than the brake pedal.

Re: Silly Nova question


My 70 Nova has the brake pedal about an inch or so lower that the clutch pedal. Original stuff.

Re: Silly Nova question


----Is there any way that the rod is a different length (diff part #) for power over non power???......Bill S

Re: Silly Nova question


My 1969 survivor nova has the clutch pedal higher and so does my 69 camaro. Both camaro and nova are about the same. I don't think I ever saw any Chevy where they were both the same height. Not that I can remember.

Re: Silly Nova question

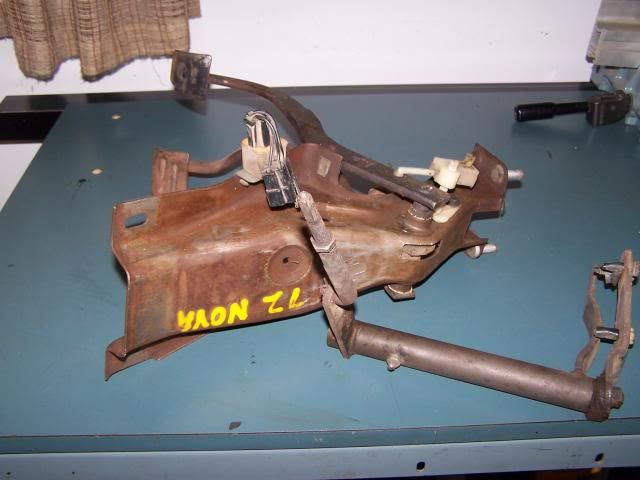

Not sure what the problem is. Dan I can't move the rod to the other hole. The angle would be way off, and really impossible to do. They are not repro's. I'm sure of that. They looked like they were 40 yrs old when I bought them. I can thread the rod farther down the rod coming from the booster, and lower the pedal, but then the brake light switch wouldn't reach the pedal. There's not much room in a Nova to move around. I'll have to pull the seat out and see if I can adjust the rod some more.....or maybe have a foot reduction??

http://i533.photobucket.com/albums/e...ps867df580.jpg

Re: Silly Nova question


The Yenko Deuce I had -- the brake pedal was approx 1.5&quot; to 2&quot; lower than the clutch.

Hope that helps ya' ... The TAZ

Re: Silly Nova question


Hi Bill,

I was going to post a reply earlier today but without seeing the car I hate to rely on memory. We met at Carlyle back in June and I own the red 68 Nova SS. I looked at the brake/clutch pedal this evening and the clutch pedal is about 1/2 inch above the brake pedal. This car is an untouched original. Maybe a foot reduction is in order. Alternatively, if you put your left foot to the left of the clutch pedal and push it to the floor, while holding the far right pedal to floor, and then release the left pedal this should solve your problem. After all this is what it's all about! LOL.

Take care.

Dave

Re: Silly Nova question


Bill,

BTW the interior looks really nice. Lets see some pics of the rest of the car please.

Dave
