427 GM Deep Performance Oil Pan - 6 quart GM #3879633 - Page 5

**STEFS** · #41 05-14-2019, 02:10 AM

I have the correct trays and a correct oil pan

**68 DANA** · #42 05-16-2019, 03:04 AM

Quote:

Originally Posted by Hawkeye

Congratulations!!! Did you also get the studs for the windage tray.
I would like to know the length of them. Also if you could post some photos that would be great.
Thanks,
Marty

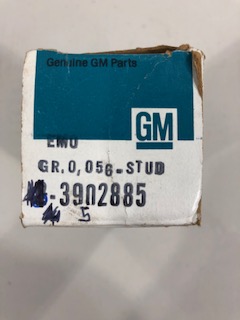

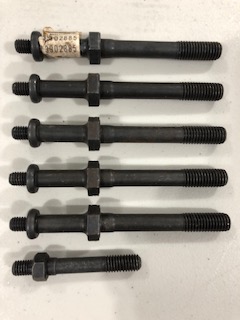

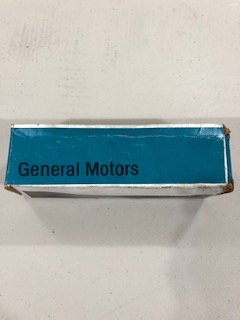

Here you go Marty. The long bolts are 5-5/8" in length and the short bolt is 3-1/4" in length. I hope this helps. Let me know if you need anything else.

**Hawkeye** · #43 05-17-2019, 12:08 PM

Thank you for the photos and the measurements. Does the NOS oil pump and tube have any markings different from the photos previously posted?
Congrats again on your finds.

Thanks,
Marty

**68 DANA** · #44 05-18-2019, 11:42 PM

The NOS pump that was located is exactly like the one previously posted.
