  #1
Old 02-23-2022, 10:57 AM
BCreekDave BCreekDave is offline
Senior Member

Join Date: Sep 2016
Location: Dayton Ohio
Posts: 929
Thanks: 318
Thanked 450 Times in 252 Posts
Default
Quote:
Originally Posted by L72copocamaro View Post
How does the RS not require front bumper guards yet the non RS has them?
On the RS, they added several additional reinforcement bars that were not there in 1972 to meet the new crash requirements. The bars from the radiator support to the front fenders were also longer so the engineers did their diligence and testing.
__________________
70Z28 04B Norwood Forest Green-white Stripes Black DeLuxe Interior
Owned since 1978 - First Car
Reply With Quote
The Following User Says Thank You to BCreekDave For This Useful Post:
L72copocamaro (02-24-2022)
  #2
Old 02-23-2022, 12:35 PM
McCune McCune is offline
Yenko Contributing Member

Join Date: Apr 2017
Location: St.George,Utah
Posts: 500
Thanks: 541
Thanked 301 Times in 120 Posts
Default
Quote:
Originally Posted by L72copocamaro View Post
How does the RS not require front bumper guards yet the non RS has them?

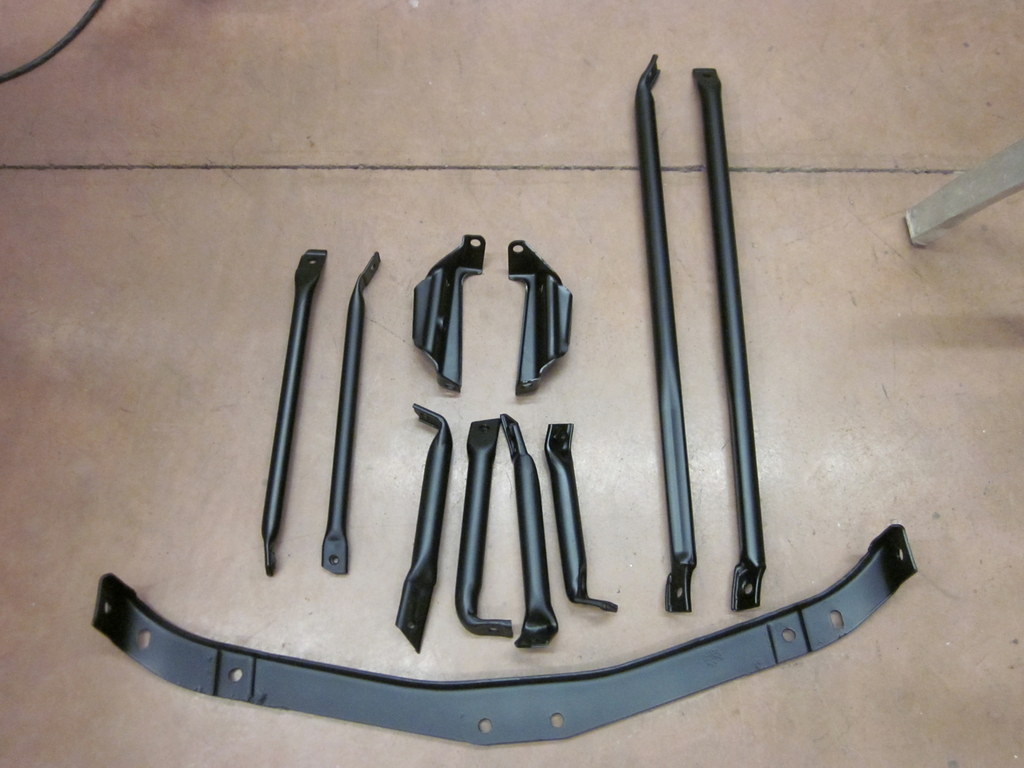

With these 11 unique support bars found on only the 73 RS. Very hard to find if you are missing them.
Attached Images

Reply With Quote
The Following 3 Users Say Thank You to McCune For This Useful Post:
L72copocamaro (02-24-2022), markinnaples (02-23-2022), Xplantdad (02-23-2022)
  #3
Old 02-23-2022, 12:11 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,241 Times in 578 Posts
Default

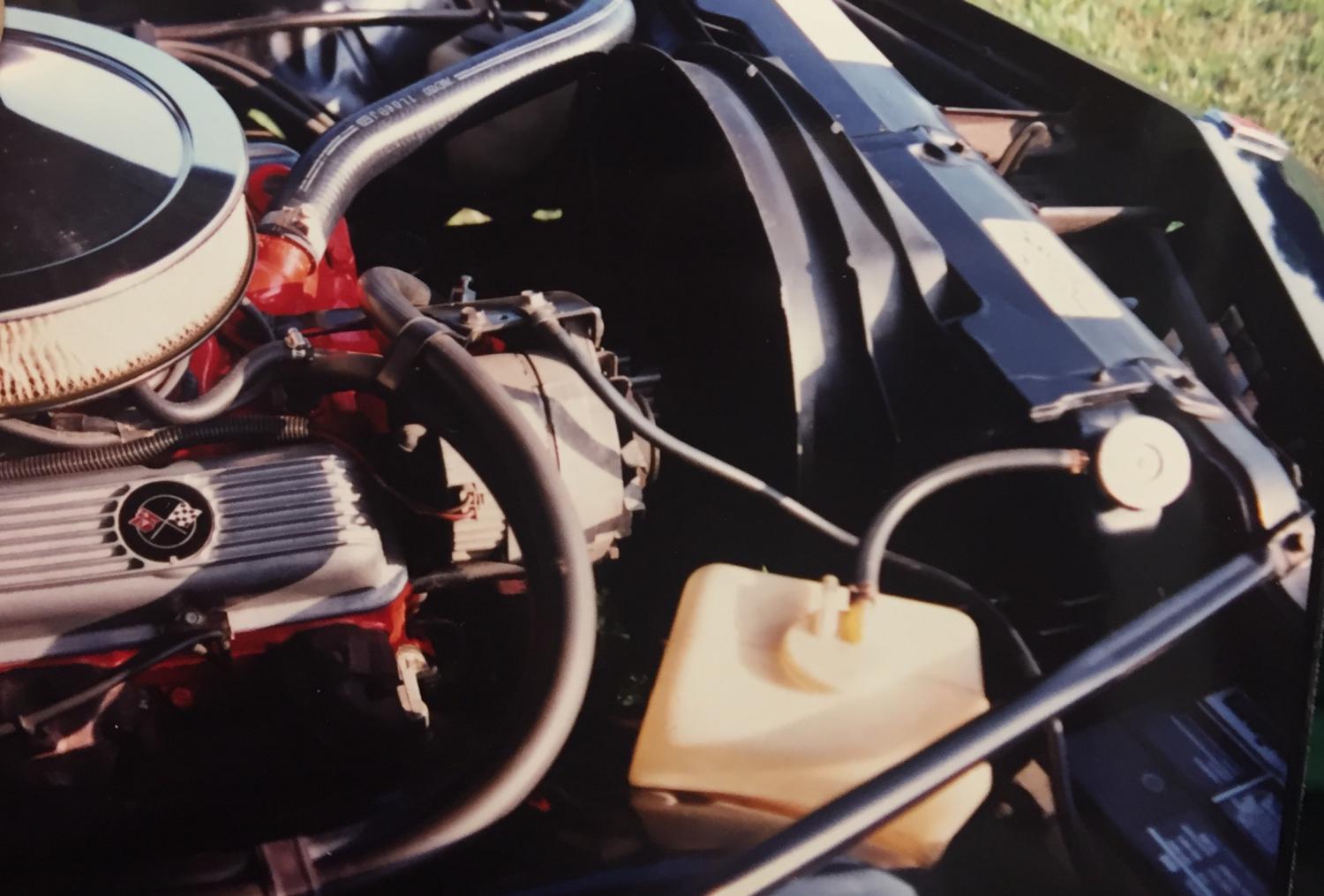

These bars:

Left and right fender to the core support.
Left and right core support to the reinforced hood latch which was connected to the header panel.
Attached Images

Last edited by 70 copo; 02-23-2022 at 12:14 PM.
Reply With Quote
The Following User Says Thank You to 70 copo For This Useful Post:
L72copocamaro (02-24-2022)
  #4
Old 02-24-2022, 01:18 AM
cruiserofland's Avatar
cruiserofland cruiserofland is offline
Yenko Contributing Member

Join Date: Sep 2019
Location: Bay Area, California
Posts: 326
Thanks: 979
Thanked 482 Times in 122 Posts
Default
Quote:
Originally Posted by 70 copo View Post
These bars:

Left and right fender to the core support.
Left and right core support to the reinforced hood latch which was connected to the header panel.
Not sure when the photo was taken but this also seems like a great color photo example of the factory finish on valve covers...
__________________
~Matt
'69 Z/28 RS
'77 F100
'83 FJ60
'10 WC50
‘24 J250
Reply With Quote
  #5
Old 02-24-2022, 02:10 AM
McCune McCune is offline
Yenko Contributing Member

Join Date: Apr 2017
Location: St.George,Utah
Posts: 500
Thanks: 541
Thanked 301 Times in 120 Posts
Default
Quote:
Originally Posted by cruiserofland View Post
Not sure when the photo was taken but this also seems like a great color photo example of the factory finish on valve covers...
I refinished mine and think they are close.
Attached Images

Reply With Quote
The Following 5 Users Say Thank You to McCune For This Useful Post:
cruiserofland (02-24-2022), L16pilot (02-24-2022), L78_Nova (02-24-2022), RPOLS3 (02-28-2022), Xplantdad (02-24-2022)
  #6
Old 02-24-2022, 12:29 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,241 Times in 578 Posts
Default
Quote:
Originally Posted by cruiserofland View Post
Not sure when the photo was taken but this also seems like a great color photo example of the factory finish on valve covers...

That's my old car. In the family since new. Sold in 1999 with 21,000 original miles.
Reply With Quote
The Following User Says Thank You to 70 copo For This Useful Post:
cruiserofland (02-24-2022)
  #7
Old 02-23-2022, 12:26 PM
TimG TimG is offline
Yenko Contributing Member

Join Date: Sep 2001
Location: Austin, TX
Posts: 4,478
Thanks: 1
Thanked 2,444 Times in 957 Posts
Default
My roommate in college had a silver 1973 RS Type LT Z28 that he bought used in 1976. It was a great car and he argued up and down with people that it was a Z28. He finally had stripes painted on it. It was a very fast car.
Reply With Quote
  #8
Old 02-23-2022, 12:33 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,241 Times in 578 Posts
Default
A 73 or 74 Z28 with a 4:10 gear swap was a fast car for that time for sure.
Reply With Quote
  #9
Old 02-24-2022, 03:27 AM
Gary Anderson's Avatar
Gary Anderson Gary Anderson is offline
Member

Join Date: Apr 2010
Location: hometown of Lester Polsfuss
Posts: 88
Thanks: 15
Thanked 58 Times in 25 Posts
Default
Quote:
Originally Posted by 70 copo View Post
A 73 or 74 Z28 with a 4:10 gear swap was a fast car for that time for sure.
74's are at least 300 lbs. heavier.
Reply With Quote
  #10
Old 02-23-2022, 12:41 PM
70 copo 70 copo is offline
Senior Member

Join Date: Oct 2000
Location: chillicothe Ohio 45601
Posts: 3,834
Thanks: 219
Thanked 1,241 Times in 578 Posts
Default
Yes the remaining bars are core support to the header along with the reinforcement plate.
Reply With Quote
