68 Nova-Lower firewall body mount splash shields?

[earntaz]

John - excellent pics ... clears up many Qs. Thanks for sharing -- TAZ

[Furback]

I spent at least 1 hour yesterday searching my Nova oem parts manual. Cannot find this part in it.

[Furback]

Well I found the shield in the assembly manual. All the part numbers are there boys.

[earntaz]

Looked through my 71 assembly manual and it is not there -- 68 Nova only?

[Furback]

My 71SS was a virgin car when I got it. And it did not have this shield. Note in the assembly manual, it states that it is Left Hand only. So that's why there is an absence of a right side shield on my 68 parts car. Could be a 68 only part. Someone should check a 69 assembly manual.

[Furback]

1st Gen Camaro also had these shields, apparently the same part numbers from what I can find out. You can buy the clips I see. Not sure where.

[1969L78Nova]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: earntaz</div><div class="ubbcode-body">Looked through my 71 assembly manual and it is not there -- 68 Nova only? </div></div>

Looked through my 69 assembly manual and it not there also.

[WILMASBOYL78]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: 1969L78Nova</div><div class="ubbcode-body"><div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: earntaz</div><div class="ubbcode-body">Looked through my 71 assembly manual and it is not there -- 68 Nova only? </div></div>

Looked through my 69 assembly manual and it not there also. </div></div>

The 69 granny car I sold Bill Rose had a factory installed rubber flap on the driver's side. I always thought the flap was there to shield the automatic transmission linkage assembly. I guess it could shield other components as well. Perhaps it was only on automatic cars???

wilma

[m22mike]

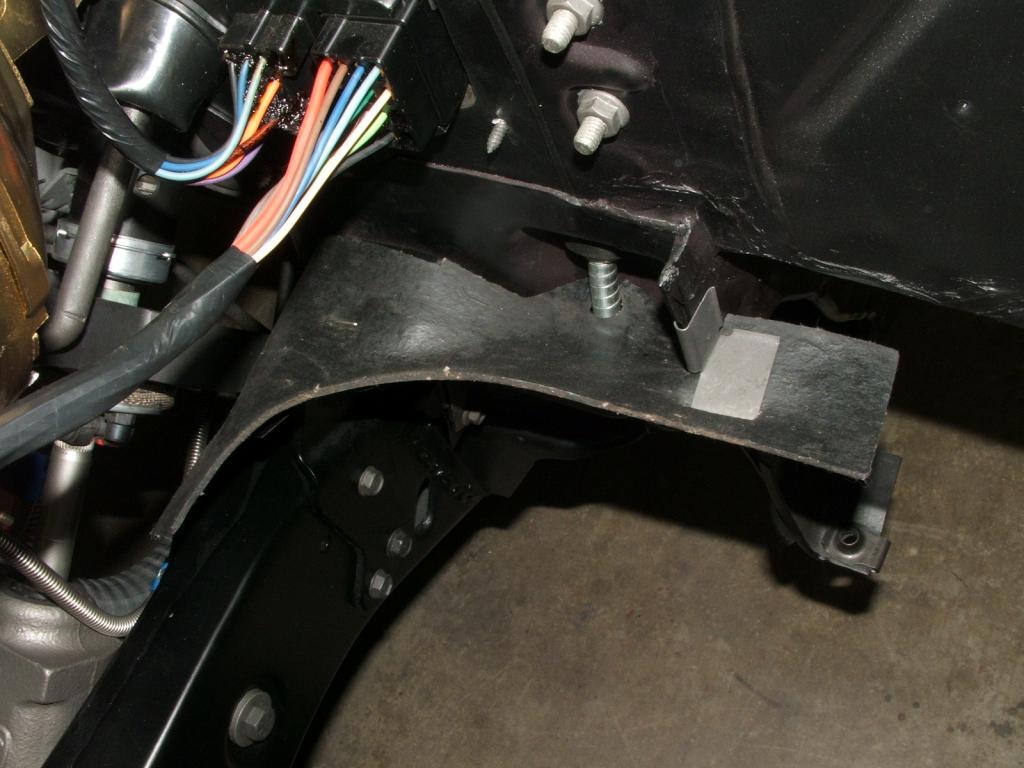

A little slow in chimming in here, These shots are form the Grady 69 L78 4 speed Nova built in Nov. 68, restored in 07 08, car had around 7K miles. As far as I know this splash was there to protect the bulkhead connector for water. Think about it.. [img]<<GRAEMLIN_URL>>/hmmm.gif[/img] Same as every 69 Camaro I have done too.

before and after

[JRSully]

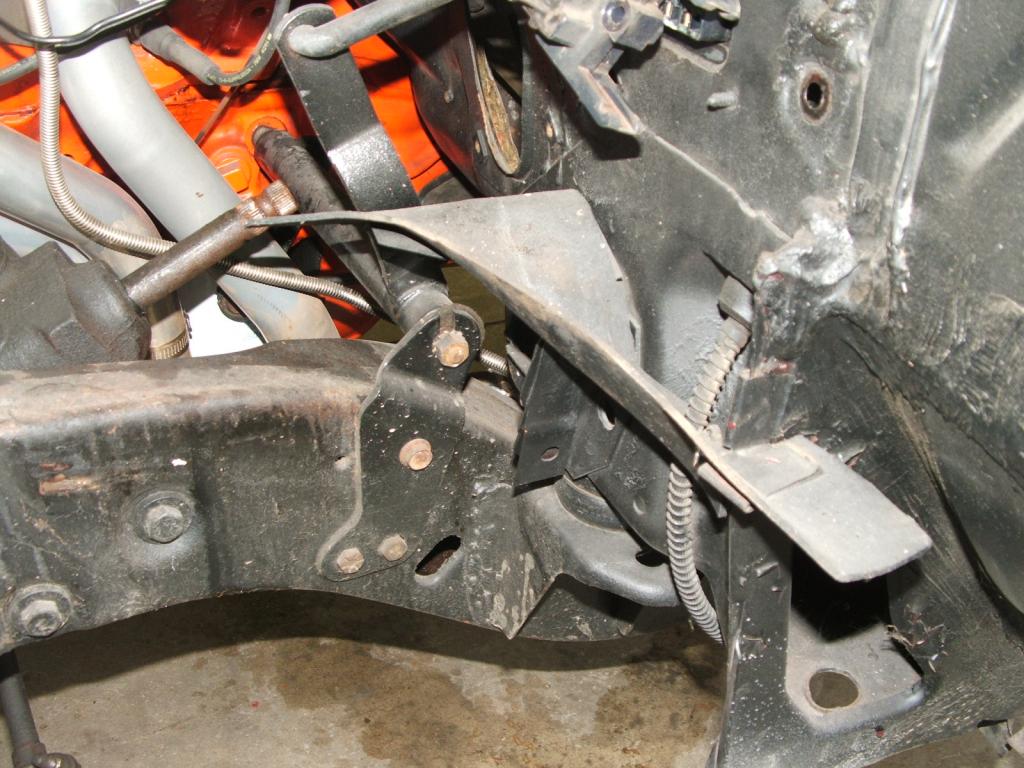

I parted a 69 L78 Nova that had this flap (orig 4 spd)and the 69 L78 Nova I sold had it I believe. I still have one off these kicking around the garage somewhere, sold one recently
