#1
03-29-2009, 04:25 AM
|
|||
|
|||
70 BB Camaro Fan Shroud
I have a chance to get a NOS 70 BB Camaro fan shroud, how can I tell if it is really a original one and not a newer replacement or a rebop one?
__________________
 72 SS 350 4spd Camaro 74 Z28 Automatic 80 Z28 4spd 94 Z28 Automatic
|
|
#2
03-29-2009, 06:02 AM
|
|||
|
|||
|
Re: 70 BB Camaro Fan Shroud
G.M. one piece shroud has cast in part # ending with 920......
__________________
Chuck Sharin [email protected] Auburn,WA (30 miles South of Seattle) 70 Camaro R/S Z-28, L-78, R/S SS 69 Camaro COPO "recreation"
|
|
#3
03-29-2009, 04:17 PM
|
|||
|
|||
|
Re: 70 BB Camaro Fan Shroud
Hope Im not stealing this thread a bit, but I thought a pic might help....A few years ago, I had pulled my radiator because of a suspected leak. Sure enough the rad had a pin hole. So I took the car to a shop to have the rad. repaired along with some exhaust work that was needed at the time....anyway, the shop insisted that I had the wrong fan shroud and that they could not put the car back together correctly....I went to the shop and my parts were just laying everywhere...anyway, I gathered up my parts and took my car home...I never could get the shroud to fit right, so I thought maybe it got switched with another??the fan shroud is still not on the car after all these years...as I thought they had possibly lost my shroud or something and/or inadvertenly switched it. Ive had the car so long, I always assumed it was the original, but being somewhat a day two type car, you really never know.

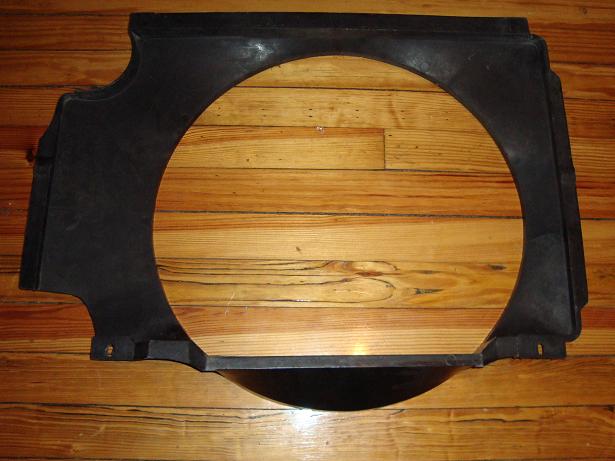

Anyway, I went out in the garage and got the shroud and took a few picss.....I must have something else wrong that it does not fit....?? Hope this helps to see what one looks like also...
|
|
#5
03-29-2009, 04:22 PM
|
|||
|
|||
|
Re: 70 BB Camaro Fan Shroud
another pic.....
I was wondering a few things....Chuck, or anyone else...do you have a pic of a shroud in the car?? I think maybe I have the top metal rad support cover incorrect...??? ...and it looks like my shroud may be trimmed on the one corner?? correct?? Thanks, Max
|
|
#6
03-29-2009, 04:29 PM
|
|||
|
|||
|
Re: 70 BB Camaro Fan Shroud
[ QUOTE ]
I have a chance to get a NOS 70 BB Camaro fan shroud, how can I tell if it is really a original one and not a newer replacement or a rebop one? [/ QUOTE ] It would help if the original GM tag was attached....you may be able to get a date code off the tag or box...or do they come in boxes??
|
|
#8
03-29-2009, 07:27 PM
|
|||
|
|||
|
Re: 70 BB Camaro Fan Shroud
Tag? Box? LOL. This from a BIG pile of stuff my B-in law went to look at near some property he was surveying. Nothing was boxed, it was all according to the owners memory.
__________________
72 SS 350 4spd Camaro 74 Z28 Automatic 80 Z28 4spd 94 Z28 Automatic
|
|
#9
03-29-2009, 07:29 PM
|
|||
|
|||
|
Re: 70 BB Camaro Fan Shroud
[ QUOTE ]
Wait a minute...  [/ QUOTE ] Sorry, if its really NOS, it is going on my 72 to replace the one that has caution molded into it.
__________________
72 SS 350 4spd Camaro 74 Z28 Automatic 80 Z28 4spd 94 Z28 Automatic
|
|
#10
03-29-2009, 07:29 PM
|
|||
|
|||
|
Re: 70 BB Camaro Fan Shroud
[ QUOTE ]
another pic..... I was wondering a few things....Chuck, or anyone else...do you have a pic of a shroud in the car?? I think maybe I have the top metal rad support cover incorrect...??? ...and it looks like my shroud may be trimmed on the one corner?? correct?? Thanks, Max [/ QUOTE ] Yes, it looks like your shroud has the corner on the top passenger side cut out. The bottom looks fine, that's to clear the steering box. Do you have a picture of your top metal cover?
__________________
69 Z28 JL8, #'s match - being restored
|
|
|
|
