Can anyone identify this pulley???

**dvss1** · #1 11-02-2007, 05:21 AM

I have a deep groove dual pulley with no number on it. I have this style pulley with the 2 welds on a corvette. I also had another person tell me its z16 but i really dont know.
pulley is 7 inches in diameter and it's 3 inches tall

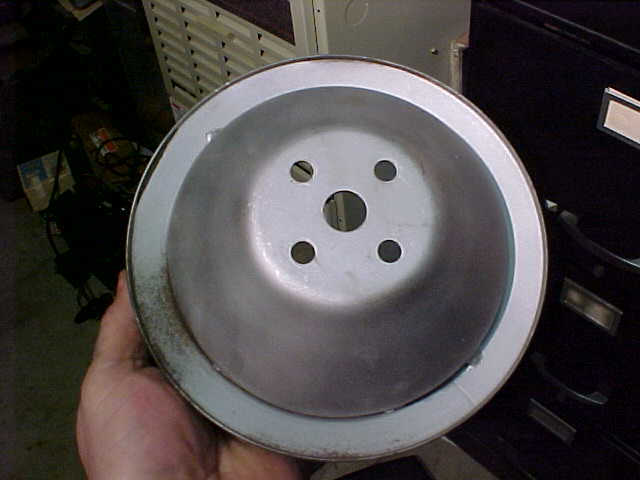

Here are some pics

**dvss1** · #2 11-02-2007, 05:21 AM

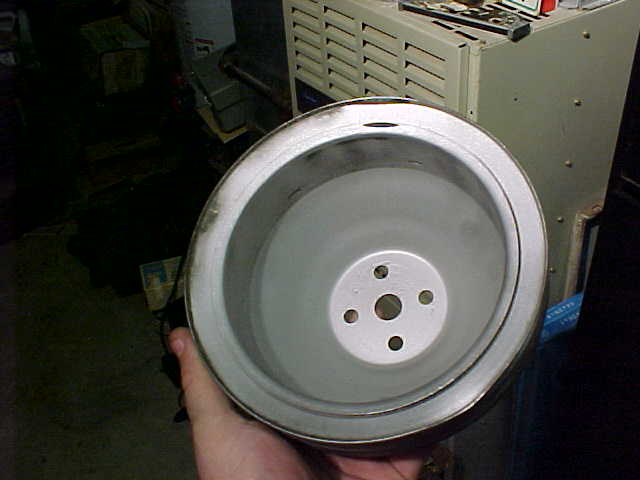

another pic

**dvss1** · #3 11-02-2007, 05:24 AM

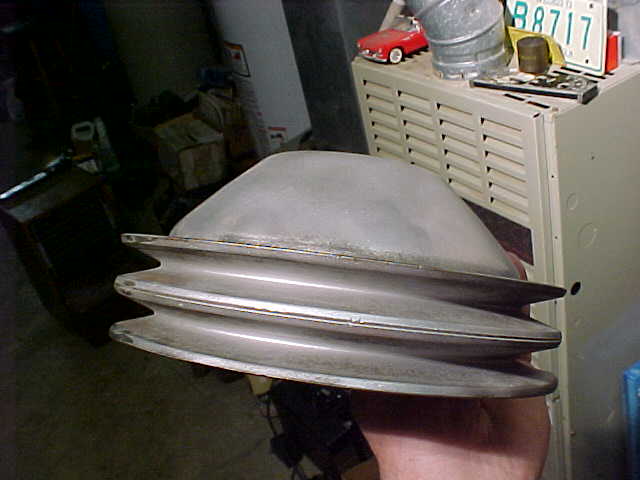

Here's another

**dvss1** · #4 11-02-2007, 05:24 AM

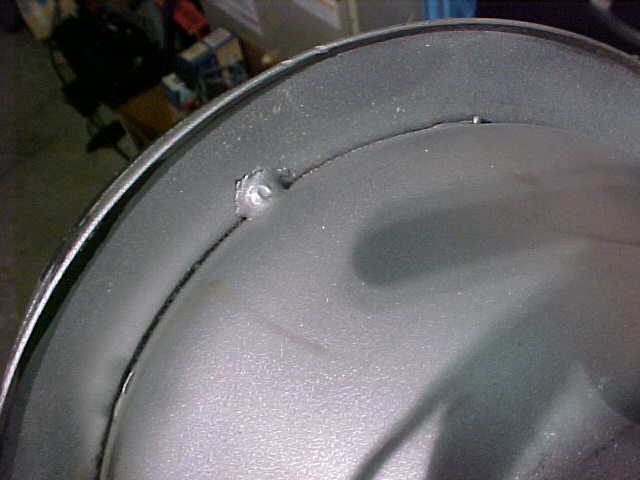

last one

**AMANOCC** · #5 11-02-2007, 05:53 AM

Z/16 fan pulley is single groove, that is early version of the 67-8 Z/28, corvette, "245" fan pulley, could be early BB (65-66) vette or 409.
Can I have it

**AMANOCC** · #6 11-02-2007, 06:06 AM

The early BB corvette pulley # is 3864480CV, I think I have had one that was unstamped like the one you have. I have a 480 in front of me, 2 7/8 inches tall, 7 1/8 wide hope that helps.

**dvss1** · #7 11-05-2007, 05:30 AM

thanks for the info I appreciate it.
Dave

Verne_Frantz · #8 11-05-2007, 06:35 PM

Dave,
I'd agree that it's probably an early version of the 245 pulley. But the 245 was introduced for the '64 409, so by the time '67 rolled around, I can't imagine that pulley was in use anymore. My guess would be the only correct application for it would be very early hi-perf '64 409, or possibly even very late '63.

Verne
