BOLT! Heater hose bracket to alternator bracket.

[DarrenX33]

Anybody have an self tapping 'E' bolt laying around? Or can point me in the right direction for a quality reproduction of one?

[396L35]

Darren come over to my house before the reunion and we can find all the stuff you need, and if I dont have it Greg will.. Mark

[Mr70]

Paragon has a few "E" bolt heads in their catalog.
Here is one.
http://www.corvette-paragon.com/cata...C-27BF3BBDD1EF

[DarrenX33]

Thanks Rick but that's for the harmonic balancer. Too big I believe.

Mark will do. You seem to always come thru for me. I appreciate it.

[SS427]

Darren, if Mark does not have one let me know and I will mail you one as I am pretty sure I have an extra somewhere.
Rick

[Enoch]

Darren The bolt you need can be bought from a Corvette supplier like Paragon. Just ask for the ground strap bolt for a mid-year. Also the front crossover line clip bolts for a 67 corvette. It is 1/4-20 thread with a notch cut out on the first 3-4 threads for self tapping. If you can't get one I have a hundred or so original replated ones I've collected over the years. Hope this helps.
Thanks, Rich.

[Dusk Blue Z]

Darren, I don't think you need that bolt or clip on a Z. The hole where it would install was never tapped on my 28K mile car. Check to see if yours is. I have looked at pictures of serveral untouched original cars, no clip... Sheet M3 in the assembly manual does not show one, but it does show up if the car has AC. Could this be the next "Caution Fan" sticker on a Z/28.

I followed your progress over the winter of your car, it looks great. Keep up the good work.

Mike

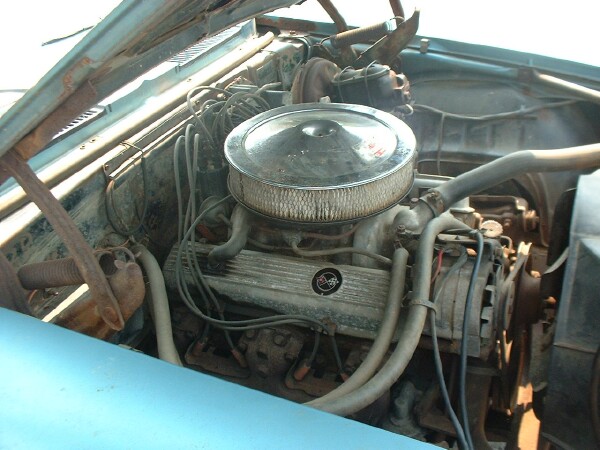

Attachment is not my car, but 18K original.

[DarrenX33]

Hmm. The Kenny P car. That never caught my eye. Let me check some more of my vintage photos.

[Dusk Blue Z]

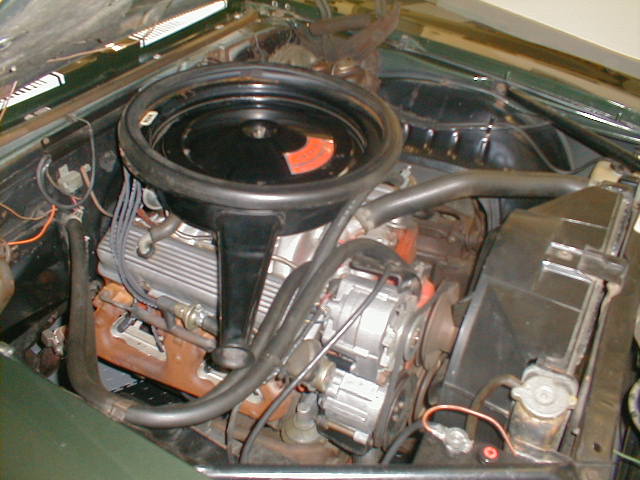

One more picture.

[SS427]

I do not know Camaros like I do Chevelles but on the Chevelles, this bolt/bracket depended on plant and build date and to some degree, the day of the week....... Could Camaros be similar? Just adding food for thought.
