help identifying a couple of parts please?

**AnthonyS** · #1 04-17-2021, 04:49 PM

Hi Gang, found some parts and wanted to know if anyone can assist in identifying...

first is a chrome single snorkel air cleaner lid - stamped "front" on top.

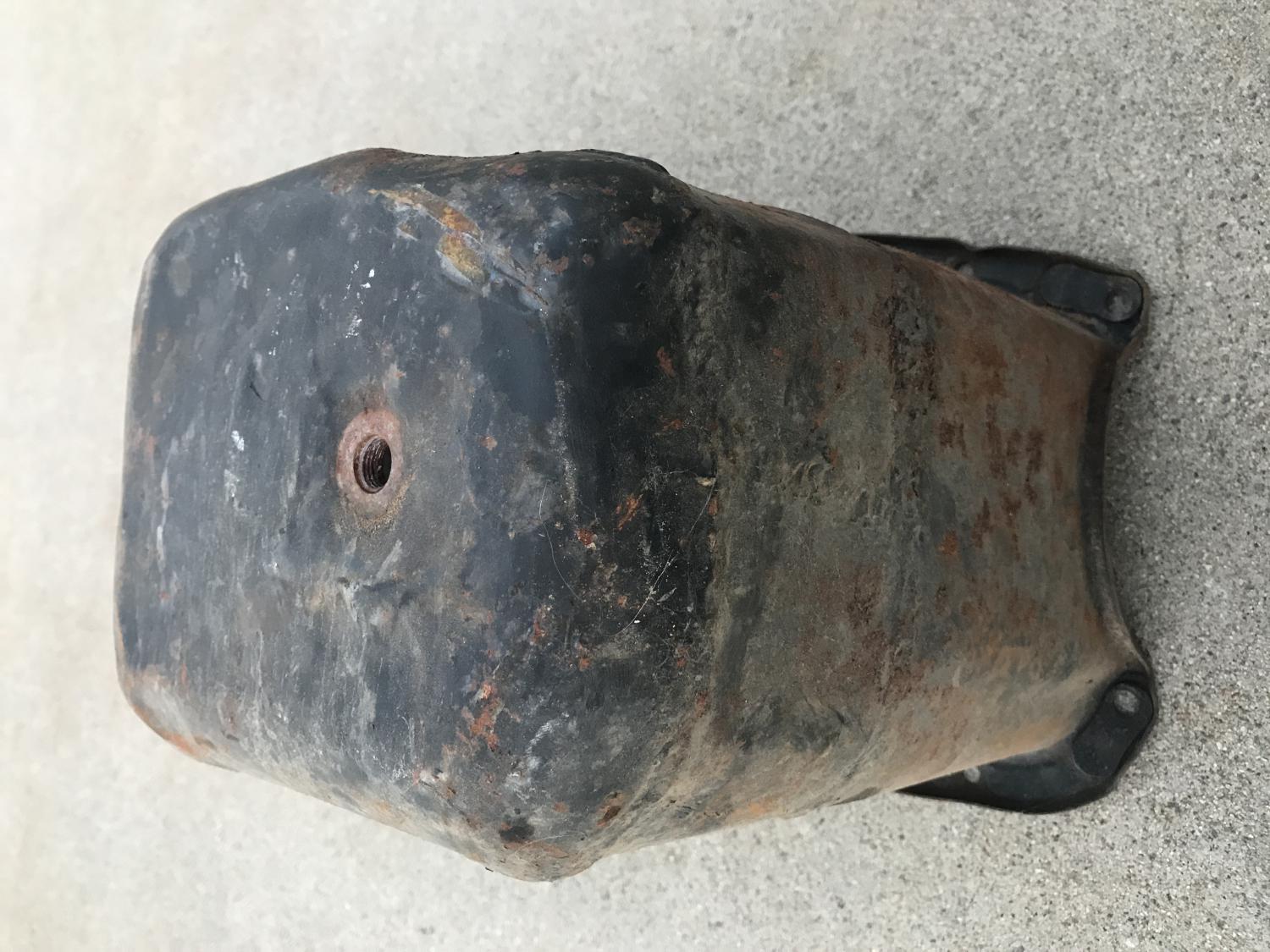

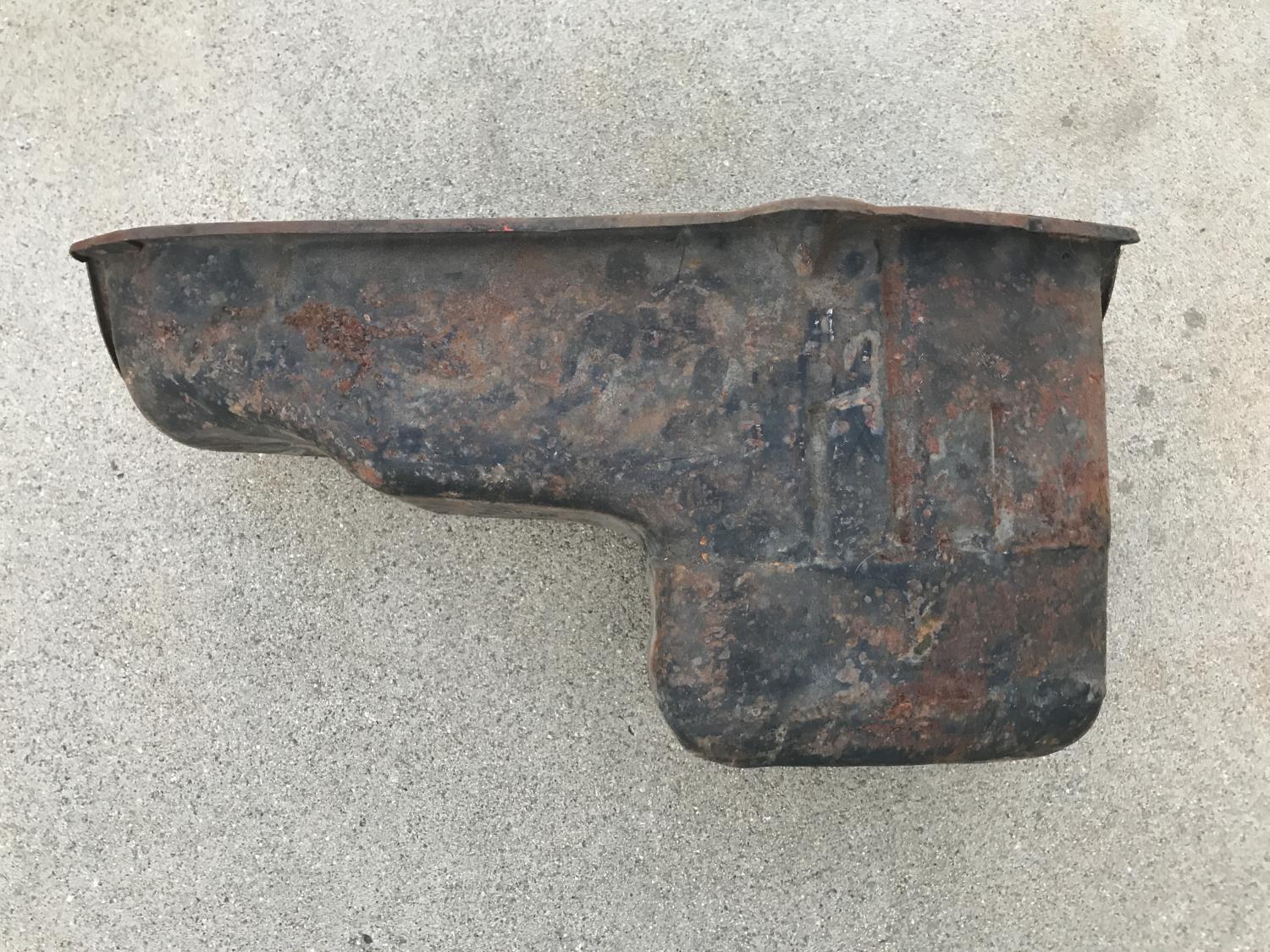

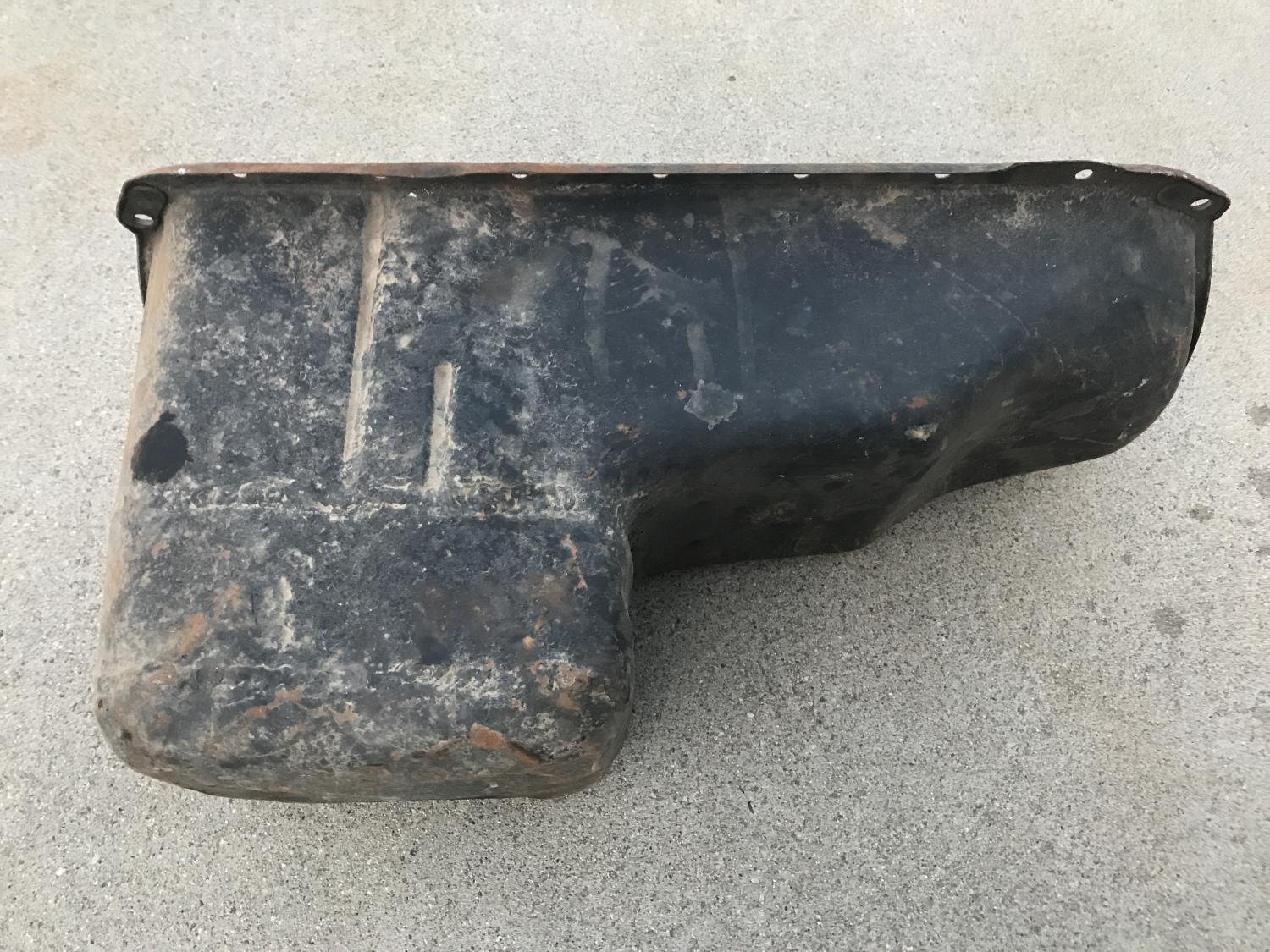

second is a trap door oil pan - not sure it's SBC and it's been extended / welded to create a deep sump, not unlike the GM Performance OTC BBC pans that we've all seen (3879633). Driver side dip stick. Is this a SBC pan? The bolt pattern looks different, there's reinforcements in each corner. Is it a GM pan / is it aftermarket or a modified pan / one of a kind. Looks almost homemade too. That windage tray was found with it.

Any help is appreciated of course.

Thanks everyone!
Anthony

**AnthonyS** · #2 04-17-2021, 04:54 PM

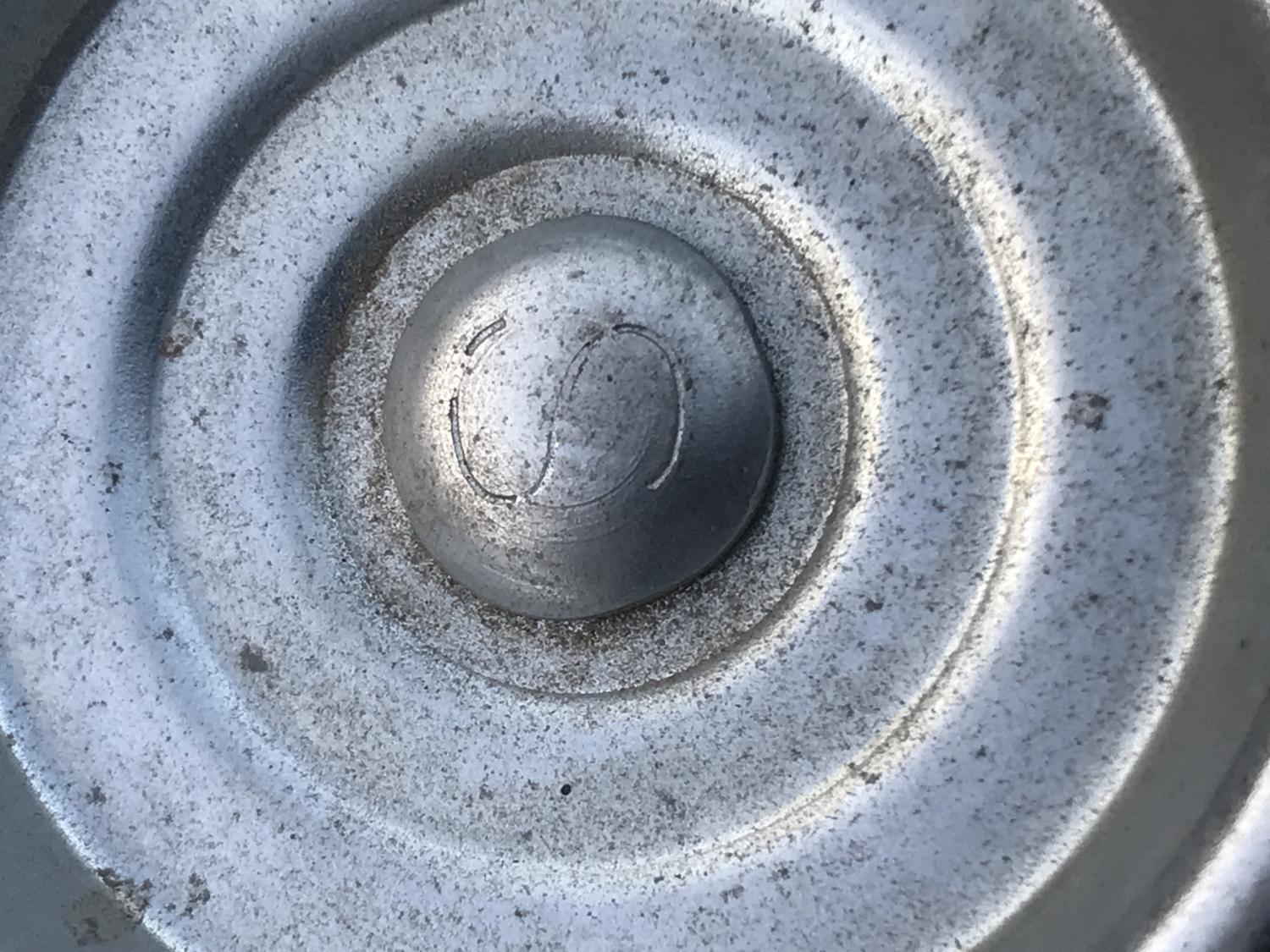

Also found this oil cap extension - clearly NOS and the cap at least looks like original GM - with the "S" stamp for Stant I believe. Both have screw in fittings. Is this a GM piece?

Thanks again Gang!
Anthony

**SuperNovaSS** · #3 04-17-2021, 05:20 PM

I believe the oil cap extension may be 389 Pontiac with A/C. That is just from memory so I could be off.
The air cleaner may be the same application.
Jason

**R68GTO** · #4 04-17-2021, 08:21 PM

I think the air cleaner is 64 GTO

rszmjt · #5 04-18-2021, 12:08 AM

Windage tray looks like a 64/65 Corvette 327/365 HP, except the hole doesn’t look that familiar

The Following User Says Thank You to SuperNovaSS For This Useful Post:
AnthonyS (04-17-2021)

The Following User Says Thank You to R68GTO For This Useful Post:
AnthonyS (04-18-2021)
