Correct 69 Camaro 427 Oil Dip Stick Style
Ok member’s out there. What is the correct Oil Dipstick Handle.
Is it the Round Handle Yellow Tip or the Flat Handle Yellow Tip. Any help would be greatly appreciated. Thank You!
__________________
1969 Fathom Green Yenko Camaro 4-Speed 1969 Garnet Red RS/Z28 Crossram JL8 4-speed ( Under Restoration ) Last edited by my70454ss; 12-24-2017 at 01:57 PM.
|
|
#2
12-24-2017, 01:55 PM
|
||||
|
||||
|
Flat handle...Part#3925599,installed on the assembly line as original equipment on:
1968 Camaro-Nova-Chevelle w/396cid. 1969 Camaro-Nova-Chevelle w/396cid. & 427cid. 1970 ALL vehicles w/396cid. & 454cid. Measures roughly 24-1/4 long. Shows USE GM6041-M-QUALITY MS OIL E near the bottom of the stick. Last edited by Mr70; 12-24-2017 at 02:00 PM.
|
| The Following User Says Thank You to Mr70 For This Useful Post: | ||
bbbentley (12-24-2017) | ||
|
#3
12-24-2017, 02:01 PM
|
|||
|
|||
|
Hi Mr70
Thank you very much for your answer. Rodger
__________________
1969 Fathom Green Yenko Camaro 4-Speed 1969 Garnet Red RS/Z28 Crossram JL8 4-speed ( Under Restoration )
|
|
#4
12-28-2017, 08:45 PM
|
|||
|
|||
|

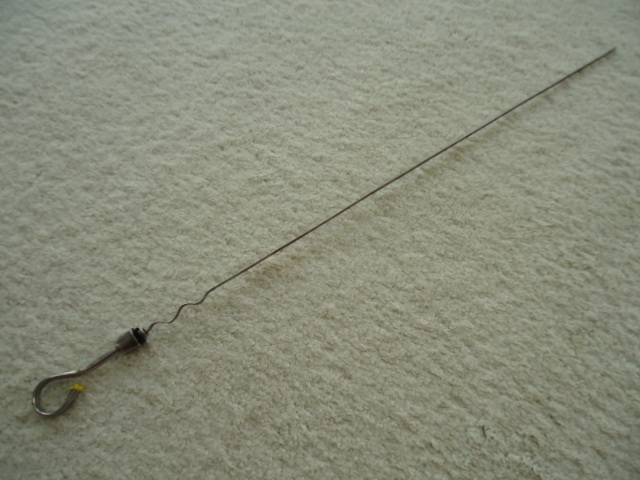

I have a dipstick with the GRAY tip. Does anyone know what that is for? Thanks
|
|
#5
12-28-2017, 11:33 PM
|
||||
|
||||
|
How long is the gray tip? Sounds like 68 and earlier small block
__________________
69 Camaro RS/SS X22 4speed NOM but working on something special 69 Camaro x11 355 crossram m22 12 bolt 3.73's
|
|
#6
12-29-2017, 05:30 AM
|
|||
|
|||
|
Top of Handle to dipstick end is 22”.
|
|
#7
12-29-2017, 01:45 PM
|
||||
|
||||
|
22" sounds like a 67-68 sbc
__________________
69 Camaro RS/SS X22 4speed NOM but working on something special 69 Camaro x11 355 crossram m22 12 bolt 3.73's
|
|
#8
12-29-2017, 04:29 PM
|
|||
|
|||
|
I am looking for this exact dipstick and tube.Flat handle...Part#3925599,installed on the assembly line as original equipment on:
1968 Camaro-Nova-Chevelle w/396cid Is this one for sale by any chance?? Thanks and Happy New Year
__________________
Custom Cam /Engine Dyno and Spintron Operator at Brian Tooley Racing R@D 84 Mustang/Hertz Rent-a-Car 438CI 5.58@123 8.80@147 On Radials ALL MOTOR Powered by my 13 year olds engine program 68 NOVA 396-375 HP F.A.S.T. Project
|
|
|
|
