GM Body Shims

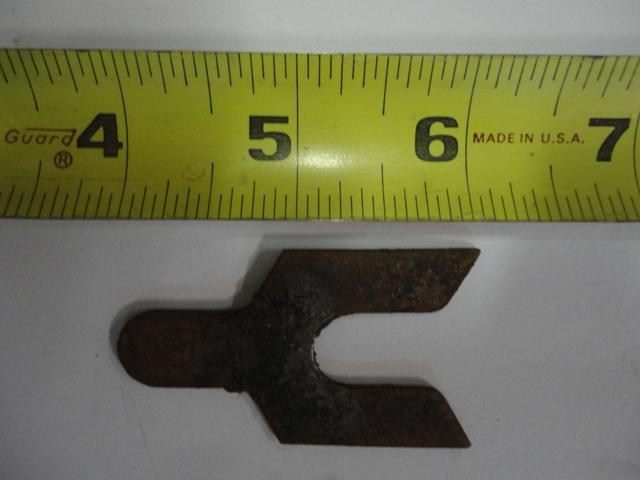

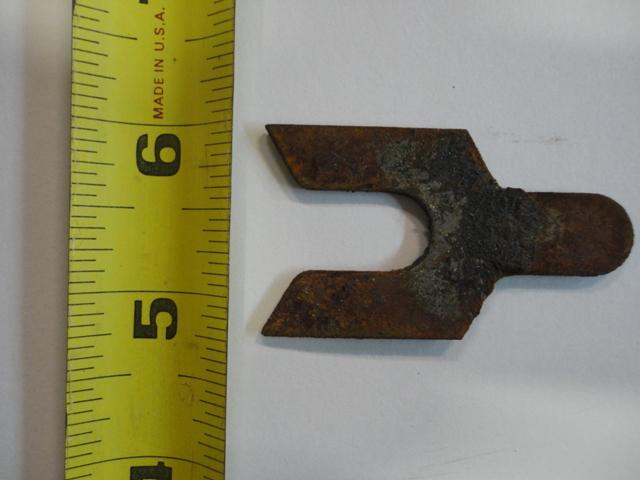

Looking for a "few" mint (no rust anyway...) or NOS original body shims that look like these, (~2" length) please PM if you can help.
Last edited by Edgemontvillage; 11-21-2017 at 05:20 PM.
|
|
#2
11-21-2017, 06:51 PM
|
|||
|
|||
|
shims
Never seen an original 1969 Camaro body shim like that. That shim is just a universal part.The original shims do not have that big tang. The repop shims are really good except they are plated silver. The original plating is grey/black phosphate.
|
|
#4
11-21-2017, 10:22 PM
|
||||
|
||||
|
Quote:
__________________
 69 SS/RS 396 M20 X22 Nor 12B,72B,712 bought 1979 FULL OWNER HISTORY 69 Dick Harrell tribute Day II 427 M20 4.10 X11 76 orig pnt, 711 67 Super Stock 302 Camaro re-creation
|
|
#5
11-22-2017, 02:27 AM
|
|||
|
|||
|
that shim is used on the 69 RS headlamp buckets where it attaches to the rad support.....used to help get the headlamp bucket assembly aligned so the doors fit nicely to the RS grill.
hard to find these.....very hard!
__________________
Eddie M Camaro-less 87 El Camino SS Few Ferrari's
|
|
#6
11-22-2017, 03:20 AM
|
|||
|
|||
|
Probably because everyone tosses them thinking they are alignment shims. Thanks for the info.
Jason
|
|
#7
11-22-2017, 12:19 PM
|
||||
|
||||
|
Eddie is correct, the shims I need are for a 1969 Camaro Rally Sport headlight bucket. I suspect these had other applications at GM as most items like it did. Below is a photo I took last weekend at MCACN of a shim pack from Mark B's 30,600 mile LOS built '69 Camaro RS/SS that was Vintage Certified. If you have any of these shims please PM

Last edited by Edgemontvillage; 11-22-2017 at 01:57 PM.
|
|
#8
11-26-2017, 01:42 AM
|
||||
|
||||
|
My 67 RS/SS had them as well. I will look through my fasteners and see if I have any.
Buddy
__________________
69 camaro Z-28 burnished brown X-77 bought 1978 70 camaro Z28 forest green M40 black vinyl roof PROJECT 99 camaro SS Hugger Orange 6speed no t-tops 1 of 54 11 cts-v black diamond edition wagon 556hp GONE 15 camaro Z/28 white AC brand new
|
|
#10
11-26-2017, 02:03 PM
|
||||
|
||||
|
Quote:
|
 |
|
|
