#1
|
||||
|
||||
![]()

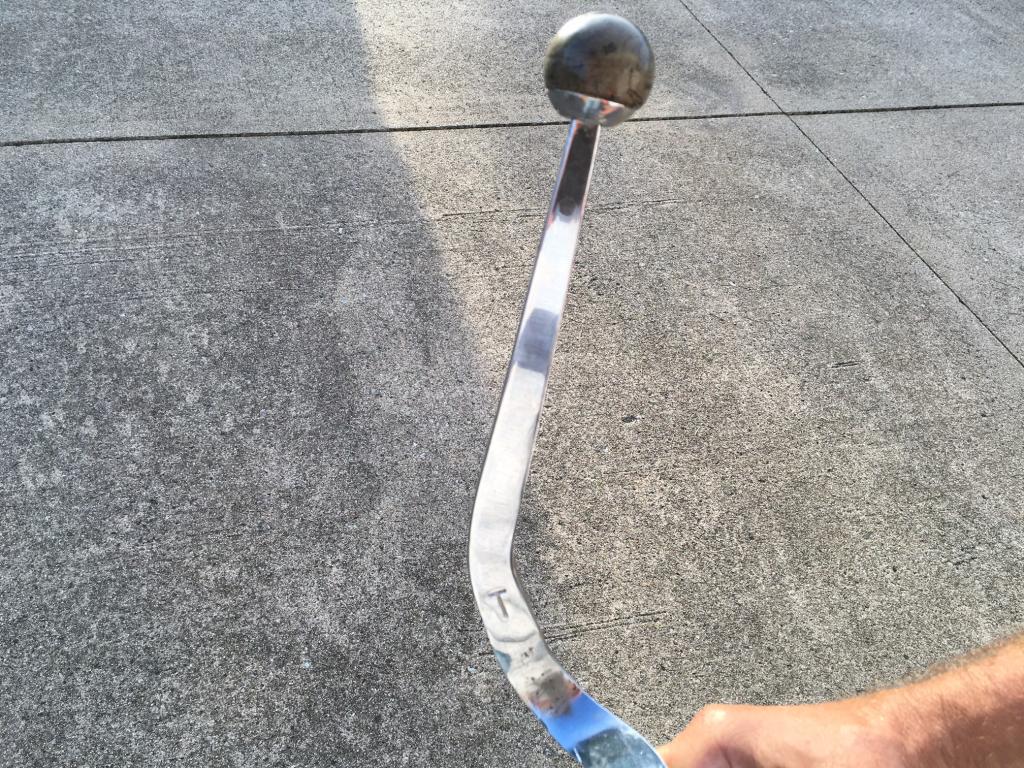

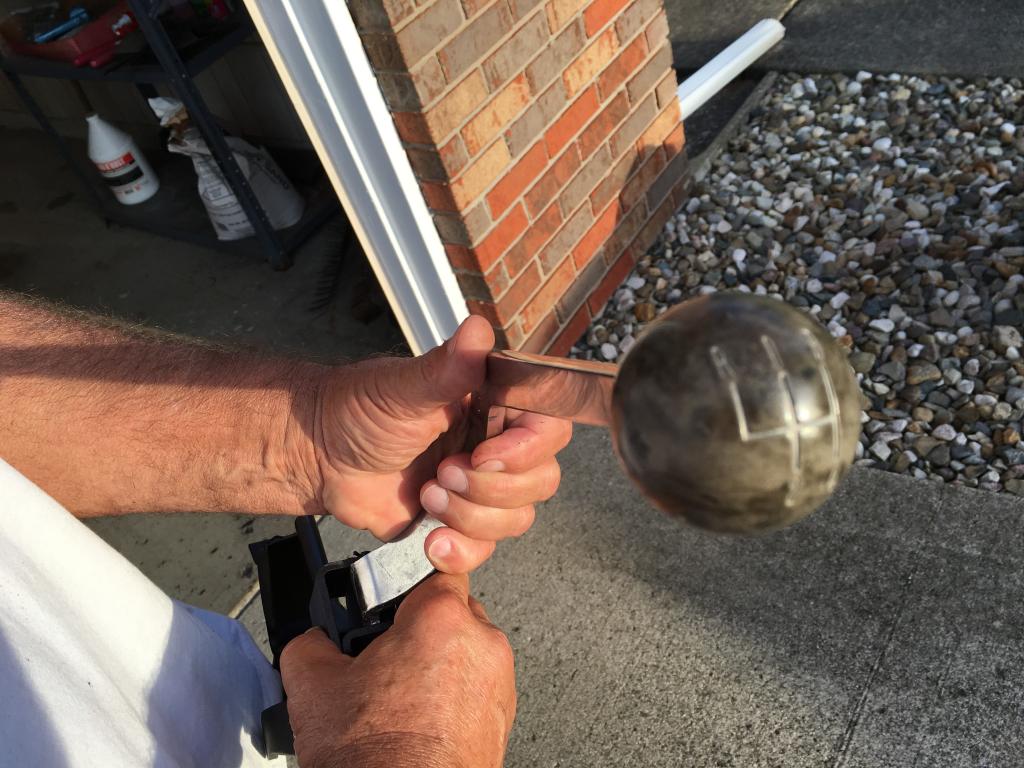

you ever see a shifter and ball like this?
no muncie on it just a T and the ball looks marbleized. ![]() ![]()
__________________
69 SS L78 Chevelle 70 SS 396 Chevelle |
#2
|
||||
|
||||
![]()
Maybe a Saginaw shifter. Never seen a ball like that....
|
#3
|
||||
|
||||
![]()
I have seen that 'T' marking before...Saginaw 4 spd. I think we have a console version with the same mark. Low horsepower V8 applications got the Saginaw wide ratio tranny. Limited audience for that item..
-wilma
__________________
02 Berger 380hp #95 Lots of L78 Novas Join National Nostalgic Nova! 70 Orange Cooler 69 Camaro |
#4
|
|||
|
|||
![]()
I had a 72 SS 350 El Camino with a Saginaw and that stick.Do not recall which ball it came with.
Swapped it out for a M-20 and a Hurst.
__________________
"Knowledge is good" Emil Fabor 67 L/78 Camaro SS/RS H-H,1W,2LGSR,3SL,4K,5BY. (Sold) 70 L/78 Nova M-21,Black Cherry,Sandalwood Int. 09 Pontiac G8 GT Premium,Sport,Roof. Liquid Red. |
#5
|
||||
|
||||
![]()
Tom, how do you tell the difference between a console shifter and a non console?
__________________
69 SS L78 Chevelle 70 SS 396 Chevelle |
#6
|
||||
|
||||
![]()
<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Donnie</div><div class="ubbcode-body">Tom, how do you tell the difference between a console shifter and a non console? </div></div>
The biggest difference is the physical size of the shift handle....the bench seat unit is longer and taller. Console shifter will have a more upright aspect to the handle to make it work with the console setup. I believe the spring attaches to a tab that is mounted on the driver's side exhaust head pipe to manifold connection...that's how it is on the BB cars.
__________________
02 Berger 380hp #95 Lots of L78 Novas Join National Nostalgic Nova! 70 Orange Cooler 69 Camaro |
#7
|
|||
|
|||
![]()
Donnie...The console shifter kicks the handle over to the right so it comes up thru the center of the console. The non-console shifter is more straight up and comes thru the floor closer to your leg.
|
#8
|
||||
|
||||
![]()
can anyone help with where the clutch return spring goes? a pic would be helpful
__________________
69 SS L78 Chevelle 70 SS 396 Chevelle |
#9
|
|||
|
|||
![]()

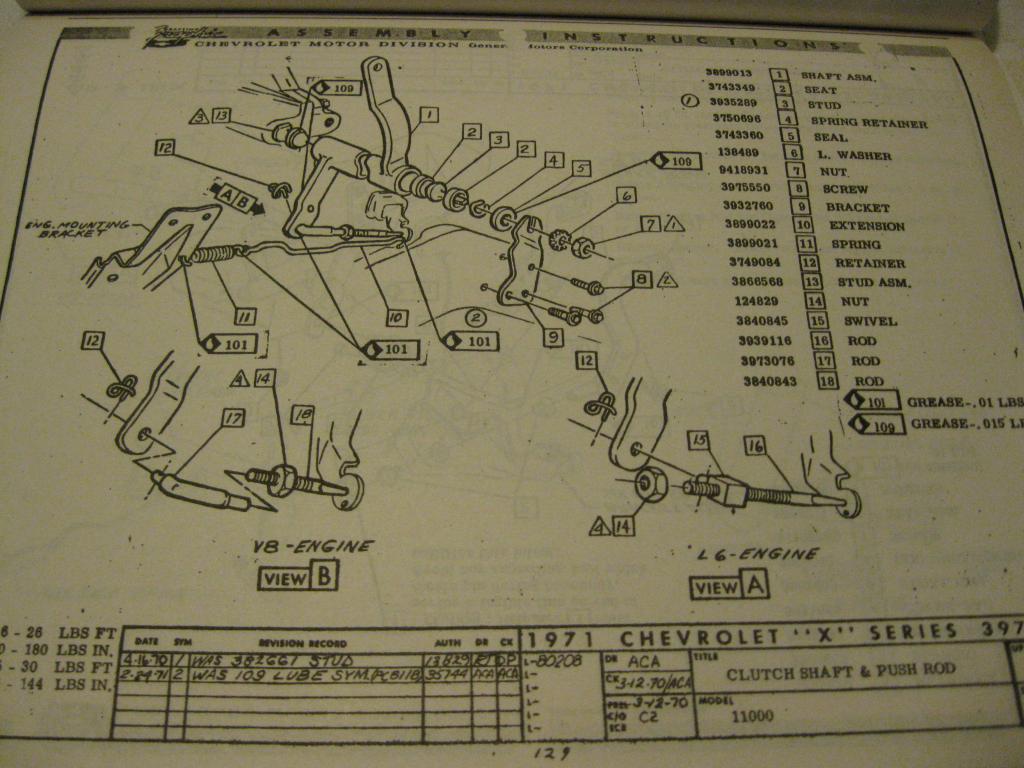

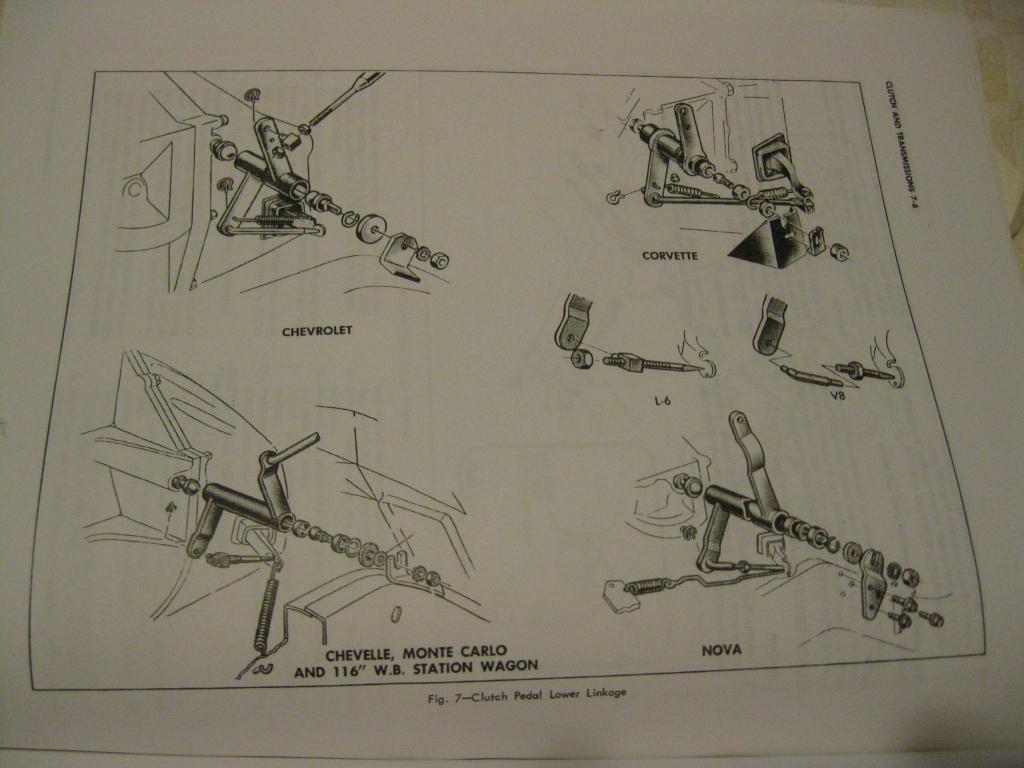

Donnie -- I've attached two pics from my 71 Nova Assembly Instruction and Chassis Service Manual's ... may be the same as yours. TAZ
![]() ![]()
__________________
You've never lived until you've almost died -- for those who fight for it, life has a flavor the protected will never know! |
#10
|
|||
|
|||
![]()

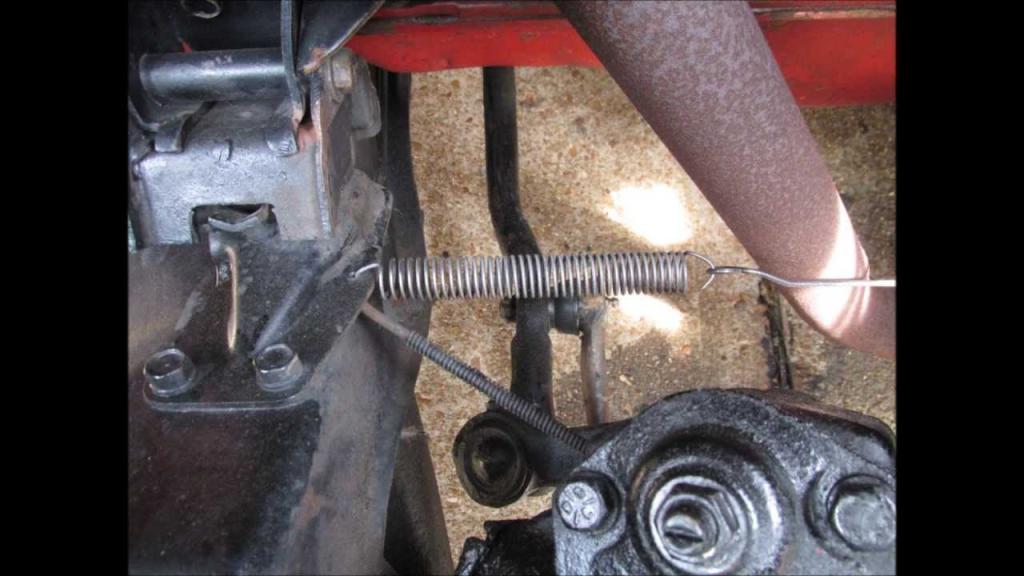

AND I found another picture on line ... TAX
![]()
