#1
03-17-2008, 04:48 AM
|
|||
|
|||
T-3 Headlights / High Beams
I have a few of these in my garage. What year and model did they originally come off of? Also is it true the high beams have 3 prongs and the regular headlights have 2?
Thanks in advance, -Dave
|
|
#2
03-17-2008, 04:58 AM
|
||||
|
||||
|
Re: T-3 Headlights / High Beams
__________________
~JAG~ NCRS#65120 68 GTO HO 4 spd Alpine Blue /Parchment 2 owner car #21783 71 Corvette LT1 45k miles Orig paint - Brandshatch Green - National Top Flight - last known 71 LT1 built. 71 Corvette LT1 42k miles Original paint - Black - black leather - only black LT1 known to exist. NUMEROUS Lemans blue Camaros, Monza Red and Daytona Yellow Corvettes & a Chevelle or two... Survivors, restored cars, & other photos https://picasaweb.google.com/lh/myphotos
|
|
#4
03-17-2008, 05:16 AM
|
||||
|
||||
|
Re: T-3 Headlights / High Beams
high beams two prong single filiment
outside bulbs are three prong as they have two filiments
|
|
#6
03-17-2008, 05:48 AM
|
|||
|
|||
|
Re: T-3 Headlights / High Beams
[ QUOTE ]
A multitude of vehicles used the #4001. Yours are showing assembled on February 10th,1972. [/ QUOTE ] Thanks very much. I could have sworn I took them off a 72 Corvette so I guess that is possible. Can I ask what book, web site, or data base you accessed to decode the T-3's? Thanks again, -Dave
|
|
#7
03-17-2008, 09:41 AM
|
|||
|
|||
|
Re: T-3 Headlights / High Beams

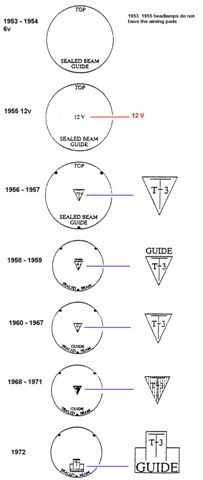

It is almost unreadable when downsized, but I could e-mail it to you.
__________________
Anders Stålklint. After selling my COPO 9561 I´m now a "postman" with the main project being a 1966 327 2 dr sedan Chevy II.
|
|
#9
03-18-2008, 01:10 AM
|
|||
|
|||
|
Re: T-3 Headlights / High Beams
[ QUOTE ]
It is almost unreadable when downsized, but I could e-mail it to you. [/ QUOTE ] When I downloaded it and enlarge it, it becomes blurry. If you could still e-mail me a copy I would greatly appreciate it. I PM'ed you earlier with my e-mail address. -Dave
|
|
#10
03-18-2008, 09:30 PM
|
|||
|
|||
|
Re: T-3 Headlights / High Beams
It´s on its way, Dave !
__________________
Anders Stålklint. After selling my COPO 9561 I´m now a "postman" with the main project being a 1966 327 2 dr sedan Chevy II.
|
|
|
|
