#1
|
||||
|
||||
![]()
I want to replace the coil springs in my orange/white stripe Z I recently picked up, because it sits too high. I installed Moog 6308 in my other orange Z and for me it sits perfect. The rub is they are discontinued. From my research D&R sells pn k00091-z which is designed for a 69 Z28 and looks to match the original specs. Also available from Classic Industries are Elgin pn CS6308 which also closely matches the Moog original specs. My question is has anyone installed either and do you like the height? also if you have pics that would be great. Any other spring suggestion would be appreciated!
Thanks...
__________________
Steve Shauger The Supercar Registry www.yenko.net Vintage Certification™ , Providing Recognition to Unrestored Muscle Cars. Website: www.vintagecertification.com |
The Following User Says Thank You to Steve Shauger For This Useful Post: | ||
69L78 (02-01-2024) |
#2
|
||||
|
||||
![]()
Steve, why don't you just trim the coils you have until you get the ride height you want?
|
#3
|
||||
|
||||
![]()

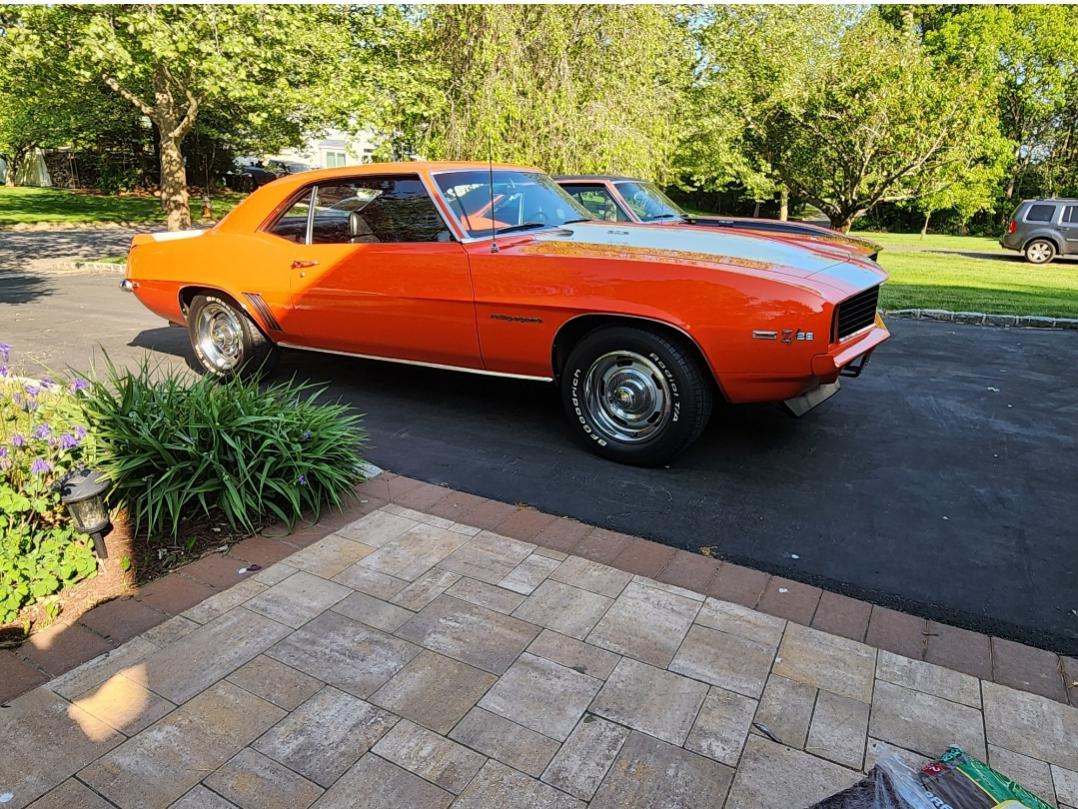

Steve, I worked with Kevin at Coil Spring Specialties last year on a custom set of front coil springs. I first ordered in the spec recommended by Wayne D Guinn which brought my front fenders down to about 25 3/8”, measured from the center of the fender trim. I wanted lower to sit level with the rears so I ordered a second adjusted set that got me to 24 3/8”. I bet you can ask Kevin for the spec that Matt from California ordered last year. Or if you want 25 3/8” I’ve still got those in a box. Here are a few photos of ride height on 215/65 BFGs. DM me if you need any more details.
Thank you to Motorhead848 for refinishing and installing them ![]()
__________________
~Matt '69 Z/28 RS '77 F100 '83 FJ60 '10 WC50 |
The Following 8 Users Say Thank You to cruiserofland For This Useful Post: | ||
enio45 (02-03-2024), Jonesy (02-02-2024), L72Chevelle (02-03-2024), napa68 (02-03-2024), olredalert (02-02-2024), rlw68 (02-02-2024), ruralrte66 (02-04-2024), Zman1969 (02-02-2024) |
#4
|
||||
|
||||
![]() Quote:
I was contacted from a member and just purchased a set of unused 6308.. BTW our cars are twins!! I have 215/65/15 front and 235/60/15 rear. They have almost identical diameters... Thanks for reaching out!
__________________
Steve Shauger The Supercar Registry www.yenko.net Vintage Certification™ , Providing Recognition to Unrestored Muscle Cars. Website: www.vintagecertification.com |
The Following 2 Users Say Thank You to Steve Shauger For This Useful Post: | ||
cruiserofland (02-02-2024), napa68 (02-03-2024) |
#5
|
||||
|
||||
![]()
Really good info here. Thanks
__________________
1969 Camaro RS/SS Azure Turquoise 1969 Camaro Z/28 Azure Turquoise 1984 Camaro z/28 L69 HO 5 speed 1984 Camaro z/28 zz4 conversion 1987 Monte Carlo SS original owner |
The Following User Says Thank You to Jonesy For This Useful Post: | ||
cruiserofland (02-02-2024) |
#6
|
|||
|
|||
![]()
matt,
has the car settled at all since we did the second set? -mark |
#7
|
|||
|
|||
![]()
what is the recommended ride height - using stock spring and stock bias tires?
__________________
Eddie M Camaro-less 87 El Camino SS Few Ferrari's |
#8
|
||||
|
||||
![]() Quote:

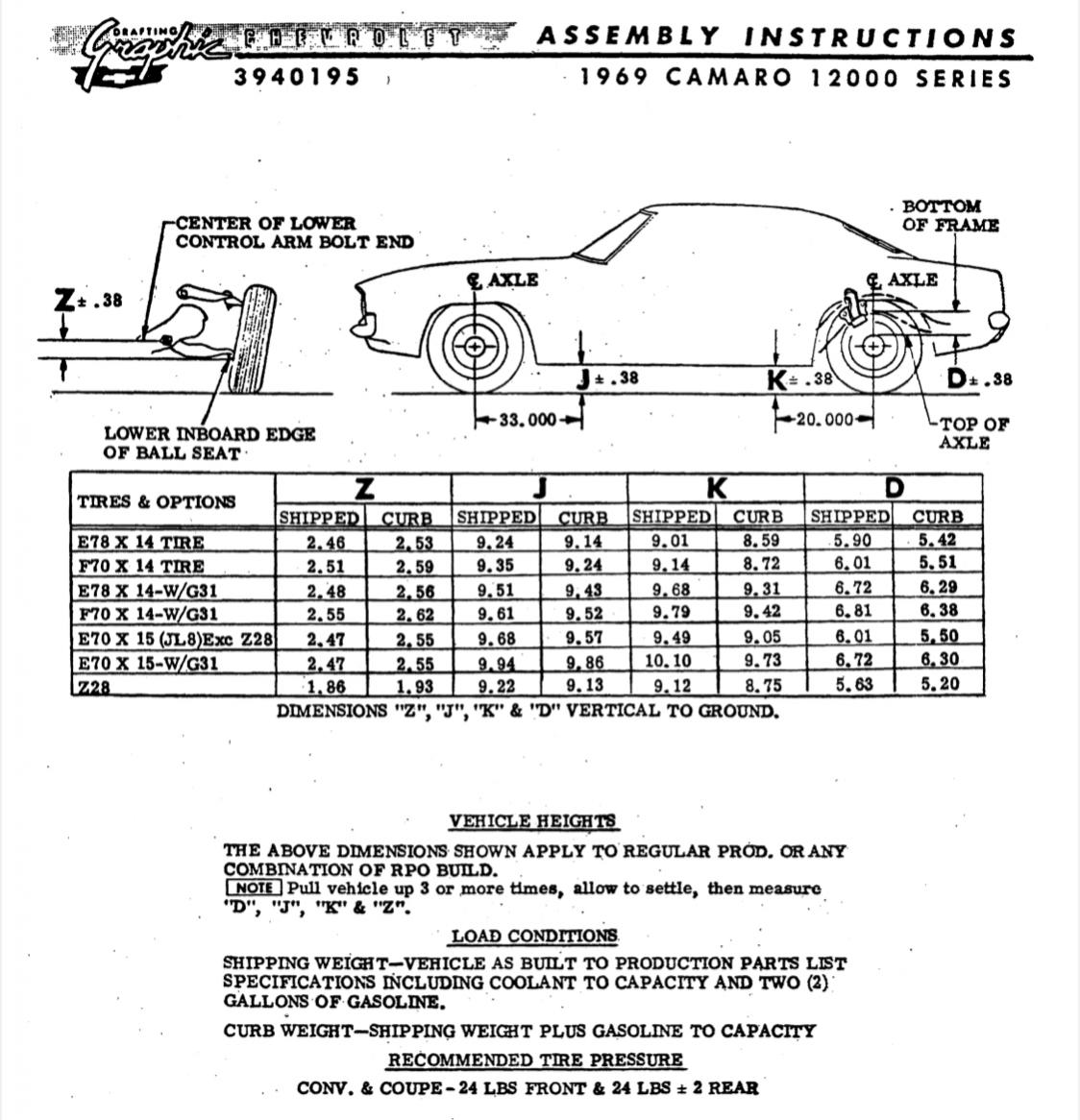

Eddie, here’s the page in the AIM about ride height. I’ll have to measure from those locations and compare, but certainly the look I prefer is level and with the tires slightly tucked into the fenders. I like to think GM Styling would agree ![]() I should also say that my springs from Coil Spring Specialties are 507 lbs/in, which is stiffer than stock. The front feels very planted in cornering without a compromise in ride quality ![]()
__________________
~Matt '69 Z/28 RS '77 F100 '83 FJ60 '10 WC50 |
The Following 3 Users Say Thank You to cruiserofland For This Useful Post: | ||
![]() |
|
|
