#1
12-06-2023, 07:53 PM
|
|||
|
|||
Parts IDing
While looking for a battery hold down bracket, I found a box of items. Hoping to get some help in identifying them. What they are and year of usage. The black nylon strap has 2.75 and Patent 2,937,834 Thanx... Danny
|
|
#2
12-06-2023, 07:55 PM
|
|||
|
|||
|
more

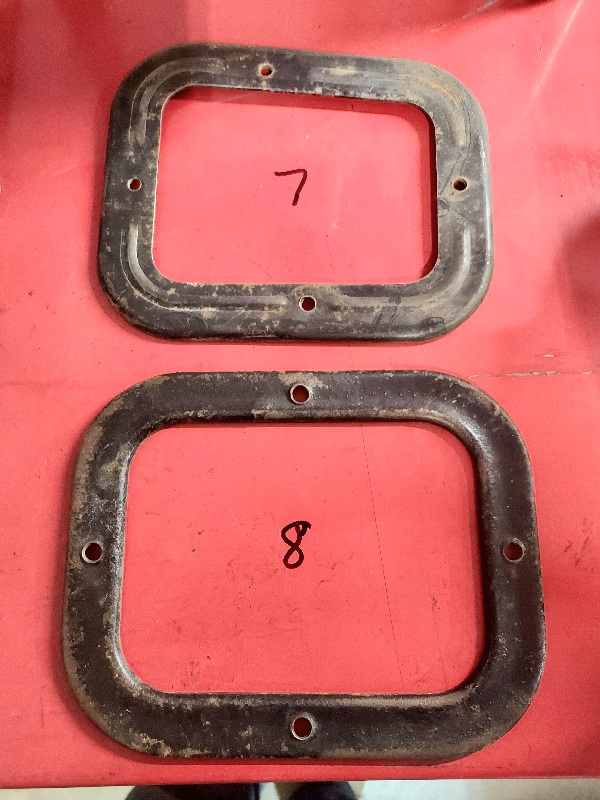

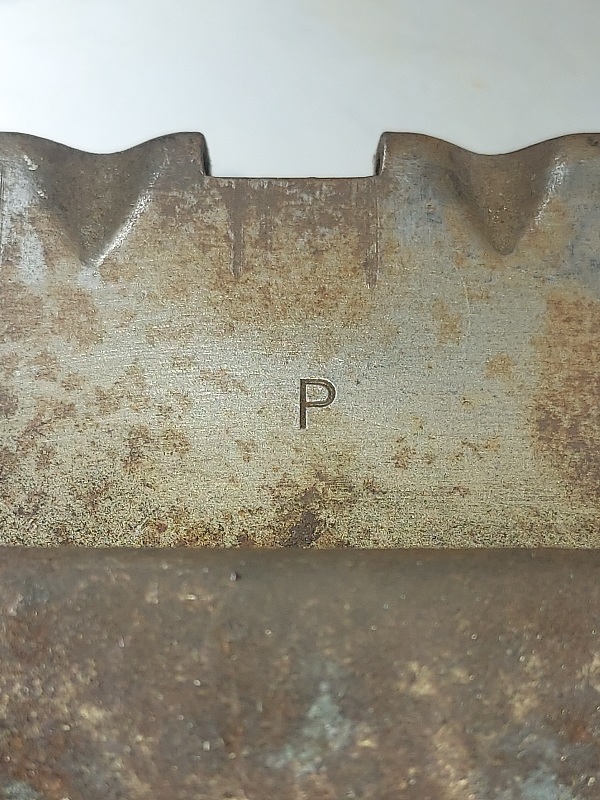

Looks like a console bracket, but don't know the year. Has a "P" stamp. Last 2 Shift boot brackets. But don't know the difference between the square and the offset one. Thanx... D
Last edited by dannystarr; 12-06-2023 at 07:57 PM.
|
|
#3
12-06-2023, 07:56 PM
|
||||
|
||||
|
(no number on it) pic looks like the front bracket used to mount a floor console to the floor
__________________
1969 Camaro RS/SS Azure Turquoise 1969 Camaro Z/28 Azure Turquoise 1984 Camaro z/28 L69 HO 5 speed 1984 Camaro z/28 zz4 conversion 1987 Monte Carlo SS original owner Last edited by Jonesy; 12-06-2023 at 09:38 PM. Reason: I had #6 on it
|
|
#4
12-06-2023, 08:34 PM
|
|||
|
|||
|
#6
# 6 is the metal tube with brackets at each end.
Console bracket has no number in post. I have a couple console brackets but they don't have the upper center piece. I could be wrong, as they are not handy. So I was wondering the year.
|
|
#6
12-06-2023, 09:36 PM
|
|||
|
|||
|
Parts ID
#1 goes to the ebrake petal
Is that on first gen Camaro pedals? D
|
|
#7
12-06-2023, 09:40 PM
|
||||
|
||||
|
Been thinking for a long time that there should be a special "Thread" or "Gallery" where members could place photos of items they have no idea what they are. Lots of knowledge on this site....probably an equal amount of "mystery" parts on our shelves out there..
How great would that be...
|
|
#8
12-06-2023, 09:55 PM
|
||||
|
||||
|
I believe the tube #6 is for starter wires. One end bolt to the starter and the other end uses a transmission bolt to hold it on place. #3 bolts to the bottom of the block and holds automatic transmission cooler lines.
__________________
Freddie 1969 Camaro RS/SS396 (427) 4 speed
|
|
#9
12-06-2023, 10:12 PM
|
|||
|
|||
|
#3 is transmission line bracket, bolted to engine via the oil pan bolts. Looks like Chevrolet, but may have been used across multiple GM lines. #2 used to hold wire bundles to inner fenders and core support, again Chevrolet. #5 is wrapped in wire bundles and align with pre-punched holes around the car usually in the engine compartment and taillight wiring harnesses. #6 I got one of those in a box of parts with my Camaro. I thought it was for my BB starter wires, but was told not on a Chevrolet possible Pontiac.
Last edited by wvhylander; 12-06-2023 at 10:18 PM.
|
|
#10
12-06-2023, 10:49 PM
|
|||
|
|||
|

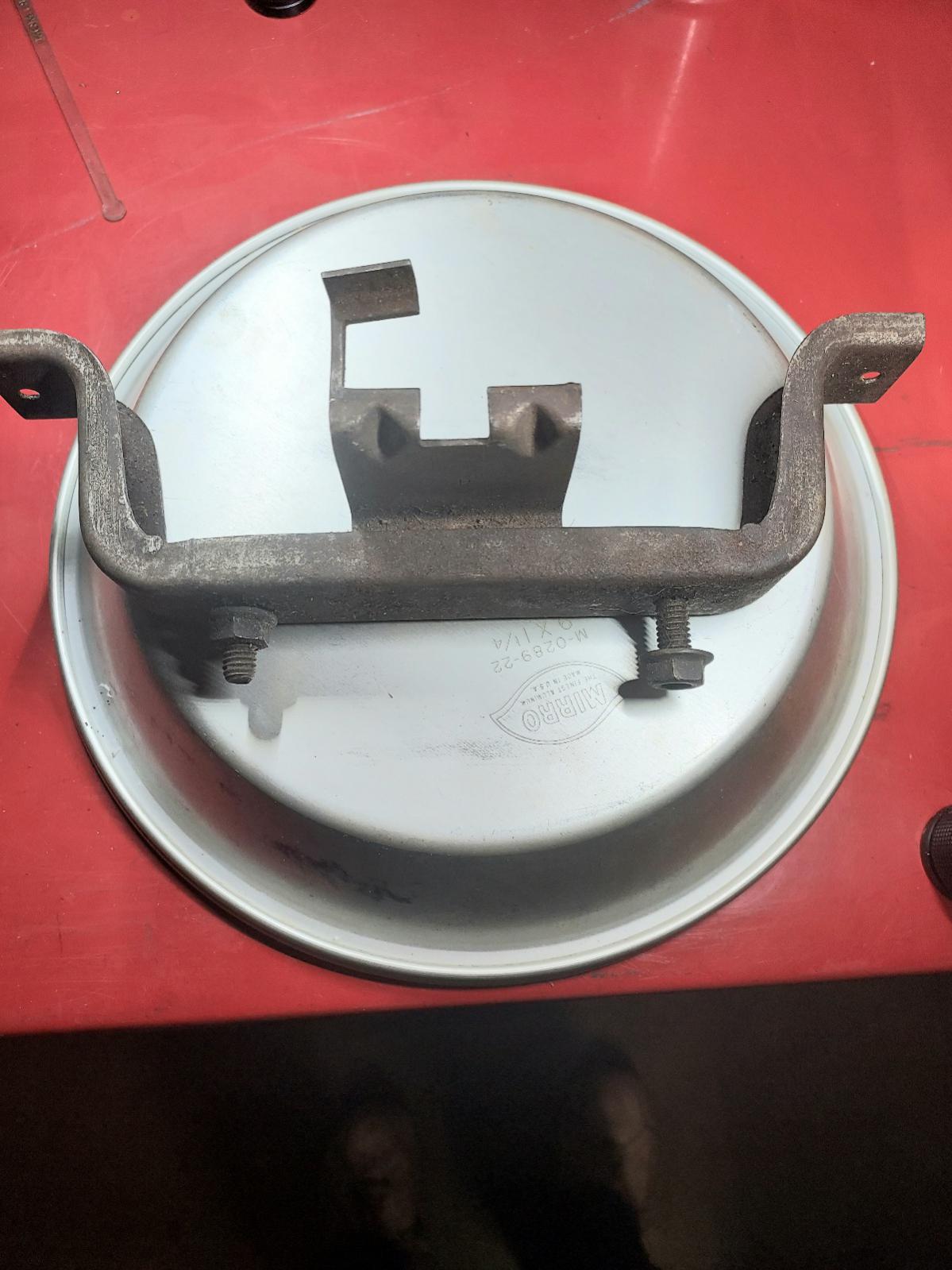

#4 is a specific 68/69 Camaro front console bracket used only on cars with gauges.
The small upper section (on the top of the bracket base) is designed so the gauge package wiring harness has a place to be routed through. The only problem with yours is that somebody cut off one side of the top bracket. Paul
|
 |
|
|
