Reverse lockout rod for 69 Chevelle

[bkhpah]

I need the rod that goes from the column to the bell crank assembly for the reverse lockout on a 69 Chevelle big block. Thanks for any help..BKH

[enio45]

brian - do you know the stamp number on it....i have several but need the number, maybe dimensions would help as well

[Postsedan]

Ed,

The Stamp Number is #5497

Dan

[bkhpah]

Like he said!..BKH

[Rixls6]

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: Postsedan</div><div class="ubbcode-body">Ed,

The Stamp Number is #5497

Dan </div></div>

Wouldn't that one be between the bellcrank and the trans?
I think it might be a 2889 or 2890 that goes between the column and bellcrank.

[Ls6 Ragtop]

Rick's correct, upper 4-speed muncie steering column to swivel rod part # is 2889. The lower rod from the swivel to the reverse lever is 5497. These rods are the same from 69-72 on all muncie 4- speed chevelles, regardless of engine option. Small block and big block doesn't matter just has to be a muncie trans not a saginaw.
Chris

[Postsedan]

Correct, I sent Brian the picture of the 5497....that is what he needs.

Dan

[Ls6 Ragtop]

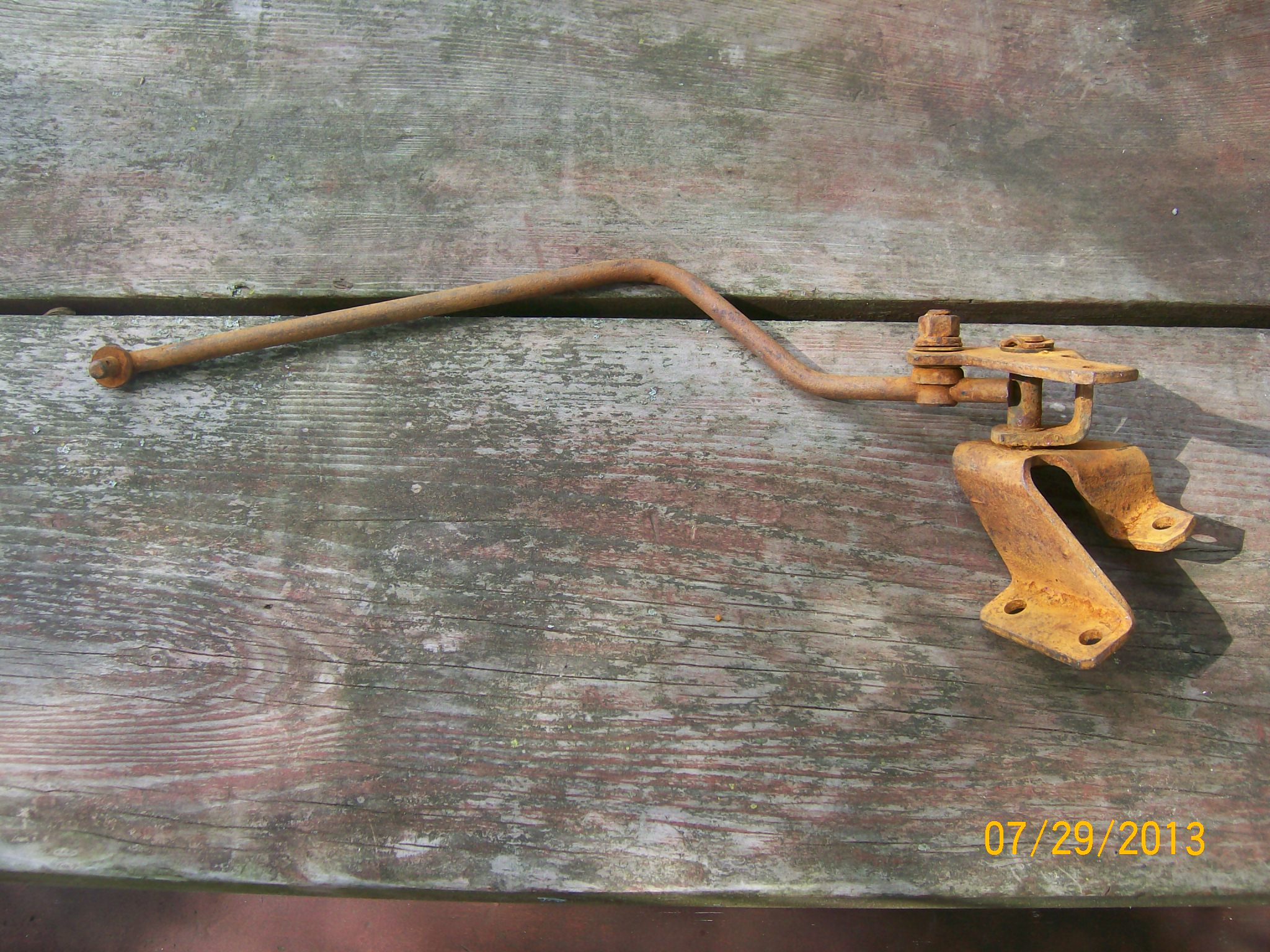

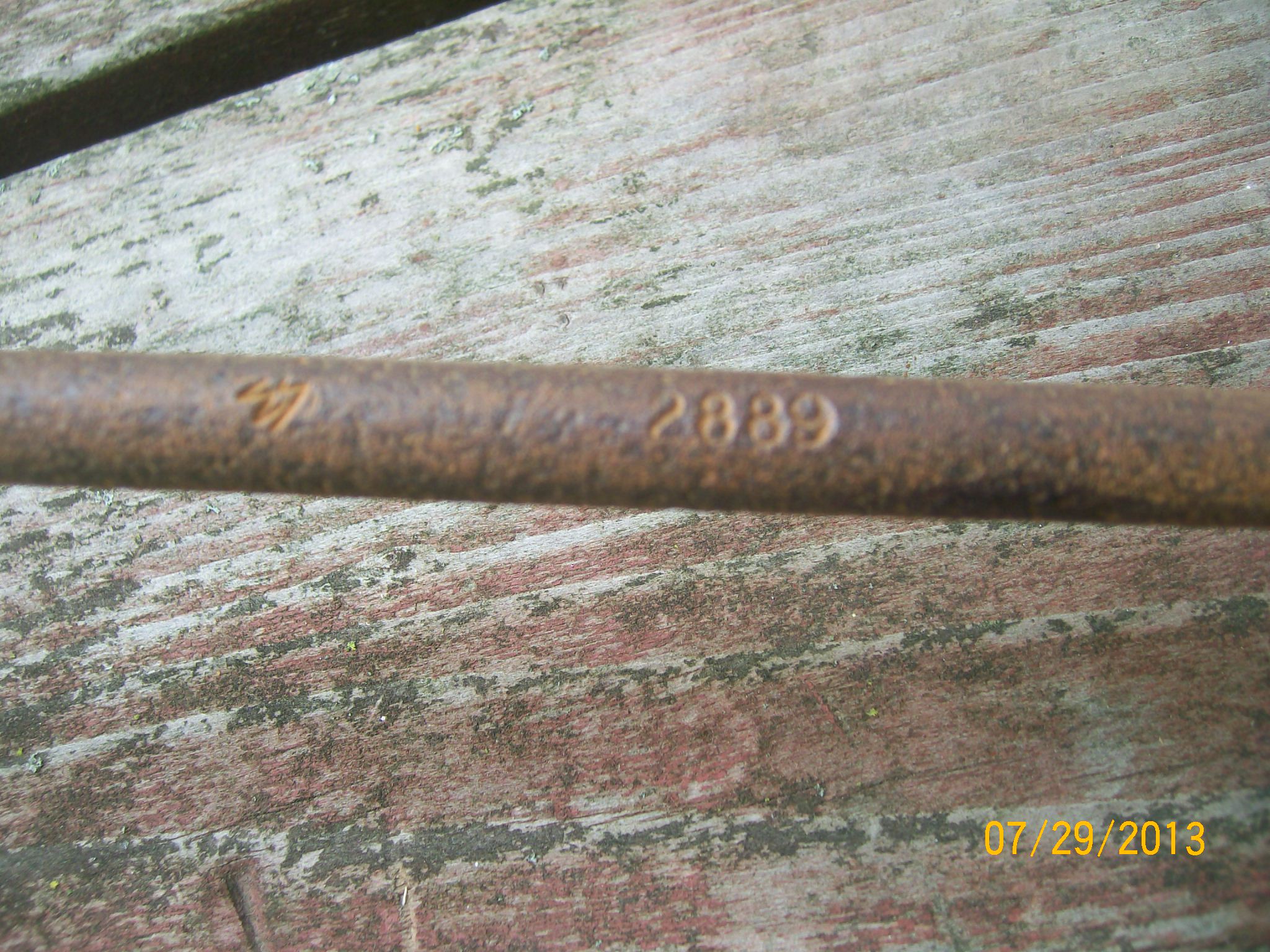

If the rod Brian is looking for is indeed the lower lockout rod # 5497 I can help if needed. I understood his posting to be for the upper rod to the column # 2889. I currently don't have any spare uppers so hopefully it's the lower that's needed. I have a supply of reproduction lower rods with the correct forged ends and part # and MW manufacturer stamp as seen at the bottom of the last photo or a limited supply of used originals.(the one on the top in the bottom photo)
Chris

[bkhpah]

I need the one from bellcrank to the column. So #2889 is the one..

[enio45]

sorry - no go on my end
