CY & CX 400THM: differences & similarities
Using a 1969 "Hydra-matic Production Parts" list, I charted the differences and similarities between the "CY" & "CX" automatic transmissions, as well the difference between the "CY" & "CX" and the standard 400 automatic transmission.
https://www.yenko.net/attachments/400THM.jpg |
Re: CY & CX 400THM: differences & similarities
That's Real Nice work Rob. https://www.yenko.net/ubbthreads/imag...iggthumpup.gif
|
Re: CY & CX 400THM: differences & similarities
Very nice Rob and very helpful!
|
Re: CY & CX 400THM: differences & similarities
Rob, To help the inept, like myself which vechicles used a CY or CW and what is diff between them (CW/CY). My ORIGINAL 70 Z-28 (bought NEW) with column shifted T-400......may I assume this had either of the two???
Thanks, Chuck |
Re: CY & CX 400THM: differences & similarities
For the year 1970:
*TH400 CY Trans. was coded for the LS6 Chevelle,& Corvette LS5. Higher-shift point and stronger bands & springs.I believe a thicker shaft as well? *TH400 CW Trans. was coded for the L78 Chevelle-Nova-Camaro,& LT-1 Camaro-Nova. *TH400 CR & CS Trans. was coded for the LS5 Chevelle-Monte Carlo,& Corvette w/Transitorizied Ignition. *TH400 CF Trans. was coded for the L34 Chevelle-Camaro-Nova. *TH400 CK Trans. was coded for the 300HP 350cid Corvette. |
Re: CY & CX 400THM: differences & similarities
Chuck, the comparison is between the CX vs. the CY, not the CW version. The CW was used in the L78's, LT1's etc...
|
Re: CY & CX 400THM: differences & similarities
1 Attachment(s)

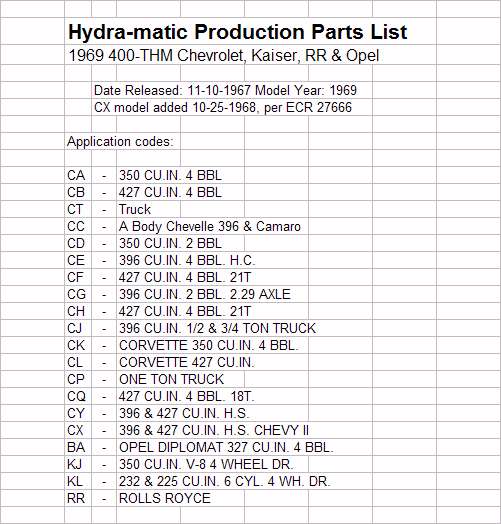

Ray Morrison sent me some more 400-THM info. It was an application chart for 1969, so I went ahead and ran it through Excel so it's easier to digest...
https://www.yenko.net/attachments/118862-400RAY1.jpg |
1968 CY Trans details
1 Attachment(s)

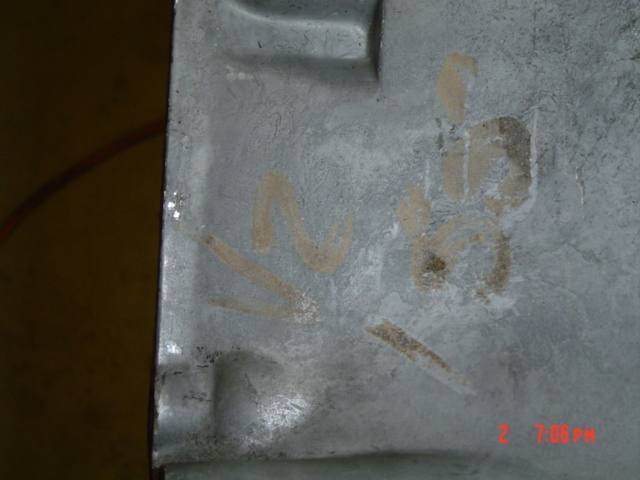

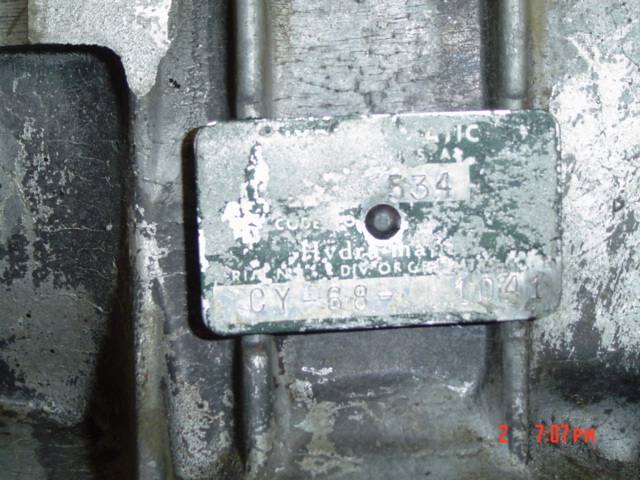

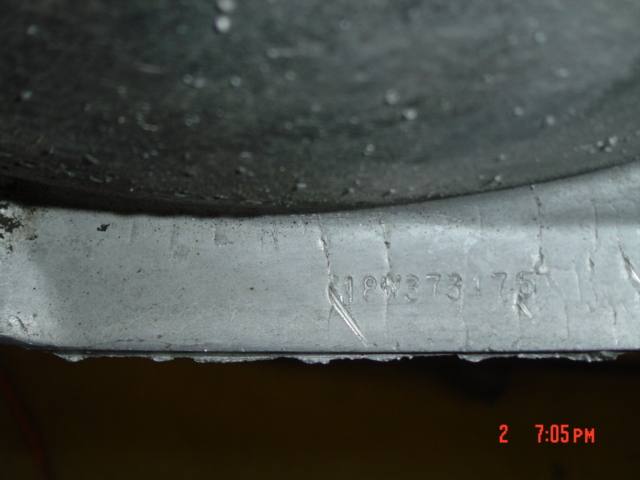

Here are some detailed pictures from a 1968 CY THM400 trans, courtesy of Tommy K and the Super Car Workshop...
https://www.yenko.net/attachments/132661-12.jpg |
Re: 1968 CY Trans details
1 Attachment(s)
|
Re: 1968 CY Trans details
1 Attachment(s)
|
