1968 Camaro BW rear end


Hi gang,

What is an original stamp "BW" 4.56 posi rear end housing worth? This is an unrestored unit.

Original application I assume is for a Z or L78? Can you guys confirm? Is it rare or desirable? Photos to follow...

Thanks,
Dan

Re: 1968 Camaro BW rear end


Dan I have a bare housing as well and mine is coded BW 0614G1. What is yours?

Re: 1968 Camaro BW rear end


0425G1

What does mine decode as?

Re: 1968 Camaro BW rear end


I think it codes out as April 25 Gear Plant 1st shift. I have always wondered what car mine came out of as well.

Re: 1968 Camaro BW rear end


Thanks Mark!

What else besides an L78 or Z28 would have been optioned with a 4.56 diff in 1968?

Re: 1968 Camaro BW rear end


Technically couldn't you have ordered the 4.56 rear gear with anything that would have received a 12 bolt rear end? It was a regular RPO. I think there are a few documented COPO cars with the 4.56 rear end.

Re: 1968 Camaro BW rear end


I'll bet the Chevy books shown in this thread could answer that question...perhaps the seller or buyer could scan/copy all of the pages as a reference tool for all of us???

**note the 68 book regarding the M22 tranny...only with L78...note the reference in the Corvette section about certain gears only being available with high lift camshaft motors...

https://www.yenko.net/ubbthreads/ubbthrea...uide#Post515962

wilma

Re: 1968 Camaro BW rear end

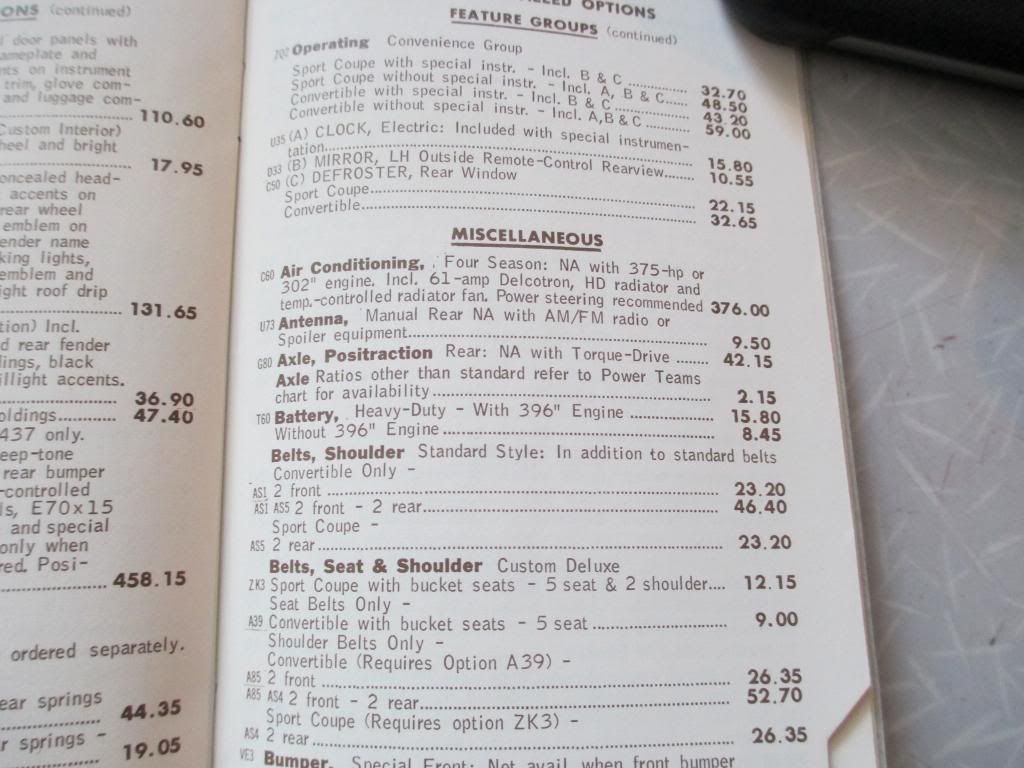

The book says to see "Power Team Chart" for axle ratios options. I'm not finding that in the books. It does have some for the 69 Corvette listed.

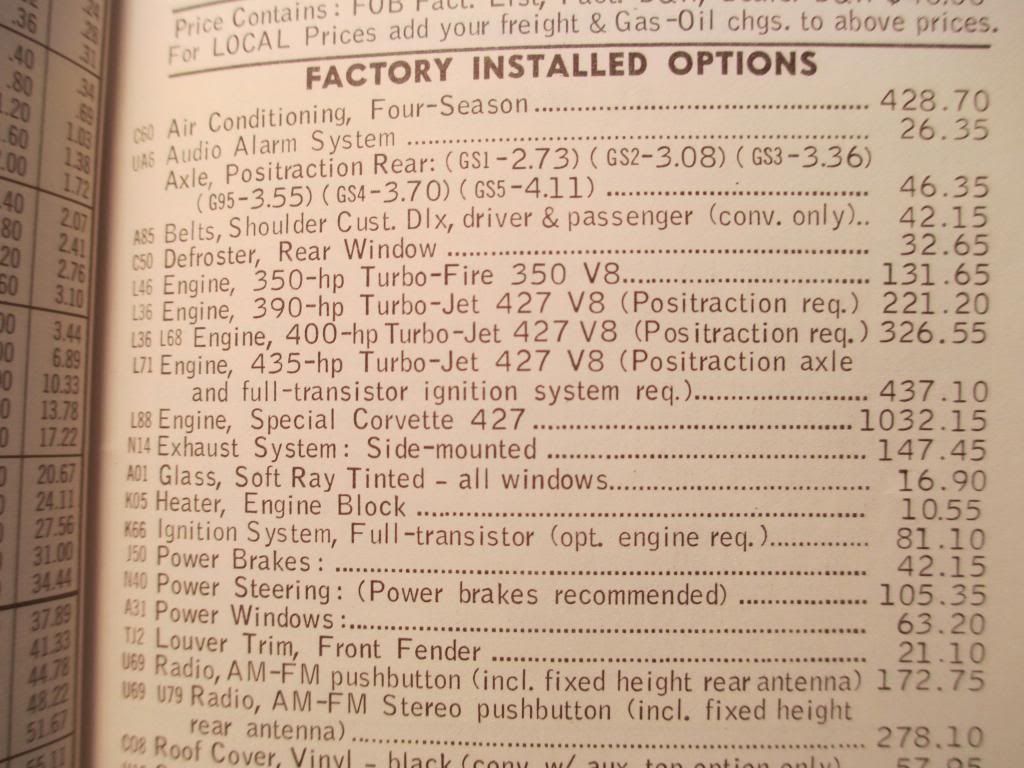

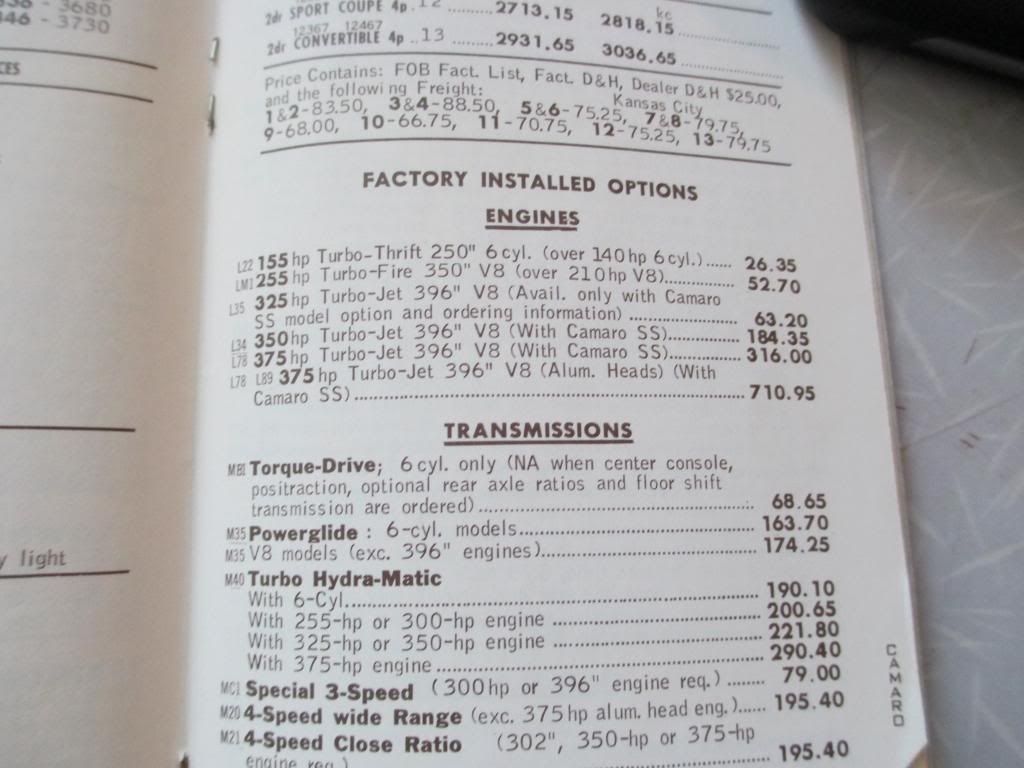

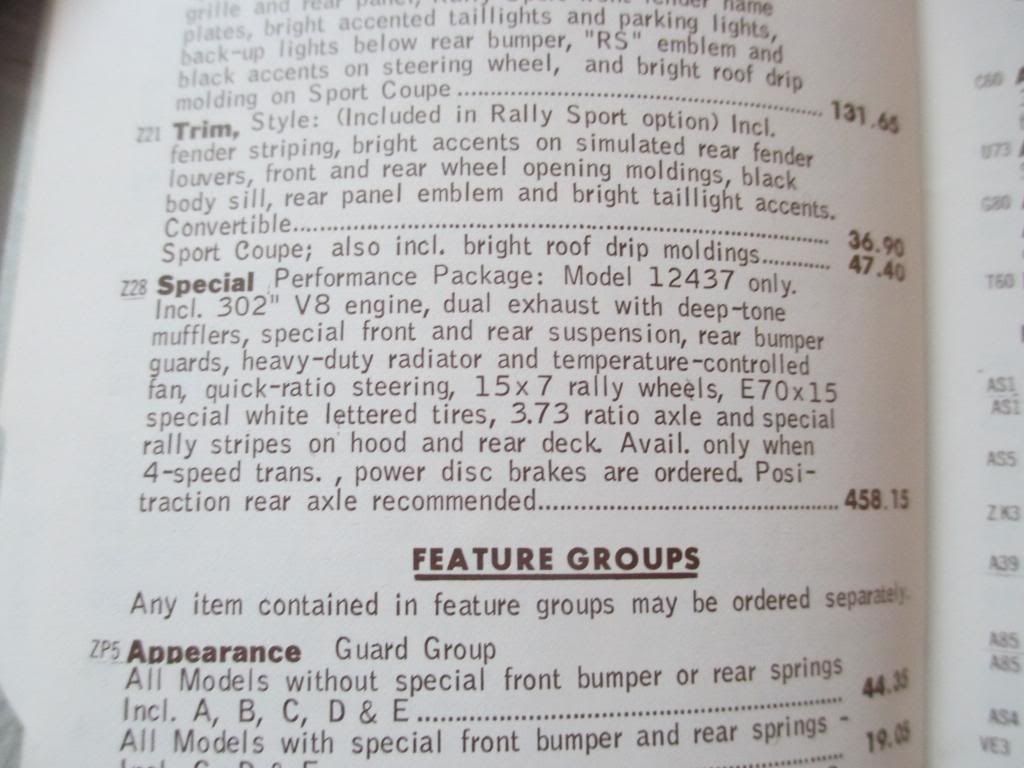

These are from the 69 model year of Camaro and the last picture of the Corvette with Axle ratios.
Look at the L-88 option for Corvette! Nice option but allot of $$ back then.
Dave
67 Nova Boy

http://i172.photobucket.com/albums/w...ps4fcd8721.jpg

http://i172.photobucket.com/albums/w...ps85a23fa8.jpg

http://i172.photobucket.com/albums/w...psabb3dd2c.jpg

http://i172.photobucket.com/albums/w...ps58b92aba.jpg

Re: 1968 Camaro BW rear end


Dave, thanks for posting those pages. Excellent information.

Re: 1968 Camaro BW rear end


Any other before wraping up to ship to the new owner?

Dave
67 Nova Boy
