sixtiesmuscle 12-08-2011 03:47 AM

Chevelle SS center cap

I need one "snap on" center cap in good used condition.

XXXGoldL34M20 12-08-2011 03:59 AM

Re: Chevelle SS center cap

What year?

sixtiesmuscle 12-08-2011 03:21 PM

Re: Chevelle SS center cap

With shallow cup. 1/8th I'm told. I thought the spring clip style was that way only.

ORIGLS6 12-08-2011 03:29 PM

Re: Chevelle SS center cap

Lemme look tonite Mike. I probably have some.

SS427 12-08-2011 04:17 PM

Re: Chevelle SS center cap

As far as I know the only way the snap cap was available was in the deep 1/4" recess.

I have three, one of which is in very good shape but would still need to be rechromed. It has one pit on the outer surface, four pits on the inner lip and one blemmish on the face of the lip. It uses the peened over backing plate versus the screw on.

Mr70 12-08-2011 04:28 PM

Re: Chevelle SS center cap

1969 Super Sport rims used the bolt on center cap,with 1/4" depth on top,on the assembly line.
Early assembled 1970 Super Sport rims used the same bolt on cap,while later cars got the newly designed clip on cap.
Both still had 1/4" depth on top.

If from Leeds & box #91 of your buildsheet says #775,that would mean your car received the bolt on cap originally.

Later on into the 1970's,GM still produced the clip on cap,but now with 1/8" depth,that was available over the counter.


1/8th #323 cap.

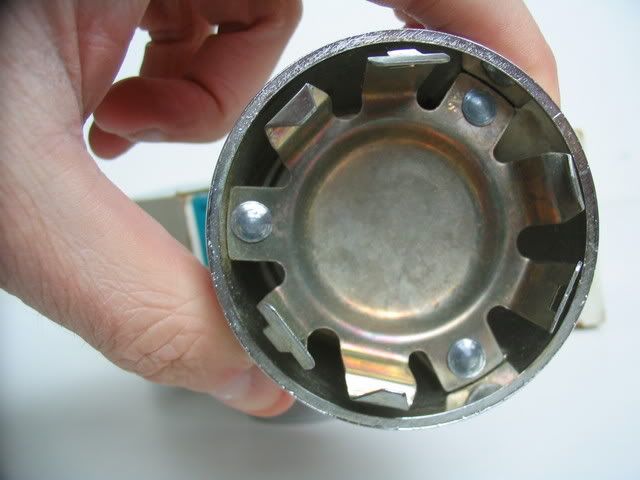

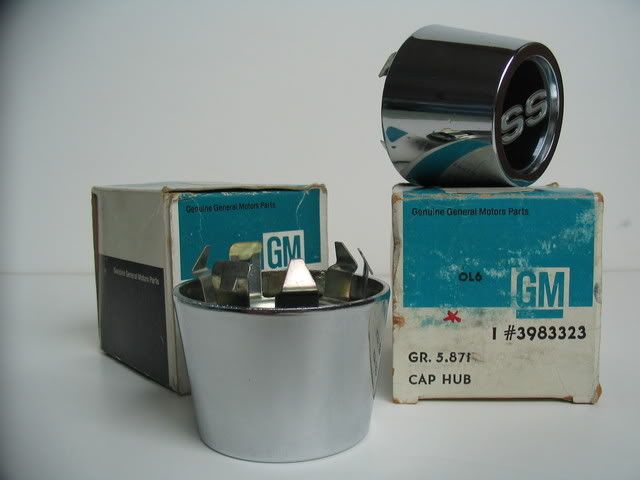

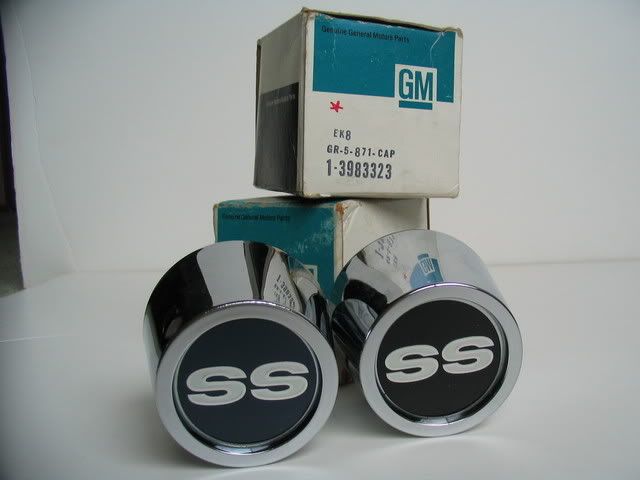

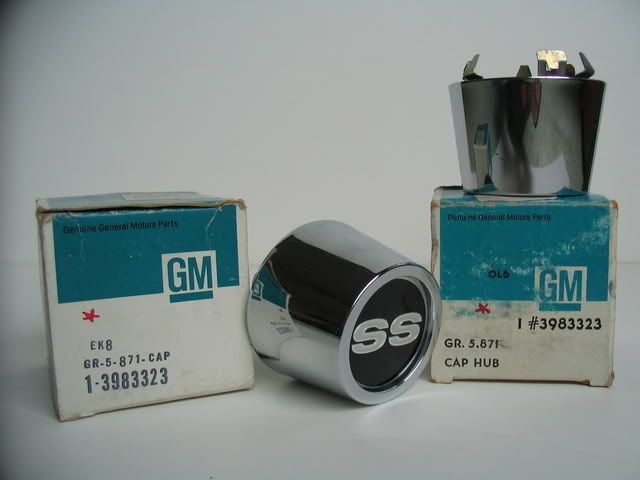

http://i159.photobucket.com/albums/t...tsXmas0020.jpg

http://i159.photobucket.com/albums/t...tsXmas0018.jpg

http://i159.photobucket.com/albums/t...tsXmas0019.jpg

http://i159.photobucket.com/albums/t...tsXmas0017.jpg


SS427 12-08-2011 05:22 PM

Re: Chevelle SS center cap

I stand corrected....

sixtiesmuscle 12-08-2011 08:27 PM

Re: Chevelle SS center cap

Thanks for the great info Rick P., and, thanks for the cap Rick N.

mockingbird812 12-08-2011 08:42 PM

Re: Chevelle SS center cap

Man Rick, great info and with pictures. I still like picture books best!

Mr. Chevy 12-09-2011 03:39 AM

Re: Chevelle SS center cap

Picture difference of the 1/8 depth cap vs. the 1/4 depth cap..

Rich

http://i268.photobucket.com/albums/j...icture5428.jpg
