ZL1/L88 198 intake, NOS 074 heads


Thinning out the parts for a good cause, so before I eBay them I wanted to offer them to members first:

1. 198 aluminum intake, 10/29/69 date, this is a REAL DEAL factory 198 intake...NOT a ground-off restamp of a 163 intake nor one of those fakes that are being produced right now. I bought this intake a while back from Crane Corvette and never used it...$650

2. NOS pair of 074 cylinder heads. Service date heads. These still have the pink dye mark on them...$3500

Pics will be posted as soon as I find a camera that works.
Prices do not include shipping.

All proceeds go to..."Fred's Supercar Fund"... https://www.yenko.net/ubbthreads/imag...mlins/grin.gif

Re: ZL1/L88 198 intake, NOS 074 heads


Could you tell me the casting dates on your heads, please.

Re: ZL1/L88 198 intake, NOS 074 heads


[ QUOTE ]

Could you tell me the casting dates on your heads, please.

[/ QUOTE ]

One head is 9/5/72 and the other has a 07118 in that same spot...not sure if that's a date or how to read that?

Re: ZL1/L88 198 intake, NOS 074 heads


Thanks. The 07118 is not a casting date. Is the other head also a '72 date?

Re: ZL1/L88 198 intake, NOS 074 heads


[ QUOTE ]
Thanks. The 07118 is not a casting date. Is the other head also a '72 date?

[/ QUOTE ]

Warren, 07118 actually is a date. This is being discussed over on Team Chevelle. I have been trying to figure out if it is July 11th of 1978 or 1988 but it IS definitely a casting date.

Maybe someone on this site can answer that question.

Here are a couple of pictures with similar dates.

Kurt

http://www.chevelles.com/forums/show...729&page=2

http://i300.photobucket.com/albums/n...LIBLW1pVPi.jpg

http://i300.photobucket.com/albums/n...JtBLW1pOh6.jpg

Re: ZL1/L88 198 intake, NOS 074 heads


Kurt,

The last year these heads were cast was 1976. I've had several sets and have done quite a bit of research on the 3946074 heads, especially since I own the cars these came on from the factory. There are also particular stampings that separate the assembly production heads from the over the counter heads. I was hoping your dates were for late 1970. Thanks, Warren

Re: ZL1/L88 198 intake, NOS 074 heads


So Warren, are you saying that both of these heads were cast in 1968???

http://i300.photobucket.com/albums/n...LIBLW1pVPi.jpg

http://i300.photobucket.com/albums/n...tingDate-1.jpg

And that these are cast in 1969???

http://i300.photobucket.com/albums/n...G0HyBLR682.jpg

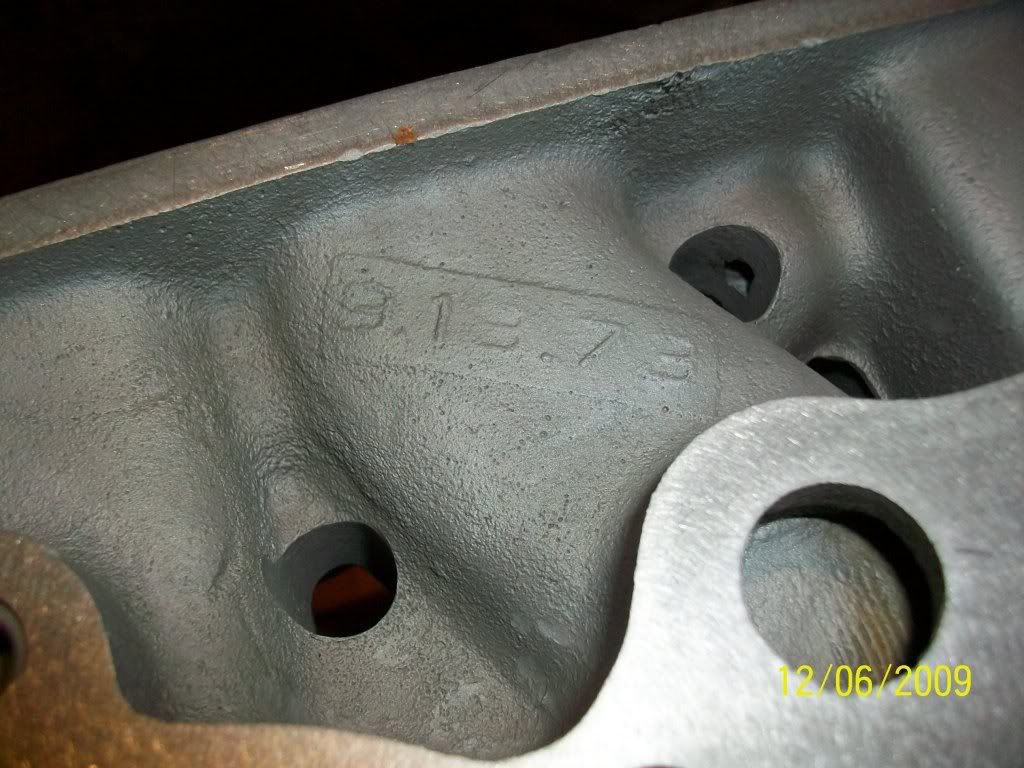

These are a given...they're 1973

http://i300.photobucket.com/albums/n...e/100_2378.jpg

IMO, the first head was not in 1968. The numbers are cast just like the '73 head. Which to me says it was cast at least sometime in the '70s.

The second is 1968.

The third...I have no clue. Although I have seen cast iron 291's with similar castings for dates that were over the counter heads.

Re: ZL1/L88 198 intake, NOS 074 heads


Just to add to the date pictures, here are some 1970 dated 074's.

6-17-70
http://i36.photobucket.com/albums/e43/Rixls6/032.jpg
6-11-70
http://i36.photobucket.com/albums/e43/Rixls6/030.jpg

Re: ZL1/L88 198 intake, NOS 074 heads


Just saw your post up here on the 07118 head. I also have a set that are both cast with 07118. They are cast where the date is so it has to have something to do with date coding. Was wondering if you had found out any more information?? Not sure how to post pictures on here or I would share the pictures of these heads.

Re: ZL1/L88 198 intake, NOS 074 heads


Is it possible when they were cast the date was installed backwards? 81170? Are there other examples or are they all the same code. This could indicate that a particular casting run the date was mistakenly setup wrong, just a thought.
