Re: 72 T/A progess

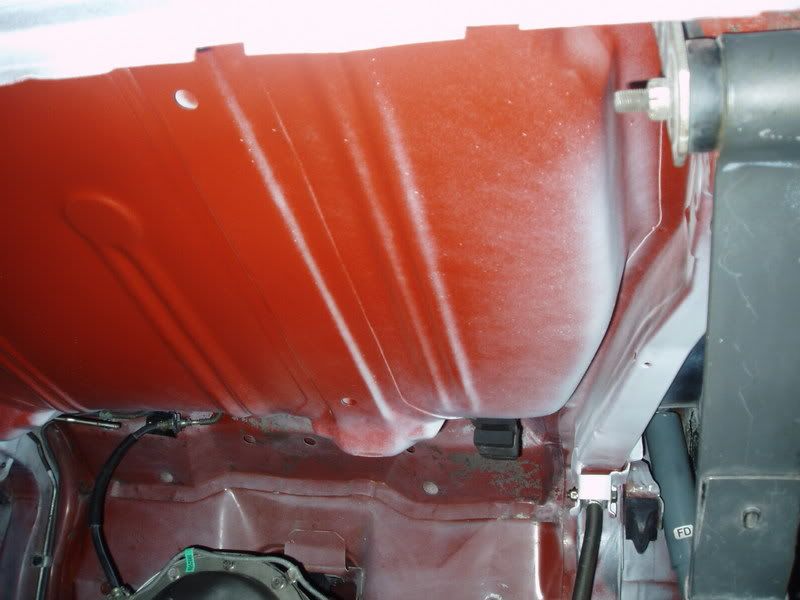

I have been getting the underside ready for the fuel tank and the rest of the emission lines. The new center trunk floor was primed with the matching red oxide primer by the bodyshop. I had a spray can made up with the correct paint code Cameo White and fogged in the overspray to match the original overspray on the trunk floor edges.

http://i20.photobucket.com/albums/b2...8/P5020005.jpg

Re: 72 T/A progess


Here is the driver's side area before the trunk floor replacement:

http://i20.photobucket.com/albums/b2.../P1140021a.jpg

And after I did the matching overspray on the new trunk floor:

http://i20.photobucket.com/albums/b2...8/P5020002.jpg

Re: 72 T/A progess


Here's the passenger side. This was a little more tricky since the body shop had to fix the crappy weld repair on the original broken sway bar mount. They did a great job repairing the original repair. I had to mask around and fog in the overpray without altering the original finish around the mount. Luckily the paint color matched the original overspray color perfectly.

The before shot:

http://i20.photobucket.com/albums/b2...8/P1150004.jpg

And after my patented, supersecret overspray replication process:

http://i20.photobucket.com/albums/b2...8/P5020008.jpg

Re: 72 T/A progess


Good "before" pictures are the key to an accurate restoration, and I know you have plenty!! Keep up the good work! https://www.yenko.net/ubbthreads/imag...lins/smile.gif
Verne https://www.yenko.net/ubbthreads/imag...iggthumpup.gif

Re: 72 T/A progess

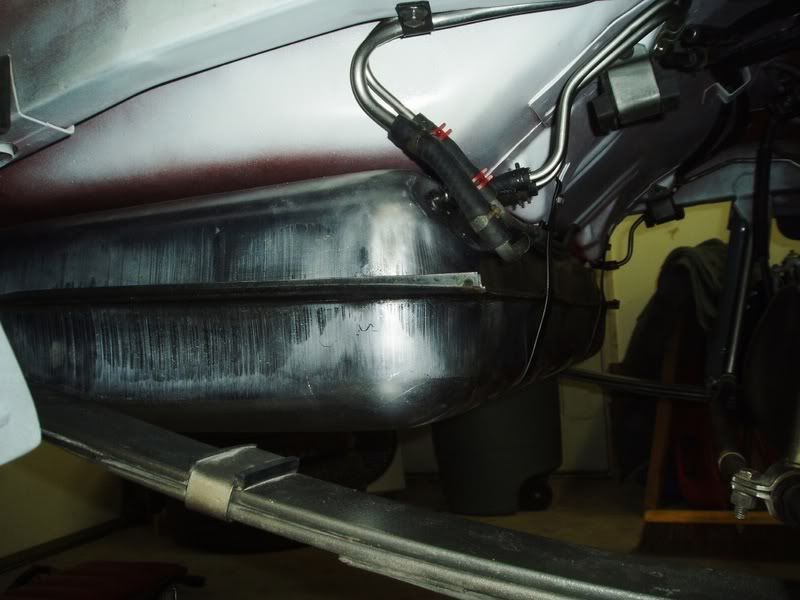

Today's job was installing the fuel tank, rear fuel lines and all of the emission lines that went from the tank to the evaporative canister in the rear trunk bulkhead. I also reinstalled the four original exhaust system mounts.

The tank was one of those Canadian reproductions. I bought it at Carlisle last year and saved the crazy shipping costs. It was about 98% accurate and only needed a little persuasion to get the filler neck adjusted to the correct angle. It was off by a couple of degrees and was 1/8" longer than the original filler neck.

I replaced the original tank because it had several screw holes in the top where someone must have tried to mount something in the trunk and punched the screws right through the trunk floor and into the tank.

As for the seven emission lines' routing, luckily I took some good photos of the layout before. I ended up taping the photos together like a jigsaw puzzle and then taped the whole photo montage to the underside of the car as a map, while I was working under it. It worked out well.

All the lines and now replumbed exactly as they were originally, but with new rubber, of course. There is no way I would ever reuse original emissions and fuel lines. They may look good on the outside with their original date codes and paint stripes, but they were hard as rock and just waiting for the exact moment to crack and leak. No sense risking your car (and life) to be THAT original.

Oh, and yes I remembered to install the fuel guage sender lead and ground before installing the tank (the second time). https://www.yenko.net/ubbthreads/images/graemlins/no.gif

http://i20.photobucket.com/albums/b2...8/P5040009.jpg

http://i20.photobucket.com/albums/b2...8/P5040007.jpg

Re: 72 T/A progess


I had an hour to spare this evening and installed the Gardner exhaust system on the car. It is amazingly refreshing to come across a reproduction part that does more than you would expect. It bolts up with no problems: everything slides into place and fits perfectly. Even the exhaust clamps slide into their saddles like they were made for each other. When I say it took about an hour I wasn't being sarcastic, the system is that good. I took a little longer due to time spent admiring my own work. https://www.yenko.net/ubbthreads/imag...mlins/grin.gif

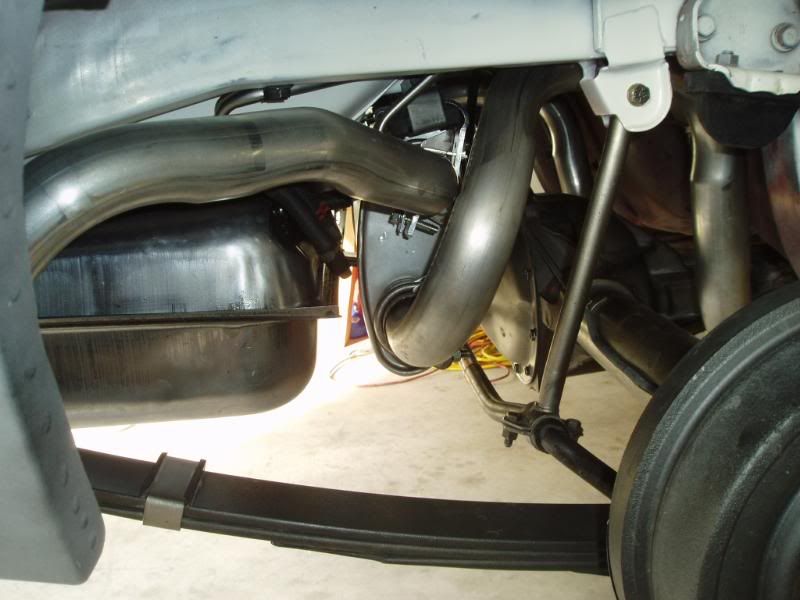

Passenger side:

http://i20.photobucket.com/albums/b216/nk15268/exh2.jpg

http://i20.photobucket.com/albums/b2...268/exh5-1.jpg

Driver's side:


http://i20.photobucket.com/albums/b2...268/exh3-1.jpg

http://i20.photobucket.com/albums/b2...268/exh4-1.jpg

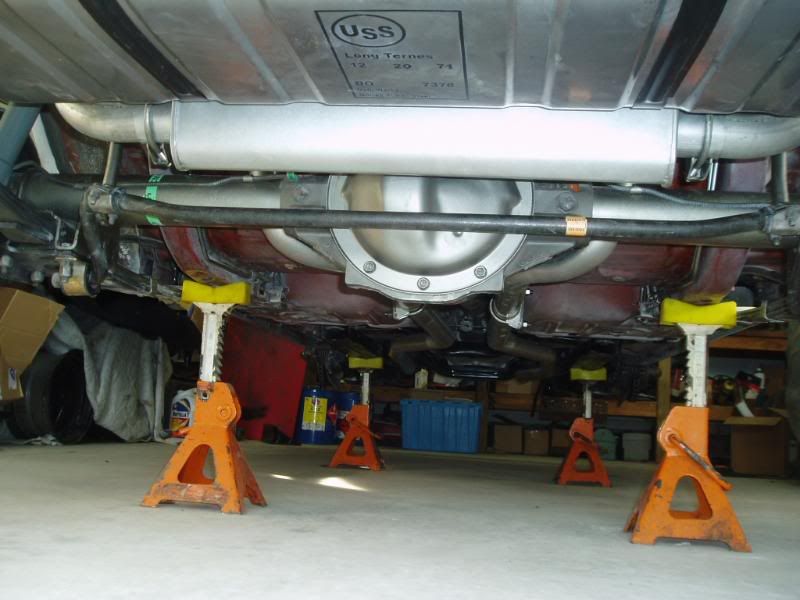

Ant's eye view:

http://i20.photobucket.com/albums/b216/nk15268/exh7.jpg

Re: 72 T/A progess


I ended up using my original rubber insulated muffler and tailpipe hangers, so I now have the new set of Gardner hangers available in case anyone needs them for a 2nd gen F-Body.


The tail pipe hangers. The Gardner hanger is on the left - there are two of them in a set)


http://i20.photobucket.com/albums/b2...8/P5150010.jpg

The muffler hangers: The Gardner hanger is on the right. (also two of these in the set)

http://i20.photobucket.com/albums/b2...8/P5150001.jpg

Re: 72 T/A progess


Steve, you have a PM.

Paul

Re: 72 T/A progess


I threw a couple gallons of gas in the tank today and cranked her up. She started on the first turn!

Here's how the Gardner exhaust sounds on a 455HO. https://www.yenko.net/ubbthreads/imag...ns/burnout.gif

http://i287.photobucket.com/albums/l...h_S7001338.jpg

Re: 72 T/A progess


Beautimus Mac!!!!!!!! Congrats! https://www.yenko.net/ubbthreads/imag...lins/beers.gif
