Re: 70 LS6, Monaco orange, original and unrestored

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: slimsls6</div><div class="ubbcode-body">Leed's plant. not sure on the process for the special paint cars. Maybe someone that knows will chime in. </div></div>

Special paint process (for Pontiac branded vehicles) as recorded by author/artist/historian Eric White:

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: gtoric</div><div class="ubbcode-body">
The procedure for getting a special-paint car ordered went like this:

• The customer (or dealership) determines what color is desired.

• An "All Series Special Equipment" order form is filled out.

The information required for a special-paint-request on this form is:
• Lower Color Paint No.
• Upper Color Paint No.
• Make of Car & Year Paint Used.
I am guessing that obtaining the correct paint no. would be left up to the ordering salesman/dealership paint department.

In the '60s and early '70s, before colored plastic/fiberglass trim parts became common, any color paint could be ordered, as long as the dealer could supply the paint formula no. on the S.O. form. After the mid-'70s when the crash-bumper fillers became common place, special order colors were phased out except for large fleet orders.

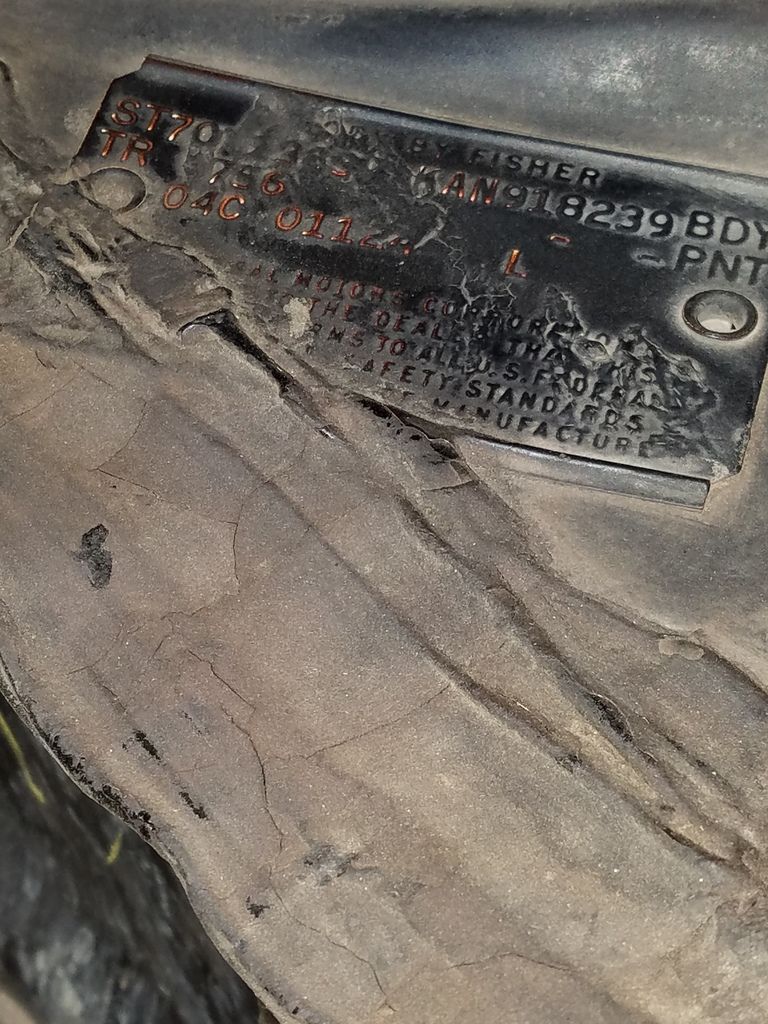

Several codes were used on the Fisher Body trim tag to indicate a special-order paint. Codes varied between the years and between Fisher Body plants. Some of the codes used were:
1= Standard GM paint, not a Pontiac color
2= Special Pontiac color. Sometimes offered a half-year "springtime" color.
3= Cadillac FireFrost color. This paint was not normally allowed on a Pontiac build because of the special processes required to apply this type of paint.
4= Body in primer
SPEC or ** would indicate a paint color from a source outside GM (Ford, Chryco, AMC, John Deere, International Harvester, etc.) Colors could also be ordered to match school or business colors. As long as a formula no. could be identified by the dealership just about any color hue could be specified.

• The order was then routed through the Pontiac Zone office, which then routed it on to the Central Office.

• Central Office then entered a request to the paint supplier, usually PPG/Ditzler, for the appropriate paint.

• The paint supplier shipped a quantity of paint to the appropriate assembly plant.

• The special-order build was scheduled and coordinated between the Fisher plant and GMAD or Pontiac assembly.

• Build was delivered to dealership with a quart of touch up paint in trunk.
</div></div>

Re: 70 LS6, Monaco orange, original and unrestored

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: slimsls6</div><div class="ubbcode-body">This car looks like the body was painted over Gobi Beige on the Fisher Body side while the front clip was painted on the body shop side over what looks like the e-coat.</div></div>

This statement is of interest to me.

I had conversation with Mike Nixon relative to a '66 Grand Prix that he was restoring, which appeared to be factory Iris Mist painted over Tiger Gold.

In my years with GM assembly I never recall taking a (previously painted) body and respraying it a different color for use in a different build.

K

Re: 70 LS6, Monaco orange, original and unrestored

Some years ago, I had a '72 GS Convertible that was a "special paint" car. Definitely painted after assembly; front clip was NOT a perfect color match and had overspray everywhere, but THIS WAS ORIGINAL PAINT. Car had 31 options and completely filled the window sticker. Was painted a Riviera color and code was on trim tag. I sold car to Skip L.

Re: 70 LS6, Monaco orange, original and unrestored

... Very nice .... Love that Chevelle [img]<<GRAEMLIN_URL>>/biggthumpup.gif[/img]

Re: 70 LS6, Monaco orange, original and unrestored

Is this car for sale???

Re: 70 LS6, Monaco orange, original and unrestored

<div class="ubbcode-block"><div class="ubbcode-header">Originally Posted By: KenMaisano</div><div class="ubbcode-body">Is this car for sale??? </div></div>

no, have no plans on selling the car at this time

Jim

Re: 70 LS6, Monaco orange, original and unrestored

Oh wow.. Thanks for sharing
