Re: TCS plumbing/wiring photos please


Sam....better make sure the car you look at doesn't have NA9 CA emissions...pretty sure the TCS hook up is different on a NA9 car.

Re: TCS plumbing/wiring photos please

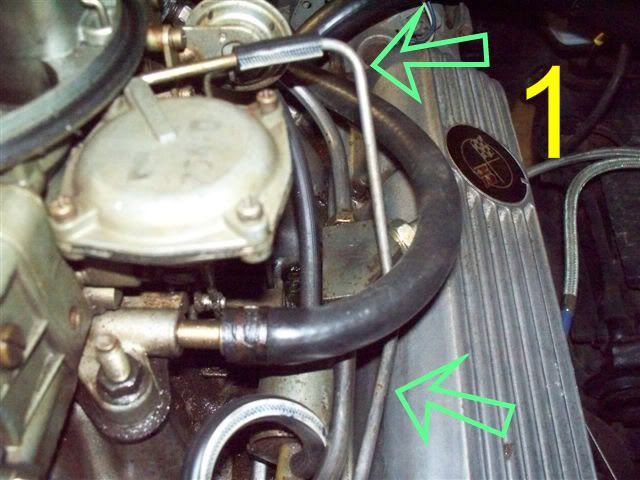

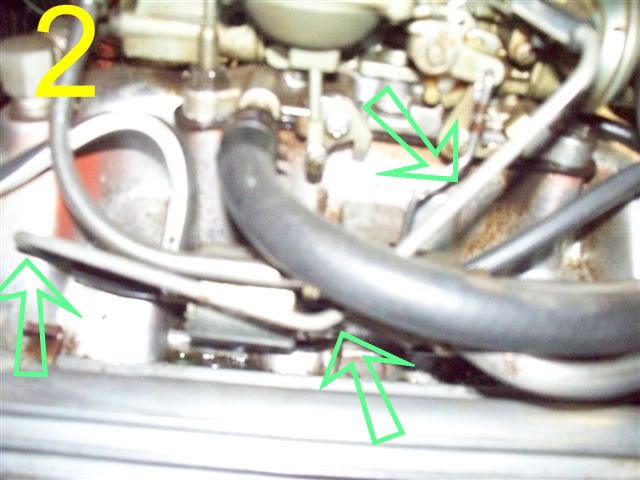

Schonye sent these photos to me. Is this a 4 speed Schonye? In comparing these photos to Charley's website (i was not able to copy his photos), Schonye's photos (1 & 2) have a hard vacuum line as indicated whereas Charley's same line is an all rubber vacuum line.

http://img.photobucket.com/albums/v6.../TCSdeuce1.jpg
http://img.photobucket.com/albums/v6.../TCSdeuce2.jpg


Last photo is one I took off the web (looks like Chuck's "camarosrus" handiwork? This same line is all rubber like Charley's.

http://img.photobucket.com/albums/v6...nts/TCSLT1.jpg

Re: TCS plumbing/wiring photos please


[ QUOTE ]
Sam....better make sure the car you look at doesn't have NA9 CA emissions...pretty sure the TCS hook up is different on a NA9 car.

[/ QUOTE ]

Is Charley's CA emissions?

Re: TCS plumbing/wiring photos please


His was sold brand new in Il.,so no.

Very early assembled 1970 Chevelles/Elcaminos/Monte C. used all rubber TCS vacuum lines,while later had partial rubber beginnings w/metal in between do to safety issues.
I don't know what assembly practices 1970 Novas/Camaros followed.

Re: TCS plumbing/wiring photos please

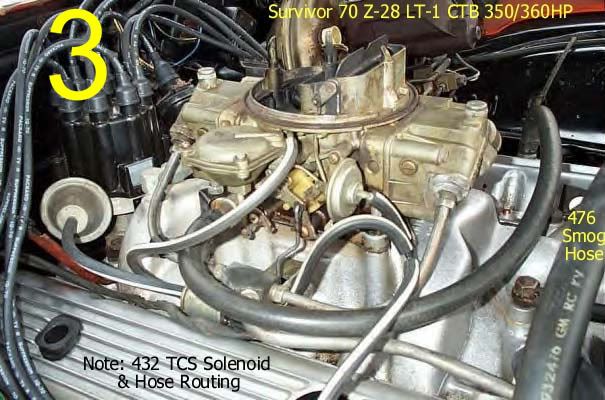

Number 3 is Jack Seymour's car. A good reference as well, and a 4 speed.

Re: TCS plumbing/wiring photos please


When was Jack's Z made? Can we assume that all Deuces, because they were produced 05D, 06A, & 06B (i.e. made late in the year), would have the metal tubing (safety fix)?

Thanks.

Re: TCS plumbing/wiring photos please


Mine. I think it's knd of a survivor. https://www.yenko.net/ubbthreads/imag...mlins/wink.gif

Re: TCS plumbing/wiring photos please


While we are discussing the top of the intake manifold, do all Deuces ('70 Z28/LT1 Corvette) have a FUEL LINE SUPPORT BRACKET for the rear fuel line to the Holley as seen in photo #3 above? I noticed Schonye's photos (1 & 2) do not have one.

Re: TCS plumbing/wiring photos please


My car is a 04B Norwood car. M22 4:10 4 speed.

Re: TCS plumbing/wiring photos please


Thanks for chiming in Jack. Do you feel your TCS vacuum line plumbing (i.e. rubber hoses the entire circuit) is original to your 2nd week in April built Z? If so it would appear that the metal tubing "fix" came some time after the 2nd week of April but prior to the last week in May.

Also, is your fuel line support bracket painted black? What sheen?

Thanks,
Sam
